74890 (XS 4850) - Toro 48" Titan Zero-Turn Mower (SN: 412300000 - 999999999) Electrical Assembly Parts Diagram

48" Titan Zero-Turn Mower

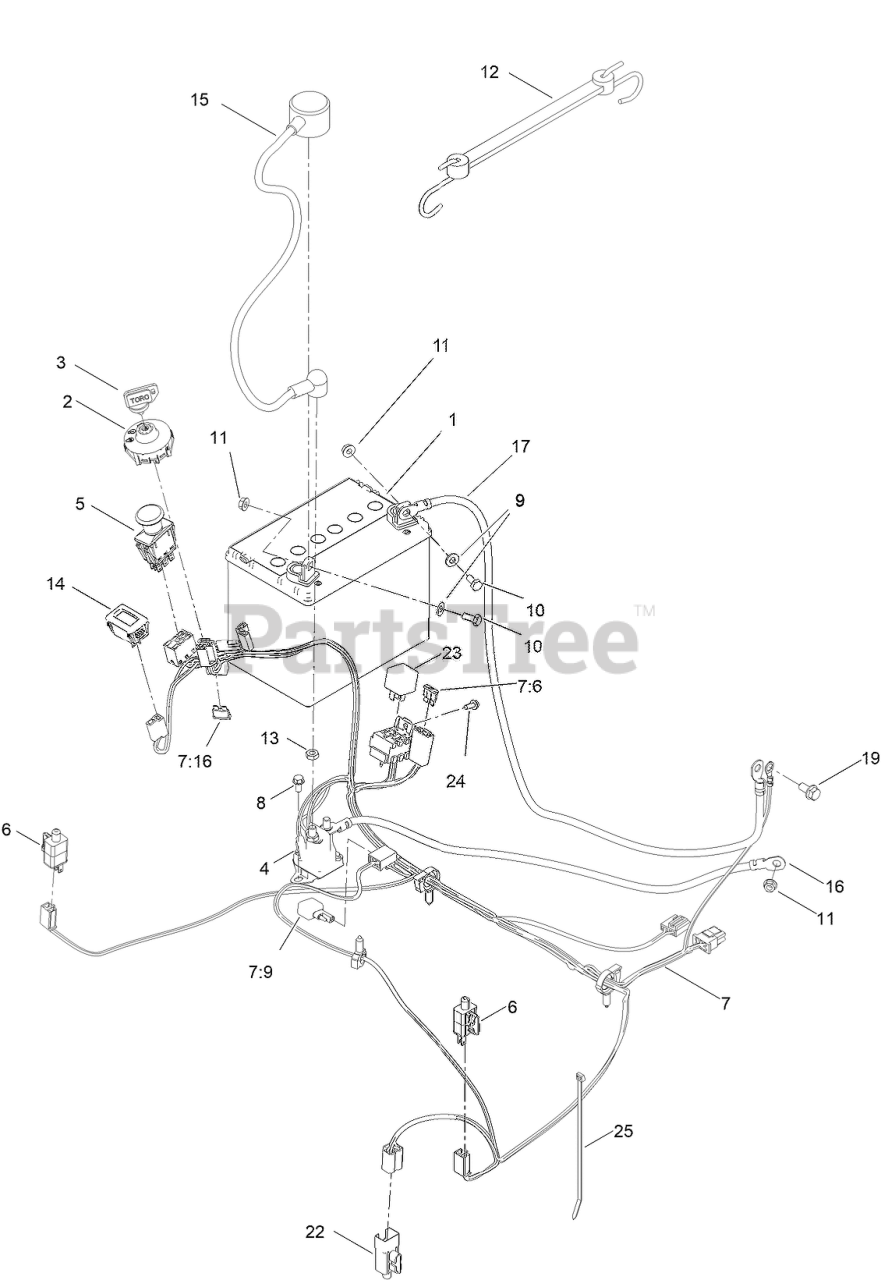

Electrical Assembly Parts Diagram

  • Title

1

Toro 104-8162

BATTERY-DRY

$

$

Not available

2

Toro 137-4100

SWITCH-IGNITION

$35.99

$

In Stock, Qty 20+

0

3

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

4

Toro 117-1197

SOLENOID

$45.99

$

In Stock, Qty 20+

0

5

Toro 103-5221

SWITCH-PTO

$58.99

$

In Stock, Qty 20+

0

6

Toro 110-6765

SWITCH

$13.99

$

In Stock, Qty 11

0

7

Toro 137-7002

HARNESS-WIRE

$221.99

$

Usually ships in 3-6 days

0

7:6

Toro 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 8

0

7:9

Toro 100-4918

DIODE

$21.99

$

In Stock, only 1 left!

0

7:16

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

8

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

9

Toro 120-9679

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

10

Toro 137-3041

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

11

Toro 139-2575

NUT-HF

$1.49

$

Usually ships in 3-6 days

0

12

Toro 104-2466

HOLDDOWN-BATTERY

$23.99

$

In Stock, Qty 6

0

13

Toro 139-2580

NUT-HJ

$1.49

$

Usually ships in 3-6 days

0

14

Toro 120-2244

HOURMETER

$69.99

$

In Stock, only 1 left!

0

15

Toro 115-3864

CABLE-BATTERY, POSITIVE

$30.99

$

In Stock, only 1 left!

0

16

Toro 144-5276

CABLE-BATTERY, RD ASM

$29.99

$

Usually ships in 3-6 days

0

17

Toro 117-7240

CABLE-BATTERY, NEGATIVE

$23.99

$

Usually ships in 3-6 days

0

19

Toro 139-2593

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

22

Toro 99-7408

SWITCH-REVERSE

$28.99

$

In Stock, only 1 left!

0

23

Toro 98-7249

RELAY

$22.99

$

In Stock, only 3 left!

0

24

Toro 139-1713

SCREW-TAPTITE

$1.49

$

Usually ships in 3-6 days

0

25

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0
