74889 (XS 5450) - Toro 54" Titan Zero-Turn Mower (SN: 411455455 - 999999999) Traction Drive Assembly Parts Diagram

54" Titan Zero-Turn Mower

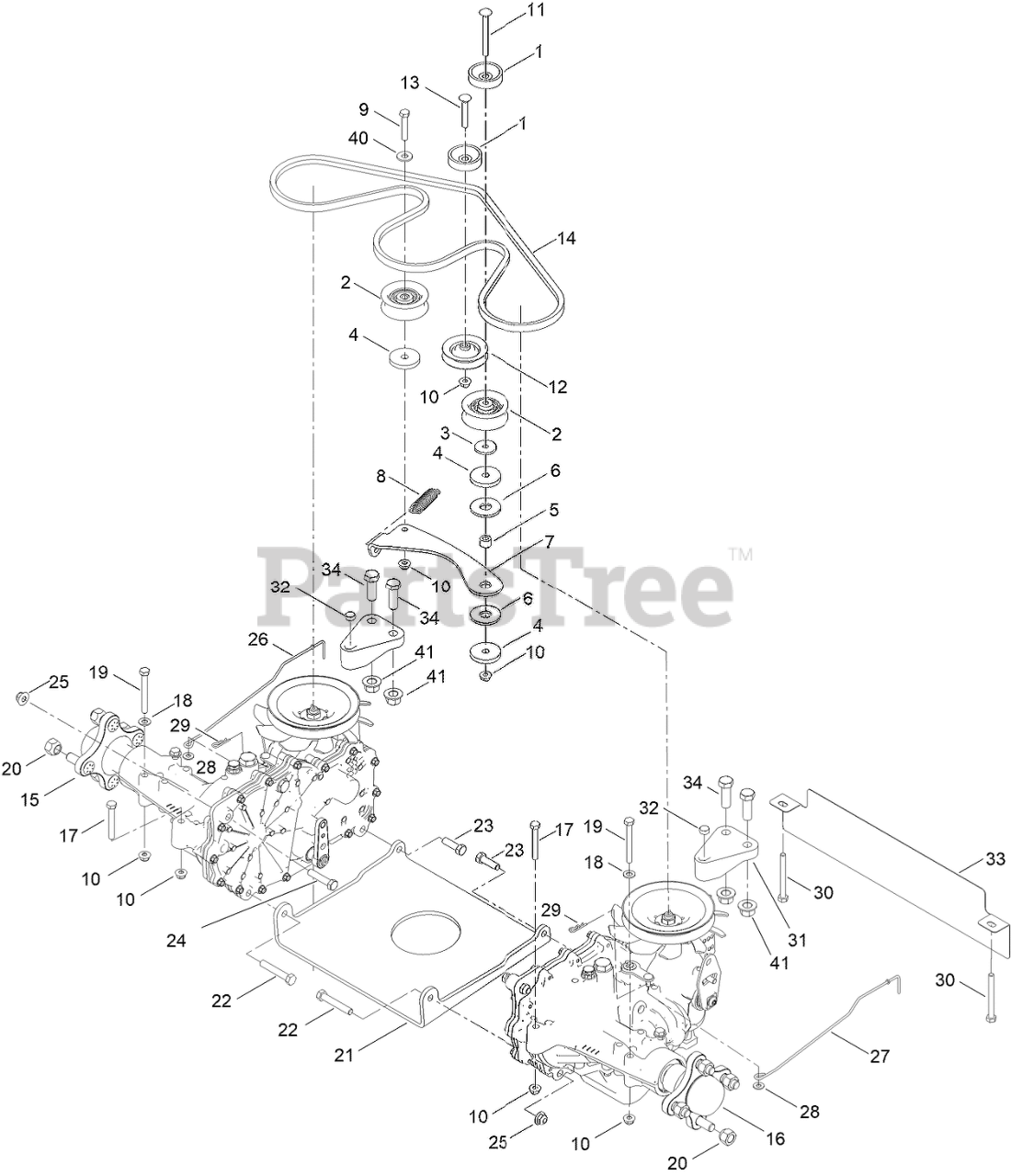

Traction Drive Assembly Parts Diagram

  • Title
1

Toro 119-3353

SPACER

$11.99

$

Usually ships in 3-6 days

0

2

Toro 138-7597

PULLEY-IDLER, FLAT

$15.99

$

In Stock, only 3 left!

0

3

Toro 139-1704

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

4

Toro 139-5802

WASHER-PLAIN

$5.49

$

Usually ships in 3-6 days

0

5

Toro 138-7209

BUSHING

$1.49

$

Usually ships in 3-6 days

0

6

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 11

0

7

Toro 133-4423

ARM-IDLER

$17.99

$

Usually ships in 3-6 days

0

8

Toro 137-7040

SPRING-PEDAL, RETURN

$5.49

$

In Stock, Qty 9

0

9

Toro 139-1719

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

10

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 119-9784

SCREW-CARR

$2.49

$

Usually ships in 3-6 days

0

12

Toro 119-8822

PULLEY-IDLER

$25.99

$

In Stock, Qty 6

0

13

Toro 139-2625

SCREW-CARR

$2.99

$

Usually ships in 3-6 days

0

14

Toro 133-4371

V-BELT

$35.99

$

In Stock, only 3 left!

0

15

Toro 140-8310

RH HYDRO TRANSMISSION ASM
(Superseded to 147-2861)

$1402.99

$

Usually ships in 3-6 days

0

16

Toro 140-8311

LH HYDRO TRANSMISSION ASM
(Superseded to 147-2860)

$1402.99

$

Usually ships in 3-6 days

0

17

Toro 120-9738

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 120-9683

WASHER-PLAIN

$2.99

$

Usually ships in 3-6 days

0

19

Toro 139-2583

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

20

Toro 139-2564

NUT-LUG

$1.49

$

Usually ships in 3-6 days

0

21

Toro 130-0718-01

PLATE-CROSS, HYDRO

$71.99

$

Usually ships in 3-6 days

0

22

Toro 139-2589

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

23

Toro 139-2601

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

24

Toro 139-2602

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

25

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0

26

Toro 139-5855

ROD-BYPASS, RH

$9.49

$

Usually ships in 3-6 days

0

27

Toro 139-5854

ROD-BYPASS, LH

$9.49

$

Usually ships in 3-6 days

0

28

Toro 120-9679

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

29

Toro 137-3083

PIN-HAIR

$1.49

$

In Stock, Qty 16

0

30

Toro 139-2584

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

31

Toro 133-1247

SUPPORT-HYDRO, REAR

$30.99

$

Usually ships in 3-6 days

0

32

Toro 119-4038

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

33

Toro 131-1098-03

GUARD REAR, WIDE

$18.99

$

Usually ships in 3-6 days

0

34

Toro 139-2631

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

40

Toro 139-1723

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

41

Toro 139-1689

NUT-HF

$2.99

$

Usually ships in 3-6 days

0
