74889 (XS 5450) - Toro 54" Titan Zero-Turn Mower (SN: 407000000 - 409239999) 54 Inch Deck Assembly Parts Diagram

54" Titan Zero-Turn Mower

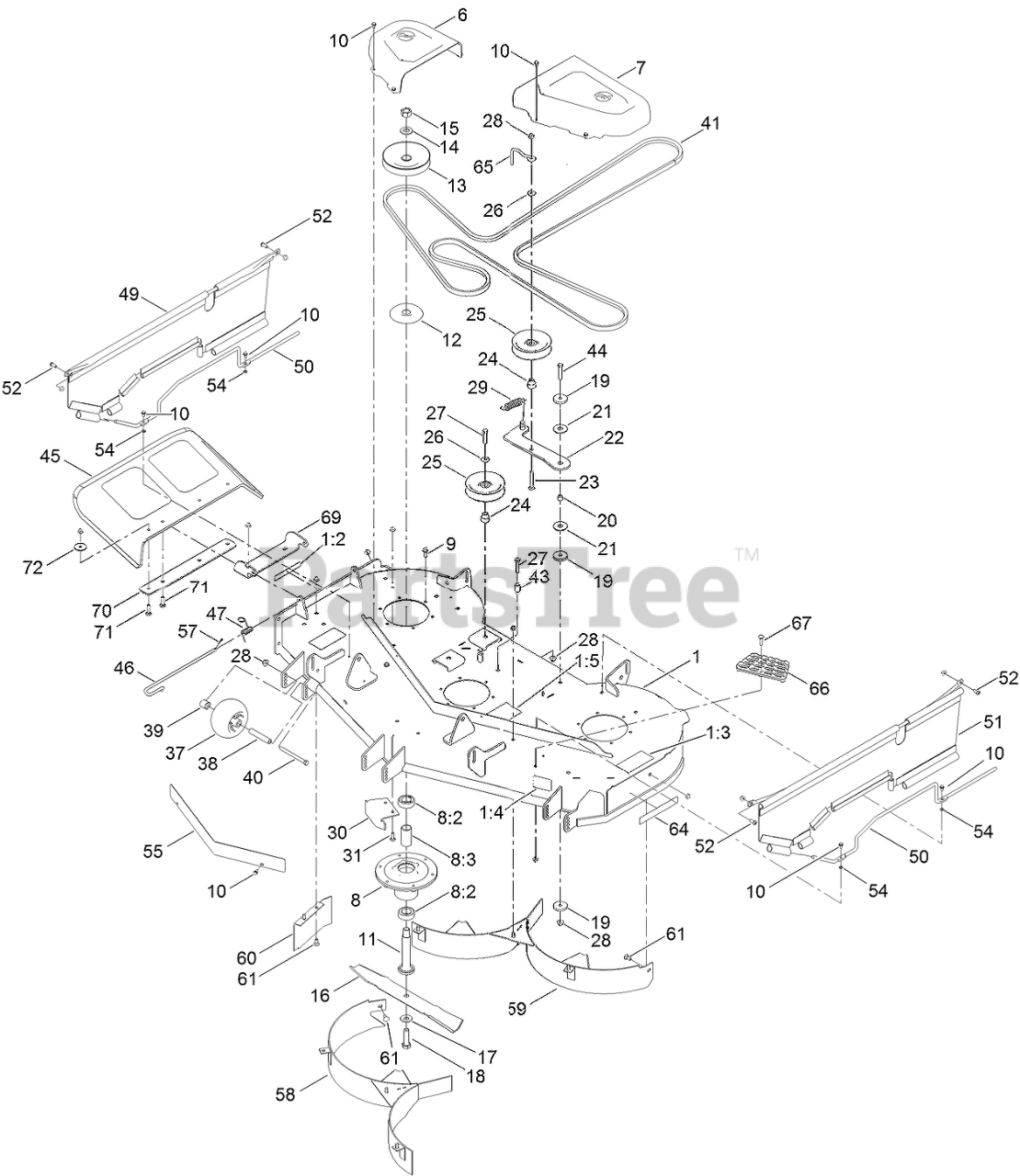

54 Inch Deck Assembly Parts Diagram

  • Title

1

Toro 140-0353

54in DECK ASM

$1550.99

$

Usually ships in 3-6 days

0

1:2

Toro 130-0731

DECAL-DANGER

$3.99

$

Usually ships in 3-6 days

0

1:3

Toro 132-0872

DECAL-DANGER, DECK

$2.99

$

In Stock, Qty 12

0

1:4

Toro 130-0765

DECAL-SCALP, ANTI

$2.99

$

Usually ships in 3-6 days

0

1:5

Toro 117-1194

DECAL-ROUTING, BELT

$10.99

$

Usually ships in 3-6 days

0

6

Toro 133-9283

COVER-BELT, RH

$19.99

$

In Stock, only 1 left!

0

7

Toro 133-9282

COVER-BELT, LH

$22.99

$

Usually ships in 3-6 days

0

8

Toro 139-2357

SPINDLE ASM

$102.99

$

In Stock, only 2 left!

0

8:2

Toro 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 10

0

8:3

Toro 138-7220

SPACER-BEARING

$7.99

$

In Stock, only 2 left!

0

9

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

10

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

11

Toro 115-2642

SHAFT-SPINDLE

$52.99

$

In Stock, only 2 left!

0

12

Toro 138-7221

SHIELD-BEARING

$5.49

$

Usually ships in 3-6 days

0

13

Toro 139-7455

PULLEY

$22.99

$

In Stock, only 1 left!

0

14

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 6

0

15

Toro 139-2579

NUT-HEX

$2.99

$

Usually ships in 3-6 days

0

16

Toro 115-4999-03

BLADE-MULCH, 18.75 INCH

$33.99

$

Usually ships in 3-6 days

0

17

Toro 125-1736

WASHER-BELLEVILLE

$4.49

$

In Stock, only 3 left!

0

18

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

19

Toro 139-5802

WASHER-PLAIN

$5.49

$

Usually ships in 3-6 days

0

20

Toro 138-7225

SPACER

$5.49

$

Usually ships in 3-6 days

0

21

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 11

0

22

Toro 138-7226

IDLER ARM ASM

$47.99

$

Usually ships in 3-6 days

0

23

Toro 139-2591

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

24

Toro 138-7227

BUSHING-IDLER

$2.99

$

In Stock, only 2 left!

0

25

Toro 132-4718

PULLEY-IDLER, FLAT

$33.99

$

In Stock, Qty 16

0

26

Toro 139-2632

WASHER-HARDENED

$2.99

$

Usually ships in 3-6 days

0

27

Toro 139-2602

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

28

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0

29

Toro 138-7228

SPRING-EXTENSION

$5.49

$

In Stock, Qty 5

0

30

Toro 115-9653-03

BAFFLE-CUTOFF

$25.99

$

Usually ships in 3-6 days

0

31

Toro 139-2587

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

37

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

38

Toro 138-7229

TUBE-SPANNER

$6.49

$

In Stock, only 4 left!

0

39

Toro 104-0892

SPACER-AXLE, REAR

$5.49

$

Usually ships in 3-6 days

0

40

Toro 139-2592

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

41

Toro 133-7076

V-BELT

$140.99

$

In Stock, only 1 left!

0

43

Toro 138-7230

SPACER-FENDER

$5.49

$

Usually ships in 3-6 days

0

44

Toro HDW07736

HHCS 3/8-16 X 2, GR5, CZ

$1.49

$

Usually ships in 3-6 days

0

45

Toro 117-1270

DEFLECTOR

$78.99

$

In Stock, only 1 left!

0

46

Toro 138-7231

PIN-CHUTE

$9.49

$

Usually ships in 3-6 days

0

47

Toro 138-7232

SPRING-TORSION

$2.99

$

In Stock, only 2 left!

0

49

Toro 133-9261

ROD SUPPORT, UPPER

$35.99

$

Usually ships in 3-6 days

0

50

Toro 136-4221

ROD SUPPORT, LOWER

$35.99

$

Usually ships in 3-6 days

0

51

Toro 136-4234

SIDE GUARD ASM

$29.99

$

Usually ships in 3-6 days

0

52

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

54

Toro 1-803037

NUT-RETAINING

$1.49

$

Usually ships in 3-6 days

0

55

Toro 131-3901-03

SHIELD-FRONT

$22.99

$

Usually ships in 3-6 days

0

57

Toro 139-2614

PIN-COTTER

$1.49

$

Usually ships in 3-6 days

0

58

Toro 136-4206-03

BAFFLE-RECYCLER

$223.99

$

Usually ships in 3-6 days

0

59

Toro 115-9674-03

BAFFLE-RECYCLER, LH

$384.99

$

Usually ships in 3-6 days

0

60

Toro 117-7213-03

GUARD-BAFFLE

$33.99

$

In Stock, only 1 left!

0

61

Toro 137-3061

BOLT-CARR

$0.99

$

In Stock, Qty 20+

0

64

Toro 119-2368

DECAL-RECYCLER

$6.49

$

In Stock, only 2 left!

0

65

Toro 136-5615

GUIDE-BELT, IDLER

$6.49

$

In Stock, only 1 left!

0

66

Toro 126-4781-03

STEP-DECK

$26.99

$

Usually ships in 3-6 days

0

67

Toro 139-1702

BOLT-CARRIAGE

$1.49

$

In Stock, only 2 left!

0

69

Toro 114-1648-03

BRACKET-DEFLECTOR, UPPER

$60.99

$

Usually ships in 3-6 days

0

70

Toro 115-5048-03

PLATE-DEFLECTOR

$44.99

$

Usually ships in 3-6 days

0

71

Toro 139-1702

BOLT-CARRIAGE

$1.49

$

In Stock, only 2 left!

0

72

Toro 115-1151

WASHER-FLAT

$3.49

$

Usually ships in 3-6 days

0
