74877 (X 5450) - Toro 54" Titan Zero-Turn Mower (SN: 400000000 - 409233856) Engine and Muffler Assembly Parts Diagram

54" Titan Zero-Turn Mower

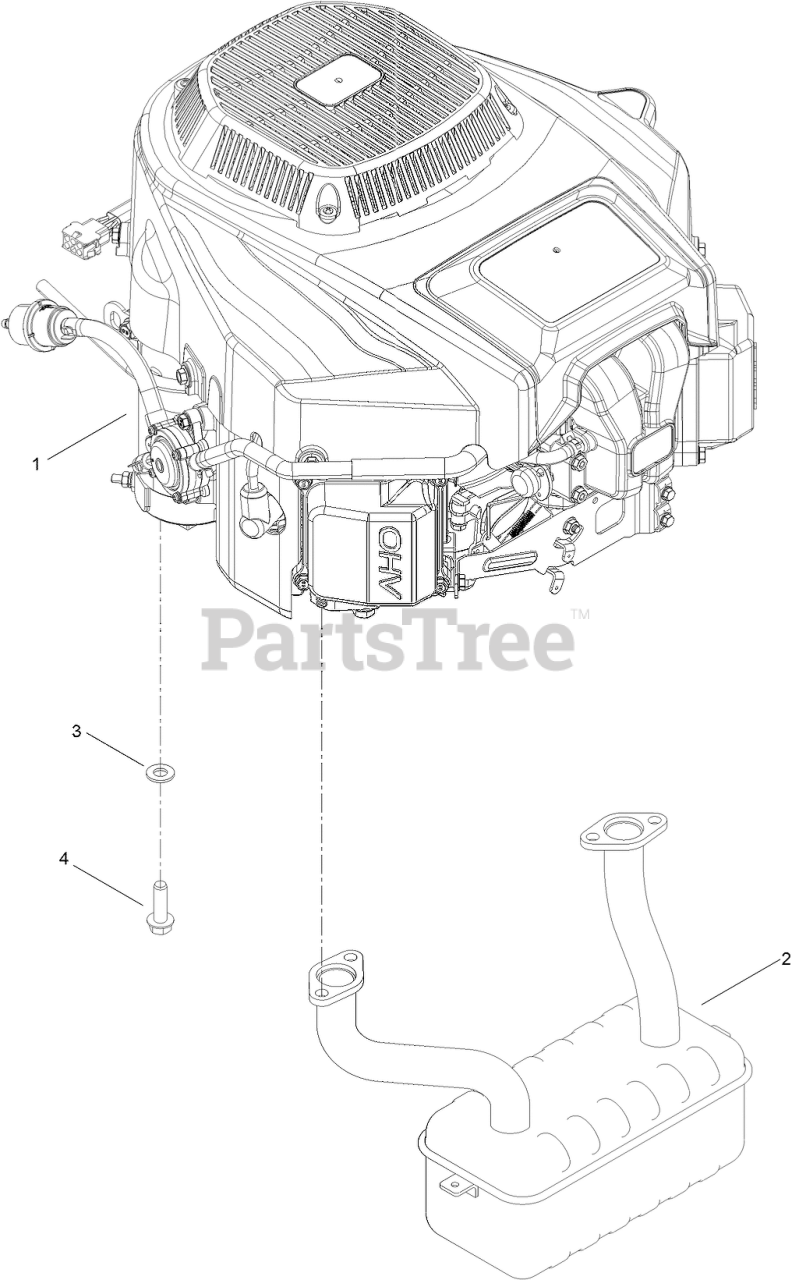

Engine and Muffler Assembly Parts Diagram

  • Title
1

Toro 139-0603

ENGINE-2P77F

$2605.99

$

Usually ships in 3-6 days

0

2

Toro 130-6851

MUFFLER

$133.99

$

In Stock, only 1 left!

0

3

Toro 115-1166

WASHER-FLAT

$4.99

$

In Stock, Qty 9

0

4

Toro 139-2576

SCREW-HWH, THD ROLL

$2.99

$

Usually ships in 3-6 days

0

99

Toro 120-4317

GASKET-EXHAUST

Note: Not illustrated

$5.49

$

In Stock, only 3 left!

0
