74875 (X 4850) - Toro 48" Titan Zero-Turn Mower (SN: 400000000 - 411899999) Frame Assembly Parts Diagram

48" Titan Zero-Turn Mower

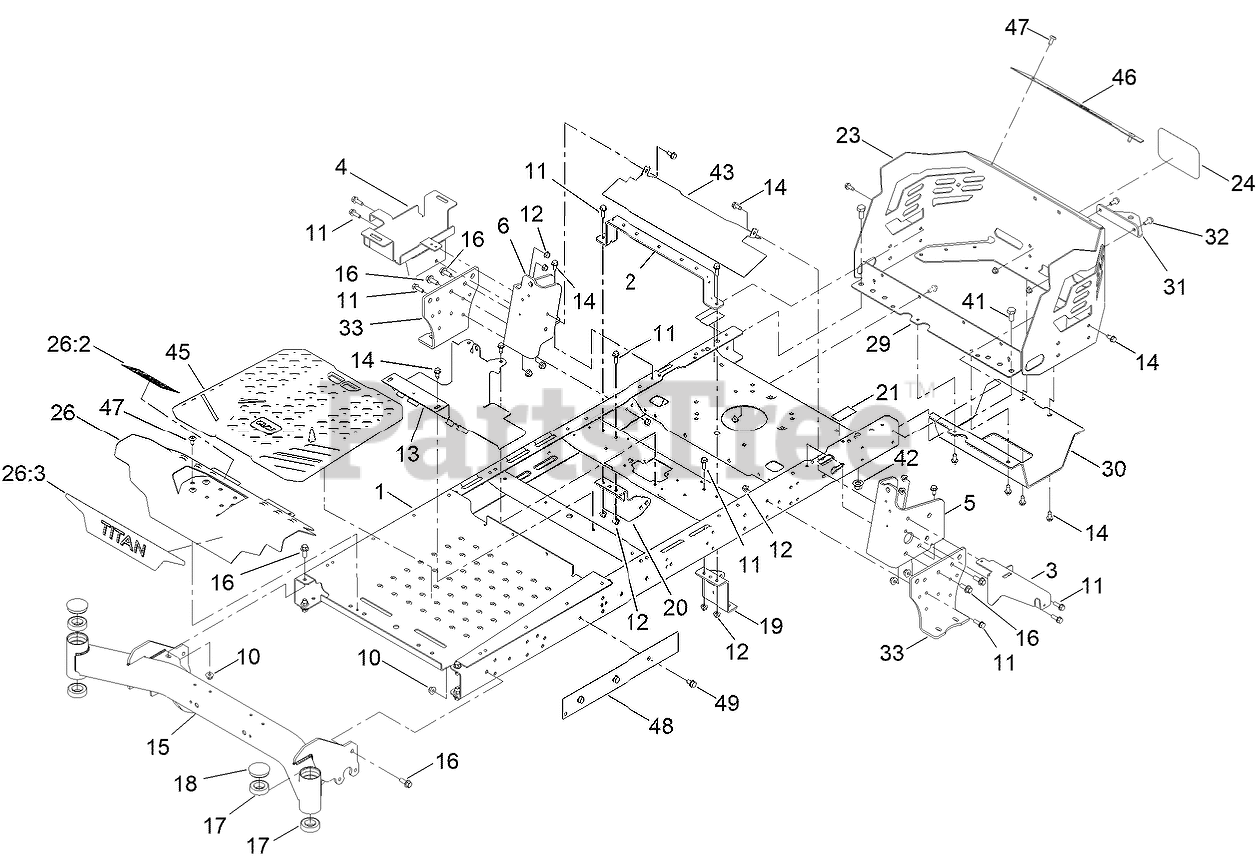

Frame Assembly Parts Diagram

  • Title
1

Toro 133-1191-01

FRAME ASM

$512.99

$

Usually ships in 3-6 days

0

2

Toro 135-0687-03

BRACE-SEAT, REAR (WIDE)

$20.99

$

Usually ships in 3-6 days

0

3

Toro 133-7051-03

BRACKET-SUPPORT, POD (LH)

$29.99

$

Usually ships in 3-6 days

0

4

Toro 139-3570

TRAY-BATTERY

$51.99

$

Usually ships in 3-6 days

0

5

Toro 137-5068-01

BRACKET-MOUNTING, LH

$67.99

$

Usually ships in 3-6 days

0

6

Toro 137-5069-01

BRACKET-MOUNTING, RH

$67.99

$

Usually ships in 3-6 days

0

10

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0

11

Toro 139-2596

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

12

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Toro 133-4485-03

BRACKET-MOUNT

$71.99

$

Usually ships in 3-6 days

0

14

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

15

Toro 140-2706-01

FRONT AXLE ASM

$453.99

$

Usually ships in 3-6 days

0

16

Toro 139-2597

SCREW-HHF

$1.49

$

In Stock, Qty 6

0

17

Toro 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

18

Toro 138-7200

CAP-GREASE

$5.49

$

In Stock, only 1 left!

0

19

Toro 139-3211-01

MOUNT-HYDRO, FRONT (LEFT)

$14.99

$

In Stock, only 1 left!

0

20

Toro 137-7020-01

MOUNT-HYDRO, FRONT (RIGHT)

$15.99

$

Usually ships in 3-6 days

0

21

Toro 121-2989

DECAL-BYPASS

$5.49

$

In Stock, only 1 left!

0

23

Toro 140-1031-03

GUARD-ENGINE

$296.99

$

Usually ships in 3-6 days

0

24

Toro 99-4693

DECAL

$25.99

$

In Stock, only 1 left!

0

26

Toro 140-3485

FOOTREST-TITAN

$147.99

$

Usually ships in 3-6 days

0

26:2

Toro 140-3451

DECAL-DANGER

$5.49

$

Usually ships in 3-6 days

0

26:3

Toro 139-7469

DECAL-TITAN

$9.49

$

Usually ships in 3-6 days

0

29

Toro 137-7016-01

CROSSMEMBER-REAR, WIDE

$29.99

$

Usually ships in 3-6 days

0

30

Toro 133-4429-03

GUARD-MUFFLER

$59.99

$

Usually ships in 3-6 days

0

31

Toro 117-1232-03

BRACKET-HITCH

$29.99

$

In Stock, only 1 left!

0

32

Toro 139-2598

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

33

Toro 133-1201-03

MOUNT-HYDRO

$30.99

$

Usually ships in 3-6 days

0

41

Toro 139-2628

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

42

Toro 139-1689

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

43

$39.99

$

Usually ships in 3-6 days

0

45

Toro 139-7487

FLOOR MAT

$78.99

$

Usually ships in 3-6 days

0

46

Toro 140-1032-01

TRIM-GUARD, ENGINE

$26.99

$

Usually ships in 3-6 days

0

47

$1.49

$

In Stock, Qty 6

0

48

Toro 140-0366-01

PLATE-FRAME

$14.99

$

Usually ships in 3-6 days

0

49

Toro 32144-69

SCREW-HWHTF

$2.49

$

Usually ships in 3-6 days

0
