74872 (MX 5480) - Toro 54" Titan Zero-Turn Mower (SN: 313000001 - 313999999) (2013) SEAT ASSEMBLY Parts Diagram

54" Titan Zero-Turn Mower

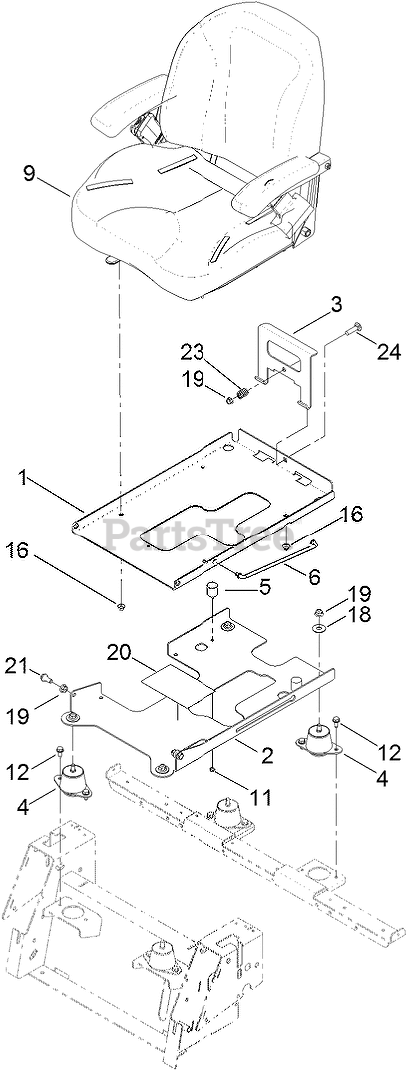

SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 125-1702-03

PLATE-PAN, SEAT

$

$

Not available

2

Toro 125-1703-03

PLATE-BASE

$110.99

$

Usually ships in 3-6 days

0

3

Toro 125-1747-03

LATCH SEAT

$

$

Not available

4

Toro 109-9034

ISOLATOR-SEAT

$68.99

$

In Stock, Qty 6

0

5

Toro 106-5891

Bumper

$

$

Not available

6

Toro 125-1796

ROD-PROP

$

$

Not available

9

Toro 121-5659

SEAT ASM

$1028.99

$

Usually ships in 3-6 days

0

11

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

18

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

19

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

20

Toro 115-9630

DECAL-MAINTENANCE

$9.49

$

Usually ships in 3-6 days

0

21

Toro 94-7582

BOLT-SHOULDER

$3.49

$

In Stock, only 2 left!

0

23

Toro 107-3017

SPRING-COMPRESSION

$2.99

$

In Stock, only 1 left!

0

24

Toro 3231-26

SCREW-CARR

$5.49

$

In Stock, only 3 left!

0
