74872 (MX 5480) - Toro 54" Titan Zero-Turn Mower (SN: 312000001 - 312999999) (2012) SEAT MOUNT ASSEMBLY Parts Diagram

54" Titan Zero-Turn Mower

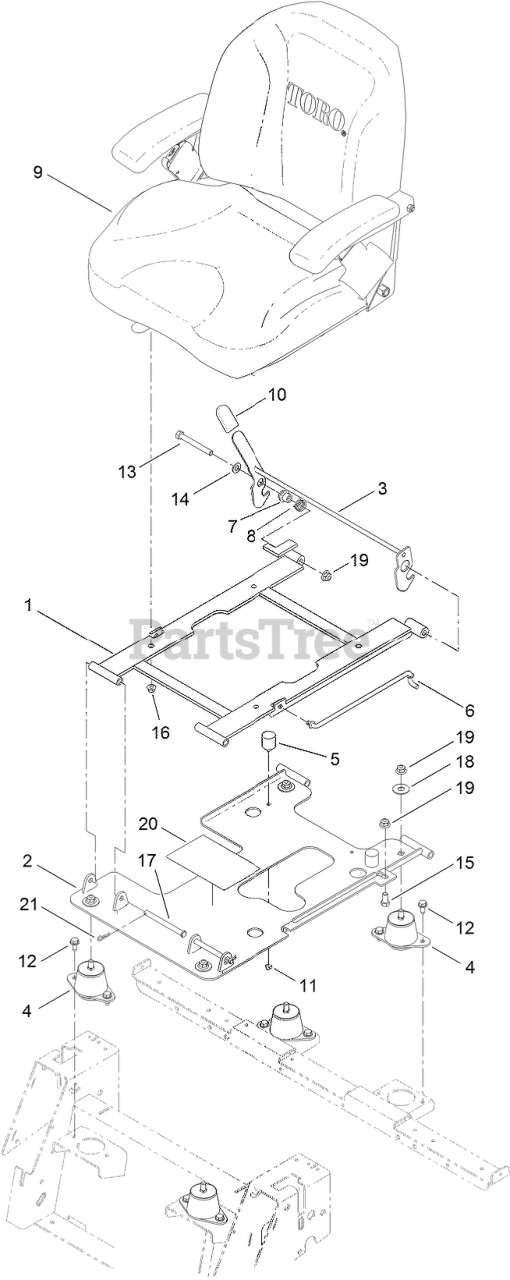

SEAT MOUNT ASSEMBLY Parts Diagram

  • Title

1

Toro 117-7441-03

SEAT PAN ASM

$

$

Not available

2

Toro 117-7449-03

SEAT BASE ASM

$260.99

$

Usually ships in 3-6 days

0

3

Toro 119-8918

LATCH ASM

$

$

Not available

4

Toro 109-9034

ISOLATOR-SEAT

$68.99

$

In Stock, Qty 6

0

5

Toro 106-5891

Bumper

$

$

Not available

6

Toro 116-0070

ROD-PROP

$21.99

$

Usually ships in 3-6 days

0

7

Toro 107-0075

BUSHING-LATCH, SEAT

$5.49

$

Usually ships in 3-6 days

0

8

Toro 110-5831

SPRING-TORSION

$10.99

$

Usually ships in 3-6 days

0

9

Toro 121-5659

SEAT ASM

$1028.99

$

Usually ships in 3-6 days

0

10

Toro 103-4434

GRIP-LEVER

$2.99

$

In Stock, Qty 5

0

11

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

13

Toro 323-20

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

15

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

17

Toro 100-1413

PIN-CLEVIS

$9.49

$

Usually ships in 3-6 days

0

18

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

19

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

20

Toro 115-9630

DECAL-MAINTENANCE

$9.49

$

Usually ships in 3-6 days

0

21

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0
