74866 (XS 4850) - Toro 48" TimeCutter HD Zero-Turn Mower (SN: 402000000 - 999999999) AIR INTAKE AND FILTRATION ASSEMBLY Parts Diagram

48" TimeCutter HD Zero-Turn Mower

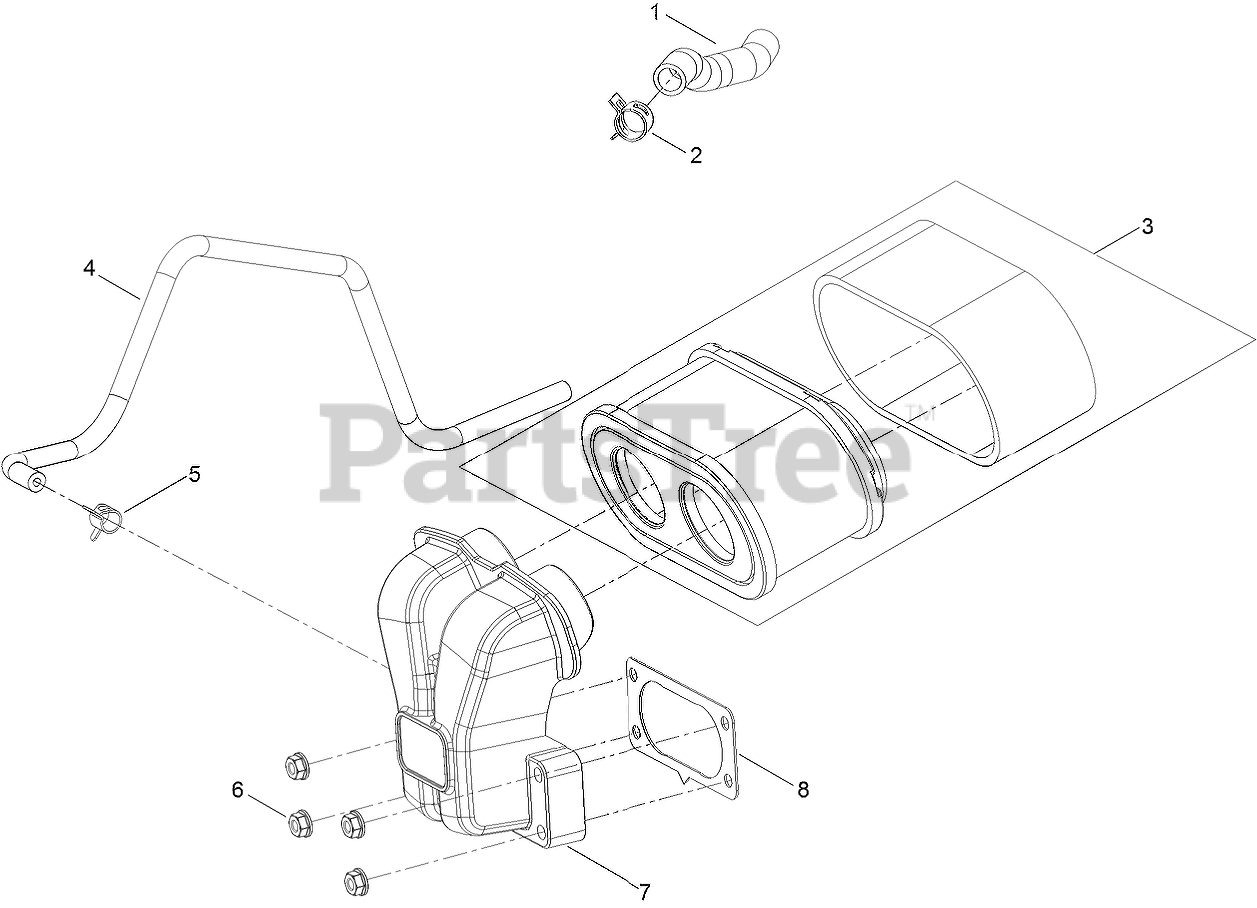

AIR INTAKE AND FILTRATION ASSEMBLY Parts Diagram

  • Title
1

Toro 127-9235

TUBE-BREATHER

$15.99

$

In Stock, only 1 left!

0

2

Toro 127-9234

CLAMP-HOSE

$2.99

$

Usually ships in 3-6 days

0

3

Toro 127-9252

FILTER-AIR, COMPLETE
(Superseded to 136-7806)

$25.99

$

In Stock, Qty 20+

0

4

Toro 127-9253

HOSE-FUEL

$28.99

$

In Stock, only 1 left!

0

5

Toro 127-9187

CLAMP-HOSE

$2.99

$

Usually ships in 3-6 days

0

6

Toro 120-4236

NUT-FLANGE

$1.49

$

In Stock, Qty 20+

0

7

Toro 127-9047

MANIFOLD-FILTER, AIR

$119.99

$

Usually ships in 3-6 days

0

8

Toro 127-9251

GASKET-CARBURETOR

$5.49

$

In Stock, Qty 15

0
