74864 (X 4850) - Toro 48" TimeCutter HD Zero-Turn Mower (SN: 402000000 - 999999999) HYDRO TRANSMISSION ASSEMBLY Parts Diagram

48" TimeCutter HD Zero-Turn Mower

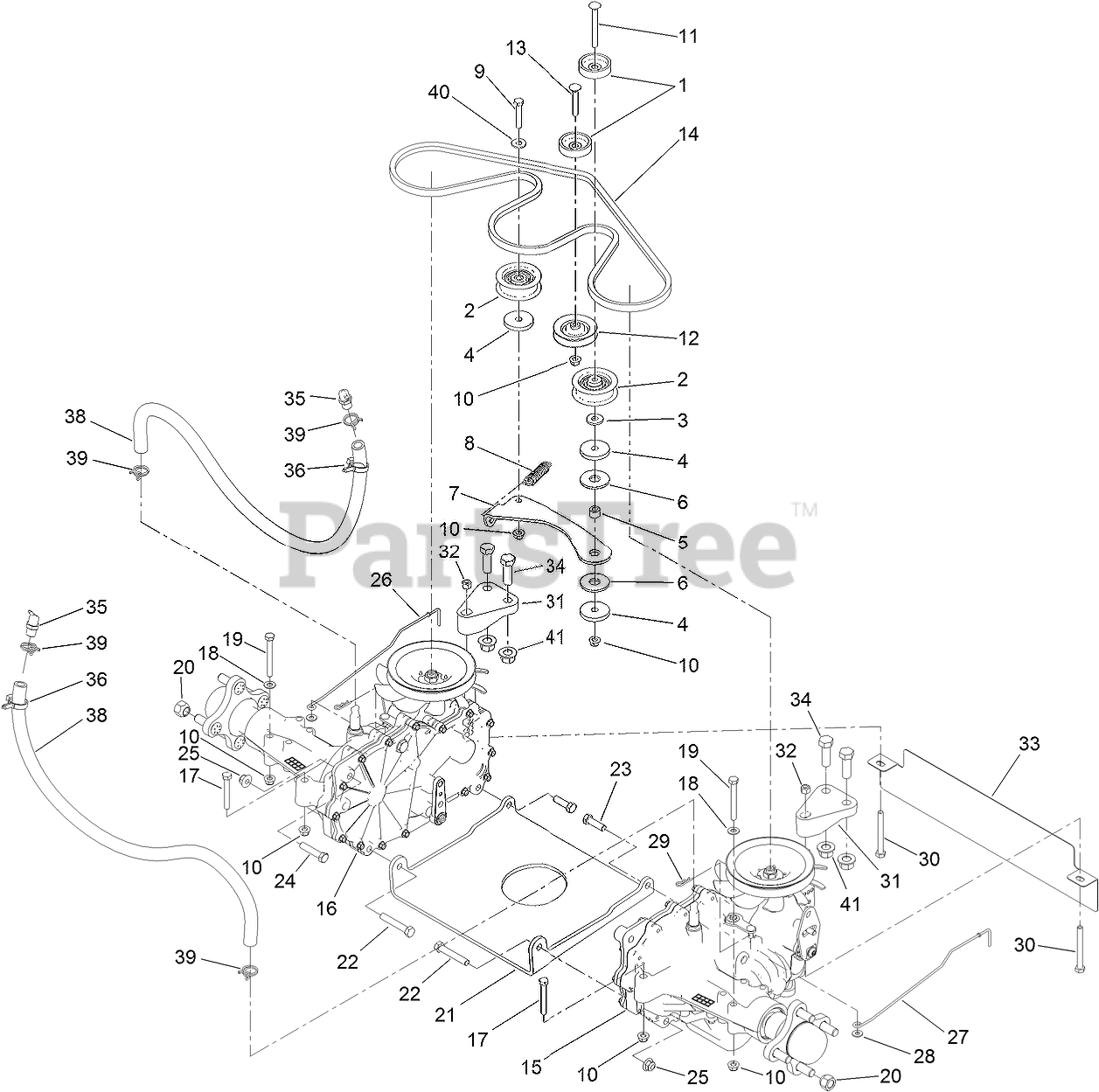

HYDRO TRANSMISSION ASSEMBLY Parts Diagram

  • Title

1

Toro 119-3353

SPACER

$11.99

$

Usually ships in 3-6 days

0

2

Toro 106-2176

PULLEY-IDLER

$31.99

$

In Stock, Qty 17

0

3

Toro 1-613235

WASHER

$1.99

$

In Stock, Qty 5

0

4

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, only 2 left!

0

5

Toro 114-8549

BUSHING

$3.49

$

In Stock, Qty 20+

0

6

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 11

0

7

Toro 133-4423

ARM-IDLER

$17.99

$

Usually ships in 3-6 days

0

8

Toro 104-6415

SPRING-RETURN, PEDAL
(Superseded to 137-7040)

$5.49

$

In Stock, Qty 9

0

9

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

10

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

11

Toro 119-9784

SCREW-CARR

$2.49

$

Usually ships in 3-6 days

0

12

Toro 119-8822

PULLEY-IDLER

$25.99

$

In Stock, Qty 6

0

13

Toro 3230-6

Screw-CARR

$1.49

$

In Stock, Qty 11

0

14

Toro 133-4371

V-BELT

$35.99

$

In Stock, only 3 left!

0

15

Toro 133-4420

LH HYDRO TRANSMISSION ASM

$2728.99

$

Usually ships in 3-6 days

0

16

Toro 133-4421

RH HYDRO TRANSMISSION ASM

$2728.99

$

Usually ships in 3-6 days

0

17

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

20

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

21

Toro 130-0718-01

PLATE-CROSS, HYDRO

$71.99

$

Usually ships in 3-6 days

0

22

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

23

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

24

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro 133-4304

ROD BYPASS, RH
(Superseded to 139-5855)

$9.49

$

Usually ships in 3-6 days

0

27

Toro 133-4305

ROD BYPASS, LH
(Superseded to 139-5854)

$9.49

$

Usually ships in 3-6 days

0

28

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

30

Toro 322-14

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

31

Toro 133-1247

SUPPORT-HYDRO, REAR

$30.99

$

Usually ships in 3-6 days

0

32

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

33

Toro 131-1098-03

GUARD REAR, WIDE

$18.99

$

Usually ships in 3-6 days

0

34

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

35

Toro 136-4183

BREATHER KIT

$14.99

$

In Stock, only 2 left!

0

36

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

38

Toro 136-4182

HOSE-HYDRO

$26.99

$

In Stock, only 2 left!

0

39

Toro 117-1193

CLAMP-HOSE

$1.49

$

In Stock, Qty 11

0

40

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

41

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+
