74861 (ZX 4800) - Toro 48" Titan Zero-Turn Mower (SN: 315000001 - 315000967) (2015) SEAT ASSEMBLY Parts Diagram

48" Titan Zero-Turn Mower

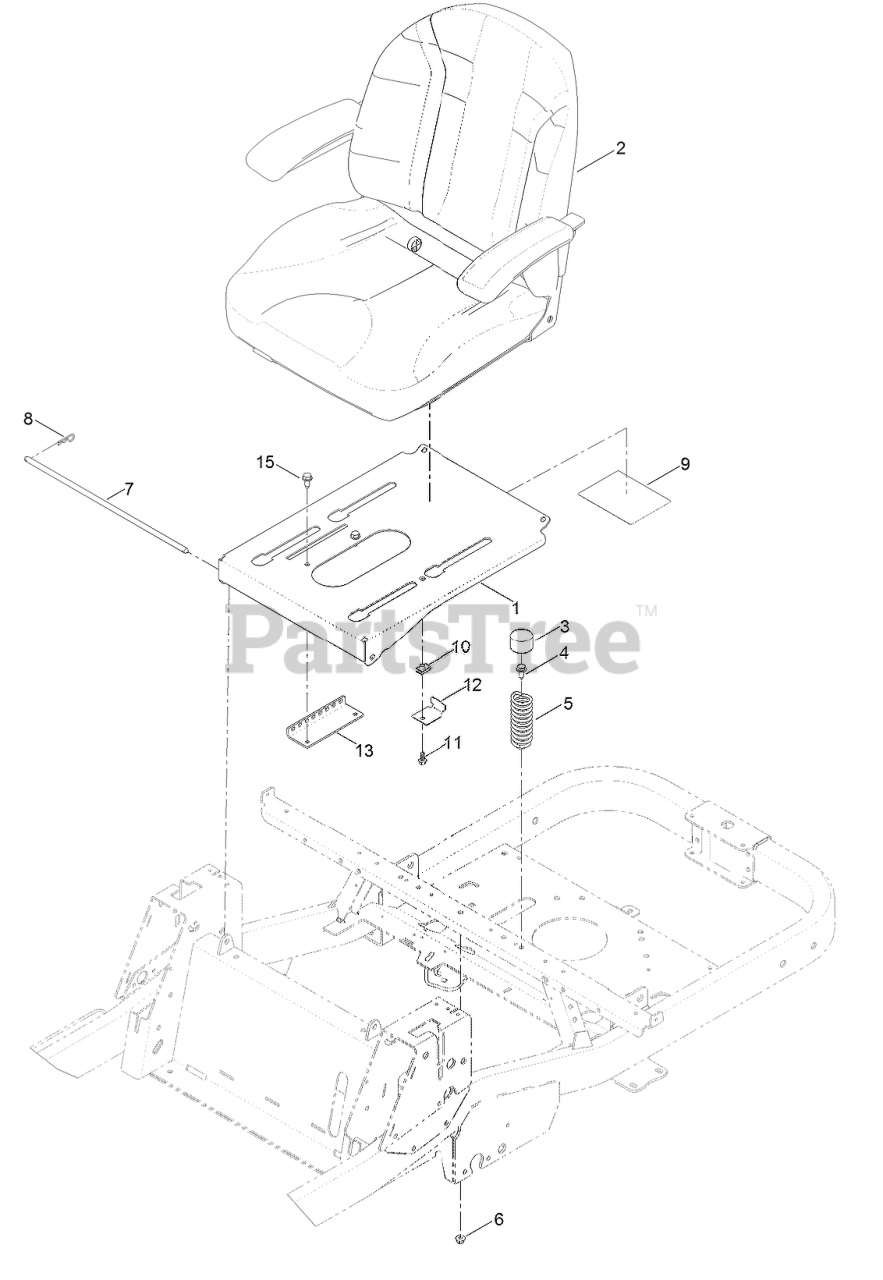

SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 131-3944-03

PAN-SEAT

$115.99

$

Usually ships in 3-6 days

0

2

Toro 131-4147

SEAT ASM

$631.99

$

Usually ships in 3-6 days

0

3

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, only 3 left!

0

4

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0

5

Toro 92-7054

SPRING-COMPRESSION

$21.99

$

In Stock, Qty 10

0

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

7

Toro 115-4966

ROD-STOP

$19.99

$

Usually ships in 3-6 days

0

8

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

9

Toro 130-6996

DECAL-MAINTENANCE

$

$

Currently unavailable

10

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

11

Toro 99-6810

SCREW-HHF

$3.49

$

In Stock, only 1 left!

0

12

Toro 131-1038

BRACKET-STOP, SEAT
(Superseded to 138-7214)

$2.99

$

Usually ships in 3-6 days

0

13

Toro 131-4008-03

BRACKET-LATCH, SEAT

$6.49

$

Usually ships in 3-6 days

0

15

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 15

0
