Toro 74855 (ZX 4800) - Toro 48" Titan Zero-Turn Mower (SN: 316000001 - 316999999) (2016) MOTION CONTROL ASSEMBLY Parts Lookup with Diagrams

1

Toro 127-3282-03

BOX-CONTROL

$333.99

$

Usually ships in 3-6 days

2

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 7

3

Toro 110-6828

ACTIVATOR ARM ASM

$59.99

$

In Stock, only 1 left!

3:2

Toro 105-3455

BUSHING

$3.49

$

In Stock, only 4 left!

4

Toro 106-2214

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

5

Toro 131-0964

DAMPER

$82.99

$

In Stock, only 3 left!

6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

7

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

8

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

9

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

10

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

11

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 9

12

Toro 117-7422

ROD-CONTROL

$13.99

$

Usually ships in 3-6 days

13

Toro 117-7423

BRACKET-CONTROL

$7.99

$

Usually ships in 3-6 days

14

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

15

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

17

Toro 132-9344-05

Arm-Actuator

$41.99

$

Usually ships in 3-6 days

19

Toro 115-5023

TAB-STOP

$5.49

$

Usually ships in 3-6 days

20

Toro 110-6873

ECCENTRIC

$5.49

$

Usually ships in 3-6 days

21

Toro 110-6874

SCREW-ECCENTRIC

$9.49

$

Usually ships in 3-6 days

22

Toro 110-6875

BOLT-SHOULDER

$28.99

$

Usually ships in 3-6 days

23

Toro 110-6751

BRACKET-RETURN

$6.99

$

Usually ships in 3-6 days

24

Toro 110-6750

PLATE-RETURN

$6.99

$

Usually ships in 3-6 days

25

Toro 110-6752

SPRING-COMPRESSION

$3.49

$

Usually ships in 3-6 days

26

Toro 110-6894

WASHER-PIVOT

$1.49

$

Usually ships in 3-6 days

27

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

28

Toro 110-6784

BOLT-SHOULDER

$

Not available 

29

Toro 37-8771

BOLT-SHOULDER

$5.49

$

In Stock, only 3 left!

30

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

31

Toro 112-9771

WASHER-TEFLON

$2.99

$

In Stock, Qty 18

32

Toro 130-0655

DECAL-FILL, FUEL

$2.49

$

Usually ships in 3-6 days

33

Toro 117-1255-03

COVER-CONTROL, RH

$19.99

$

Usually ships in 3-6 days

34

Toro 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

35

Toro 115-2561-03

COVER-CONTROL, LH

$19.99

$

Usually ships in 3-6 days

36

Toro 115-9625

DECAL-BRAKE, PARKING

$5.49

$

Usually ships in 3-6 days

37

Toro 99-8936

DECAL-CONTROL, MOTION

$22.99

$

In Stock, only 2 left!

38

Toro 127-3383

DECAL

$16.99

$

Usually ships in 3-6 days

39

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

40

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

41

Toro 121-0731

HANDLE-CONTROL, RH

$75.99

$

In Stock, only 2 left!

41:1

Toro 121-0726

GRIP

$14.99

$

In Stock, only 2 left!

42

Toro 121-0730

HANDLE-CONTROL, LH

$145.99

$

In Stock, only 4 left!

42:1

Toro 121-0726

GRIP

$14.99

$

In Stock, only 2 left!

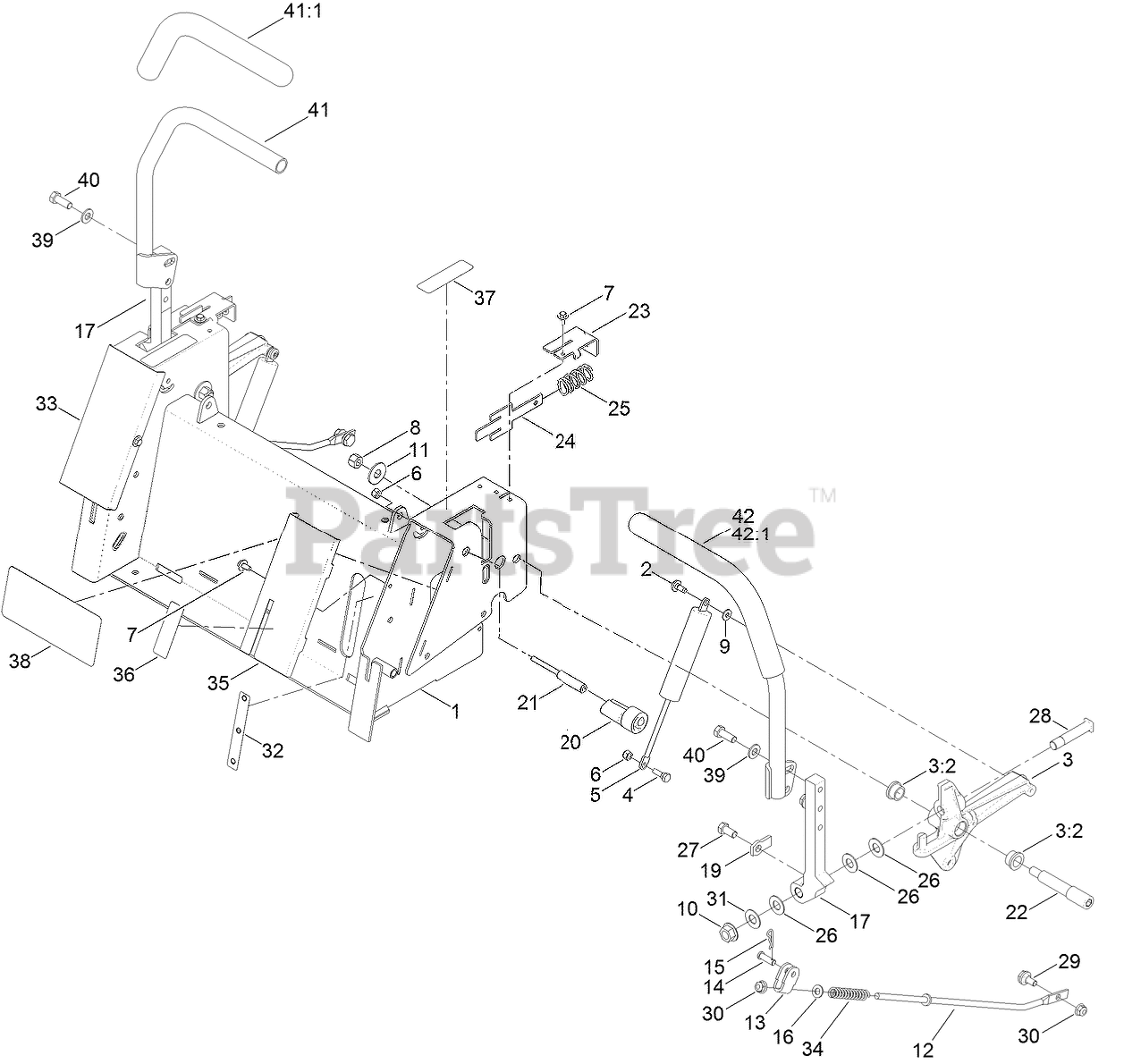

74855 (ZX 4800) - Toro 48" Titan Zero-Turn Mower (SN: 316000001 - 316999999) (2016) MOTION CONTROL ASSEMBLY Parts Diagram

MOTION CONTROL ASSEMBLY Parts Diagram
