74855 (ZX 4800) - Toro 48" Titan Zero-Turn Mower (SN: 316000001 - 316999999) (2016) FRAME, FRONT AXLE AND CASTER WHEEL ASSEMBLY Parts Diagram

48" Titan Zero-Turn Mower

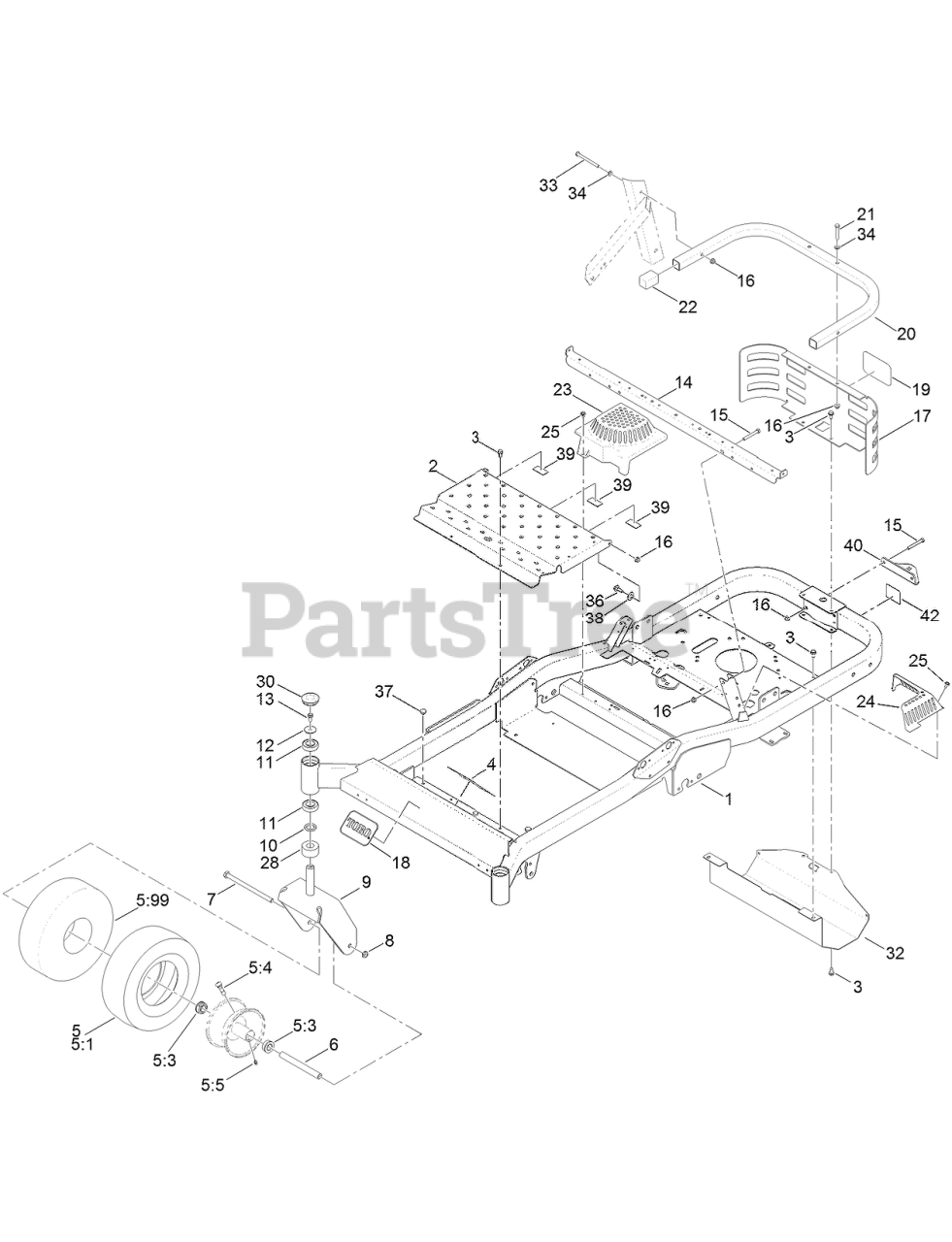

FRAME, FRONT AXLE AND CASTER WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 131-4039-01

FRAME ASM

$2002.99

$

Usually ships in 3-6 days

0

2

Toro 127-3423-01

PAN-FLOOR

$168.99

$

Usually ships in 3-6 days

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 132-0871

DECAL-DANGER

$8.49

$

Usually ships in 3-6 days

0

5

Toro 127-3447

TIRE AND WHEEL ASM

$142.99

$

In Stock, only 2 left!

0

5:1

Toro 120-2252

TIRE-13 INCH SMOOTH

$85.99

$

In Stock, only 1 left!

0

5:3

Toro 114-1640

BUSHING-FLANGE

$12.99

$

In Stock, Qty 20+

0

5:4

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 17

0

5:5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

5:99

Toro 232-46

TUBE-INNER

$37.99

$

Usually ships in 3-6 days

0

6

Toro 119-3475

SPANNER

$11.99

$

In Stock, Qty 9

0

7

Toro 325-37

SCREW-HH

$6.99

$

In Stock, Qty 8

0

8

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

9

Toro 127-3309-01

FORK-CASTER

$110.99

$

In Stock, only 4 left!

0

10

Toro 10-8110

WASHER-THRUST

$1.49

$

In Stock, only 3 left!

0

11

Toro 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

12

Toro 3256-68

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

13

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0

14

Toro 121-2953-03

SUPPORT-SEAT

$50.99

$

Usually ships in 3-6 days

0

15

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$1.99

$

In Stock, Qty 14

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 120-2248-03

GUARD-REAR

$126.99

$

Usually ships in 3-6 days

0

18

Toro 67-1300

DECAL

$28.99

$

In Stock, only 2 left!

0

19

Toro 105-8278

DECAL

$10.99

$

In Stock, only 2 left!

0

20

Toro 121-0704-01

TUBE-GUARD

$102.99

$

Usually ships in 3-6 days

0

21

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 7

0

22

Toro 121-2980

CAP

$2.99

$

Usually ships in 3-6 days

0

23

Toro 117-1241

COVER-FAN, RH

$19.99

$

Usually ships in 3-6 days

0

24

Toro 117-1242

COVER-FAN, LH

$14.99

$

Usually ships in 3-6 days

0

25

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 10

0

28

Toro 127-3330-01

SPACER-CASTER

$19.99

$

Usually ships in 3-6 days

0

30

Toro 116-4348

CAP-GREASE

$5.49

$

In Stock, Qty 16

0

32

Toro 131-4137-03

SHIELD-HEAT

$79.99

$

Usually ships in 3-6 days

0

33

Toro 322-23

SCREW-HH
(Superseded to 321-9)

$4.99

$

In Stock, only 2 left!

0

34

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

36

Toro 116-1297

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

37

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

38

Toro 112-9771

WASHER-TEFLON

$2.99

$

In Stock, Qty 18

0

39

Toro 130-0733

PAD-RUBBER

$1.49

$

Usually ships in 3-6 days

0

40

Toro 117-1232-03

BRACKET-HITCH

$28.99

$

In Stock, only 1 left!

0

42

Toro 131-4036

DECAL

$2.99

$

In Stock, only 3 left!

0
