74846 (ZX 4800) - Toro 48" Titan Zero-Turn Mower (SN: 316000001 - 316999999) (2016) 48 INCH DECK GUARD ASSEMBLY Parts Diagram

48" Titan Zero-Turn Mower

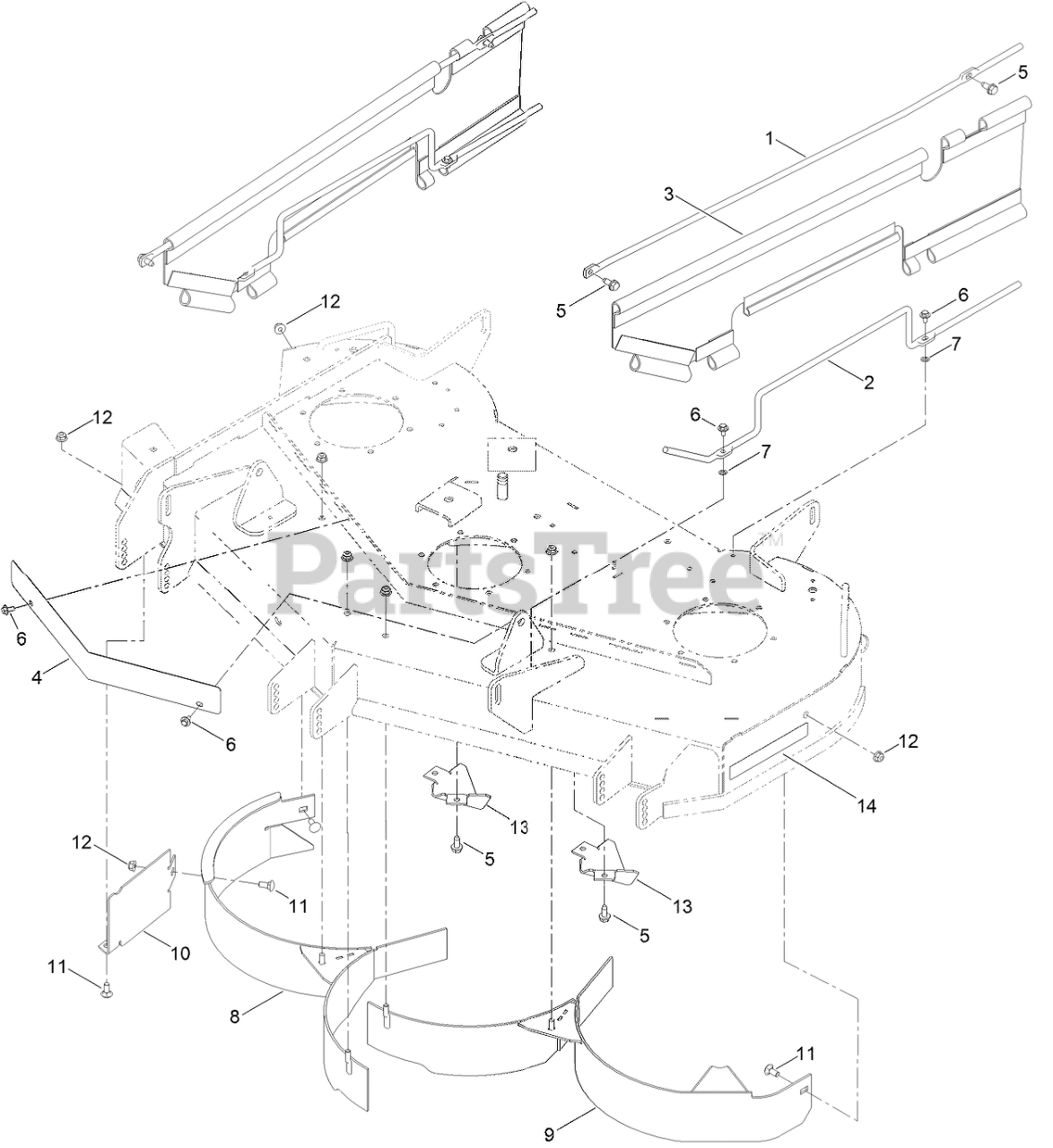

48 INCH DECK GUARD ASSEMBLY Parts Diagram

  • Title

1

Toro 131-3904

ROD SUPPORT, UPPER

$22.99

$

Usually ships in 3-6 days

0

2

Toro 131-3905

ROD SUPPORT, LOWER

$27.99

$

Usually ships in 3-6 days

0

3

Toro 131-3906

GUARD-SIDE

$25.99

$

Usually ships in 3-6 days

0

4

Toro 131-3900-03

SHIELD-FRONT

$21.99

$

Usually ships in 3-6 days

0

5

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

6

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

7

Toro 1-803037

NUT-RETAINING

$1.49

$

Usually ships in 3-6 days

0

8

Toro 117-7379-03

RH BAFFLE ASM

$278.99

$

Usually ships in 3-6 days

0

9

Toro 117-7380-03

LH BAFFLE ASM

$278.99

$

Usually ships in 3-6 days

0

10

Toro 119-3352-03

GUARD-BAFFLE

$28.99

$

Usually ships in 3-6 days

0

11

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

12

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

13

Toro 119-3389-03

KICKER-FLANGED

$28.99

$

Usually ships in 3-6 days

0

14

Toro 119-2368

DECAL-RECYCLER

$6.49

$

In Stock, only 2 left!

0
