74845 (ZX 4820) - Toro 48" Titan Zero-Turn Mower (SN: 313000001 - 313999999) (2013) FUEL DELIVERY ASSEMBLY Parts Diagram

48" Titan Zero-Turn Mower

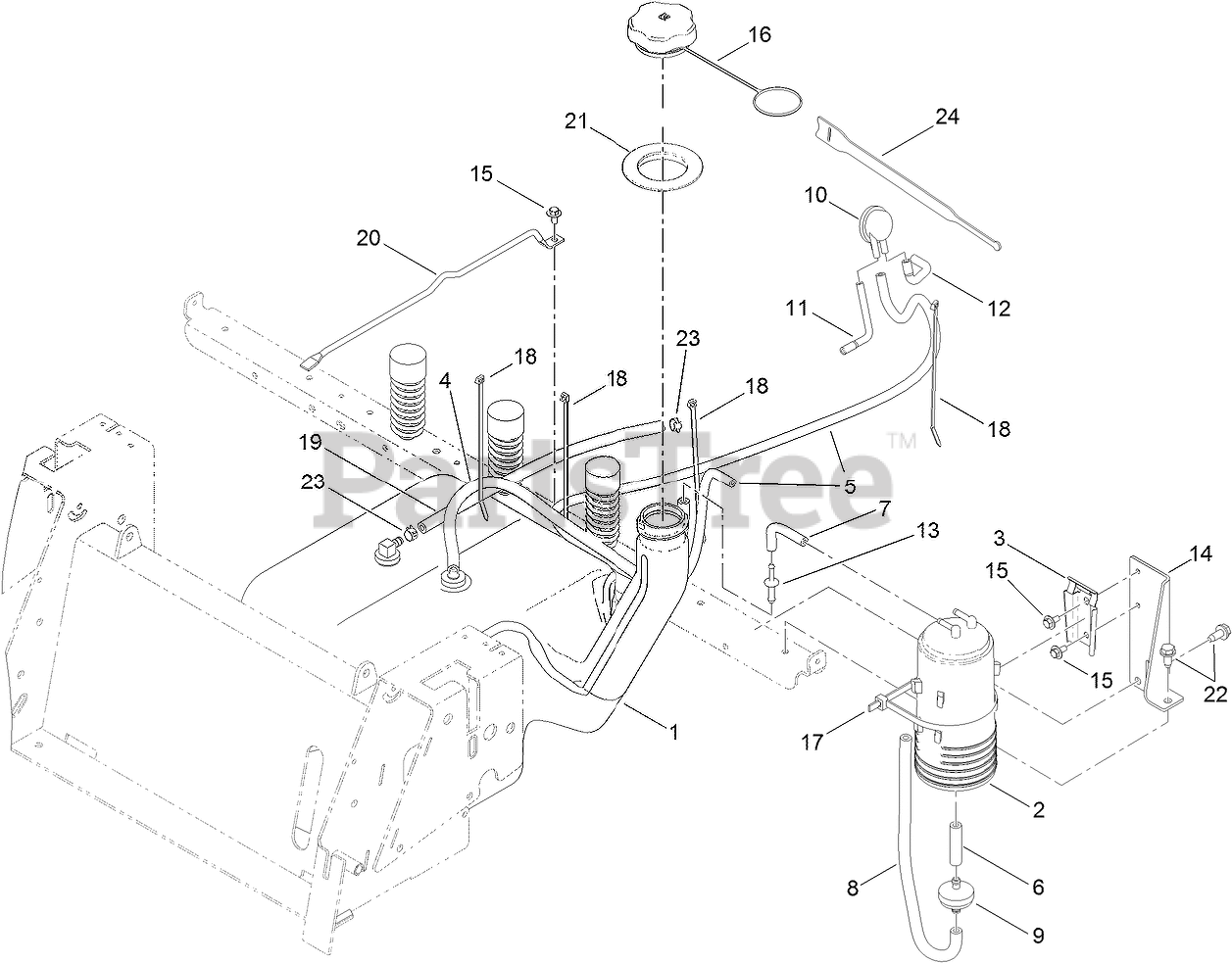

FUEL DELIVERY ASSEMBLY Parts Diagram

  • Title

1

Toro 117-7352

FUEL TANK ASM

$442.99

$

Usually ships in 3-6 days

0

2

Toro 117-1221

CANISTER-CARBON, 800CC

$75.99

$

In Stock, only 1 left!

0

3

Toro 114-0292

BRACKET-CANISTER, CARBON

$12.99

$

Usually ships in 3-6 days

0

4

Toro 110-4103

HOSE-FUEL

$21.99

$

Usually ships in 3-6 days

0

5

Toro 110-7502

HOSE-FUEL

$51.99

$

Usually ships in 3-6 days

0

6

Toro 99-9415

HOSE-FUEL

$3.49

$

In Stock, Qty 5

0

7

Toro 51-3215

HOSE-FUEL

$3.99

$

Usually ships in 3-6 days

0

8

Toro 110-4895

HOSE-FUEL

$19.99

$

Usually ships in 3-6 days

0

9

Toro 115-7854

FILTER-FUEL, INLINE

$7.49

$

In Stock, only 4 left!

0

10

Toro 116-2232

VALVE-CONTROL, VACUUM

$33.99

$

In Stock, only 3 left!

0

11

Toro 119-8501

HOSE-VENT, FORMED

$6.49

$

Usually ships in 3-6 days

0

12

Toro 119-8502

HOSE-VENT, FORMED

$6.49

$

Usually ships in 3-6 days

0

13

Toro 121-0743

ADAPTER-ORIFICE

$3.49

$

Usually ships in 3-6 days

0

14

Toro 117-1177-03

BRACKET-MOUNTING, CANISTER

$41.99

$

Usually ships in 3-6 days

0

15

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

16

Toro 125-1847

CAP-FUEL

$25.99

$

In Stock, only 1 left!

0

17

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

18

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

19

Toro 107-0589

HOSE-FUEL

$7.49

$

In Stock, Qty 5

0

20

Toro 115-2620

ROD-TANK, GAS

$19.99

$

Usually ships in 3-6 days

0

21

Toro 117-1298

SEAL-TANK

$8.99

$

Usually ships in 3-6 days

0

22

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

23

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

24

Toro 116-2469

STRAP-VELCRO, CABLE TIE

$18.99

$

Usually ships in 3-6 days

0
