74845 (ZX 4820) - Toro 48" Titan Zero-Turn Mower (SN: 313000001 - 313999999) (2013) ENGINE, MUFFLER AND CLUTCH ASSEMBLY Parts Diagram

48" Titan Zero-Turn Mower

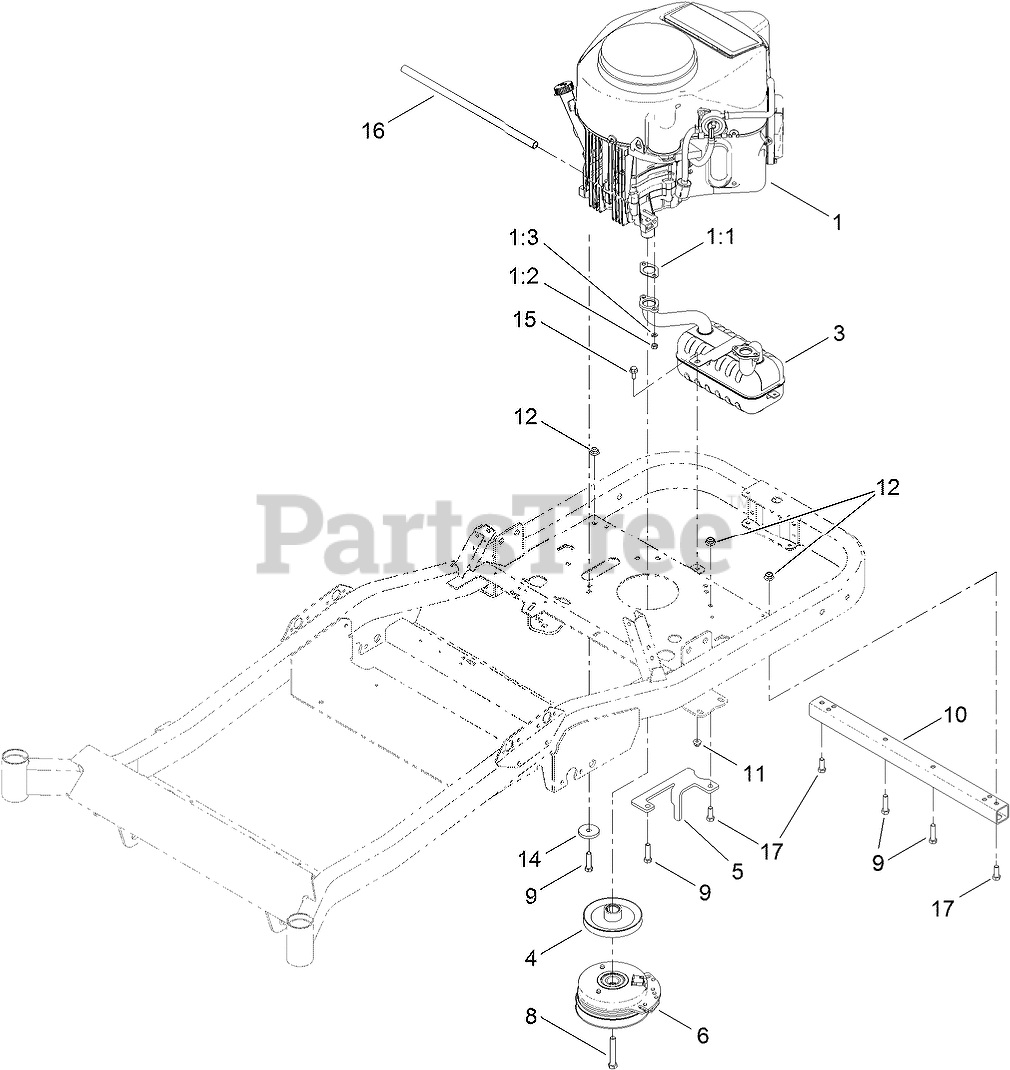

ENGINE, MUFFLER AND CLUTCH ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KAWASAKI, FR651V-S12-R

Note: Not serviced separately

$

$

Not available

1

ENGINE-KAWASAKI, FR651V-S12-R

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

1:1

Toro 1-653313

GASKET-EXHAUST

$4.99

$

Usually ships in 3-6 days

0

1:2

Toro 114-3549

NUT

$1.99

$

In Stock, Qty 20+

0

1:3

Toro 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 6

0

3

Toro 117-7465

MUFFLER-KAWASAKI TWIN

$283.99

$

Usually ships in 3-6 days

0

4

Toro 125-5576

PULLEY-ENGINE

$118.99

$

Usually ships in 3-6 days

0

5

Toro 117-7344-03

BRACKET-STOP, PTO

$38.99

$

Usually ships in 3-6 days

0

6

Toro 117-1252

CLUTCH-PTO

$836.99

$

Usually ships in 3-6 days

0

8

Toro 3212-11

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

9

Toro 323-50

BOLT-HH

$1.49

$

In Stock, Qty 17

0

10

Toro 117-7335-03

TUBE-STIFFENER

$103.99

$

Usually ships in 3-6 days

0

11

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, only 2 left!

0

15

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0

16

Toro 106-7022

TUBE-DRAIN, OIL

$9.49

$

Usually ships in 3-6 days

0

17

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+
