74845 (ZX 4820) - Toro 48" Titan Zero-Turn Mower (SN: 312000001 - 312999999) (2012) MAIN FRAME AND CASTER WHEEL ASSEMBLY Parts Diagram

48" Titan Zero-Turn Mower

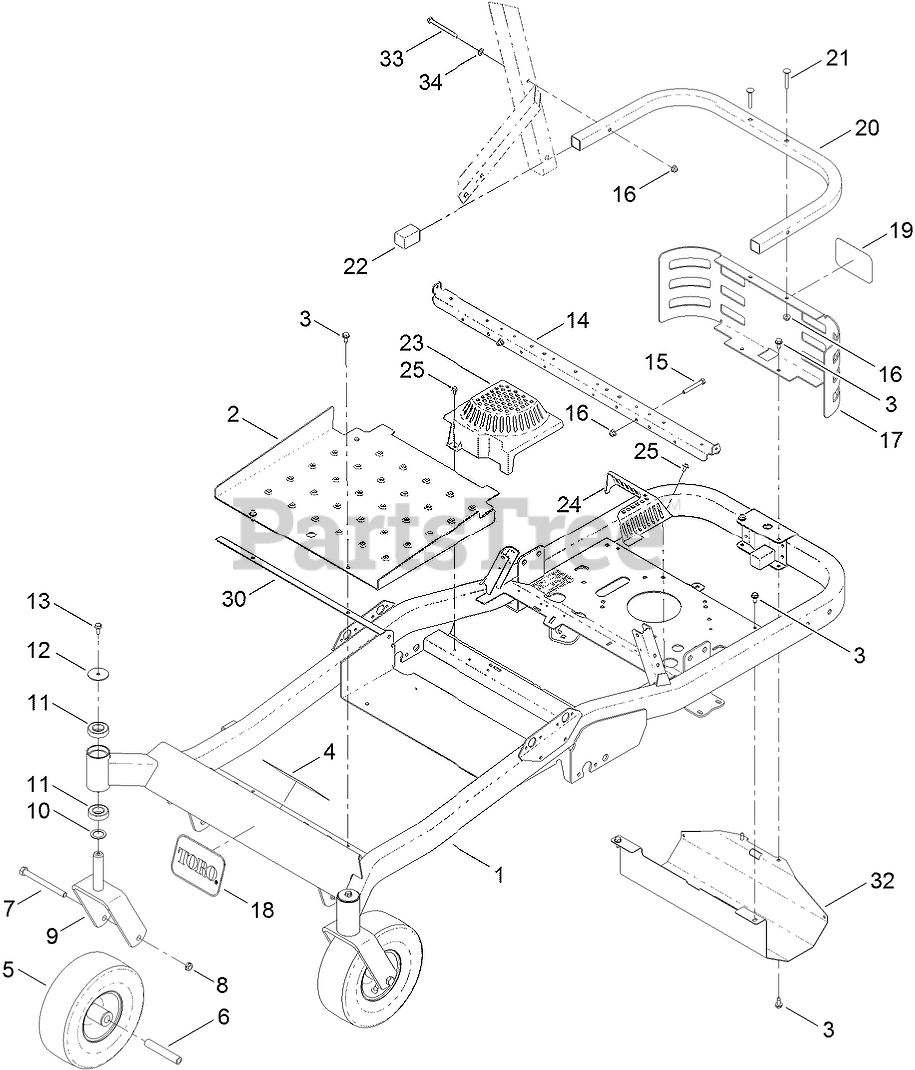

MAIN FRAME AND CASTER WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 117-7356-01

FRAME

$2251.99

$

Usually ships in 3-6 days

0

2

Toro 115-2531-05

PAN-FLOOR

$191.99

$

Usually ships in 3-6 days

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 120-5466

DECAL-SAFETY

$11.99

$

Usually ships in 3-6 days

0

5

Toro 115-2554

TIRE and Wheel ASM (Kenda)

$209.99

$

In Stock, Qty 8

0

6

Toro 104-3667

BUSHING-SPANNER

$19.99

$

In Stock, Qty 12

0

7

Toro 325-22

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

8

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

9

Toro 110-6634-01

CASTER FORK ASM

$94.99

$

Usually ships in 3-6 days

0

10

Toro 10-8110

WASHER-THRUST

$1.49

$

In Stock, only 3 left!

0

11

Toro 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

12

Toro 109-3724

WASHER

$3.49

$

In Stock, only 4 left!

0

13

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0

14

Toro 119-8997-03

SUPPORT-SEAT

$50.99

$

Usually ships in 3-6 days

0

15

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$1.99

$

In Stock, Qty 14

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 120-2248-03

GUARD-REAR

$126.99

$

Usually ships in 3-6 days

0

18

Toro 62-5550

DECAL

$10.99

$

In Stock, only 2 left!

0

19

Toro 105-8278

DECAL

$10.99

$

In Stock, only 2 left!

0

20

Toro 121-0704-01

TUBE-GUARD

$102.99

$

Usually ships in 3-6 days

0

21

Toro 3230-6

Screw-CARR

$1.49

$

In Stock, Qty 11

0

22

Toro 121-2980

CAP

$2.99

$

Usually ships in 3-6 days

0

23

Toro 117-1241

COVER-FAN, RH

$19.99

$

Usually ships in 3-6 days

0

24

Toro 117-1242

COVER-FAN, LH

$14.99

$

Usually ships in 3-6 days

0

25

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 10

0

30

Toro 117-7238

STRIP-VIBRATION, ANTI

$9.49

$

Usually ships in 3-6 days

0

32

Toro 120-2247-03

GUARD-MUFFLER
(Superseded to 131-4137-03)

$79.99

$

Usually ships in 3-6 days

0

33

Toro 322-23

SCREW-HH
(Superseded to 321-9)

$4.99

$

In Stock, only 2 left!

0

34

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
