74843 (ZX 6020) - Toro 60" Titan Zero-Turn Mower (SN: 311000001 - 311999999) (2011) 60 INCH DECK BELT, SPINDLE AND HI-FLO BLADE ASSEMBLY Parts Diagram

60" Titan Zero-Turn Mower

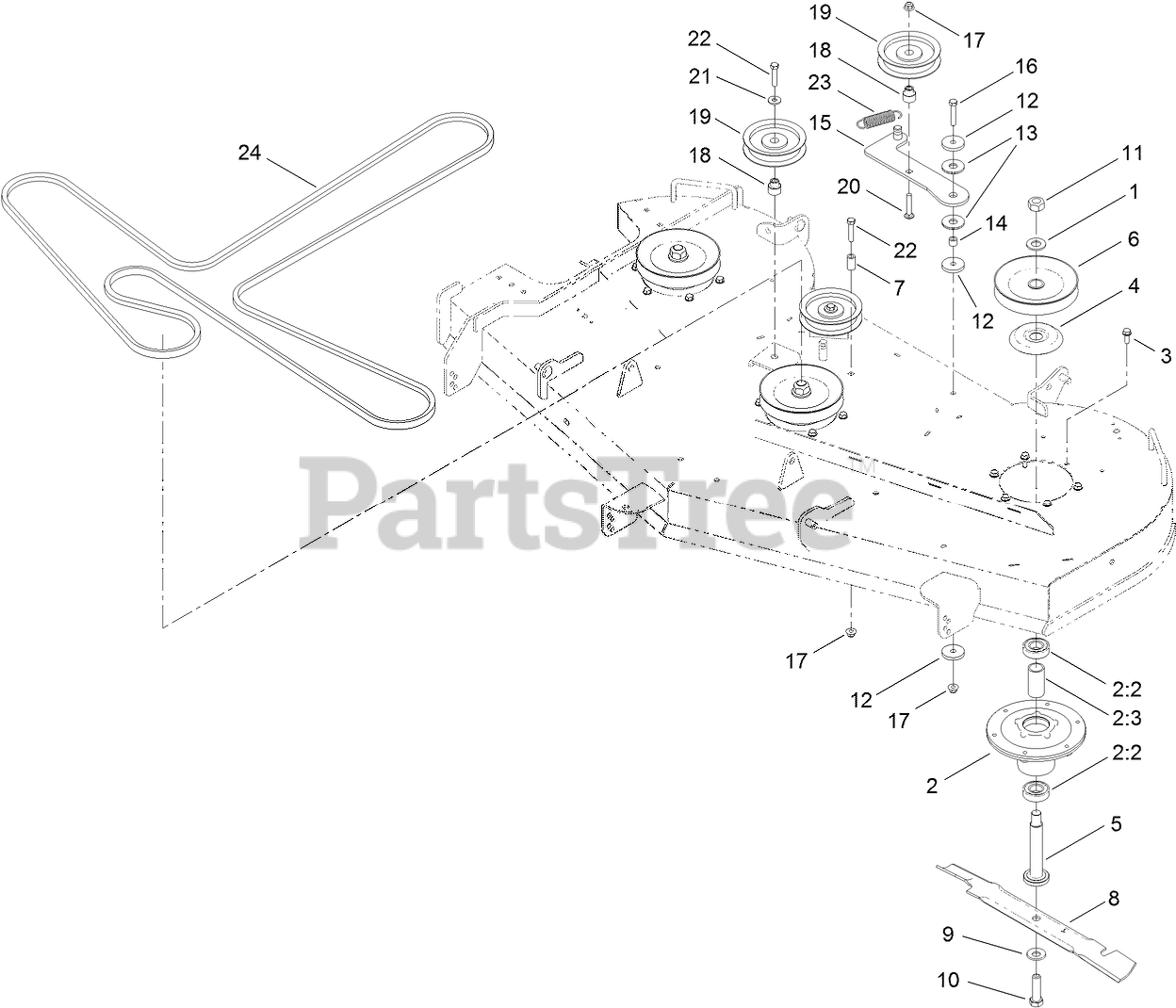

60 INCH DECK BELT, SPINDLE AND HI-FLO BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 7

0

2

Toro 120-5477

SPINDLE ASM
(Superseded to 139-2357)

$101.99

$

Usually ships in 3-6 days

0

2:2

Toro 116-0720

BEARING-BALL

$22.99

$

Usually ships in 3-6 days

0

2:3

Toro 115-2641

SPACER-BEARING

$12.99

$

In Stock, only 2 left!

0

3

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

4

Toro 117-7210

SHIELD-BEARING

$9.99

$

In Stock, only 1 left!

0

5

Toro 115-2642

SHAFT-SPINDLE

$51.99

$

In Stock, Qty 5

0

6

Toro 115-4975

PULLEY

$74.99

$

In Stock, only 2 left!

0

7

Toro 1-603401

SPACER

$6.99

$

In Stock, Qty 8

0

8

Toro 115-9649-03

BLADE-HI FLOW, 20.5 INCH

$31.99

$

In Stock, Qty 20+

0

9

Toro 22-8520

WASHER-BELLEVILLE
(Superseded to 125-1736)

$4.49

$

In Stock, only 2 left!

0

10

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 20+

0

11

Toro 3219-7

NUT-HEX

$1.99

$

In Stock, Qty 10

0

12

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, only 2 left!

0

13

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 9

0

14

Toro 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

15

Toro 115-5054

ARM-IDLER

$77.99

$

In Stock, only 2 left!

0

16

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 115-2577

BUSHING-IDLER

$6.49

$

In Stock, only 2 left!

0

19

Toro 1-603843

PULLEY-IDLER
(Superseded to 132-4718)

$34.99

$

In Stock, only 3 left!

0

20

Toro 3231-6

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

21

Toro 80-6990

WASHER-HARDENED

$5.49

$

In Stock, Qty 14

0

22

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 108-4056

SPRING-EXTENSION

$8.49

$

In Stock, Qty 20+

0

24

Toro 115-4972

BELT-V
(Superseded to 133-1168)

$144.99

$

In Stock, only 1 left!

0
