74832 (ZX 5450) - Toro 54" Titan Zero-Turn Mower (SN: 310000001 - 310999999) (2010) TRACTION DRIVE ASSEMBLY Parts Diagram

54" Titan Zero-Turn Mower

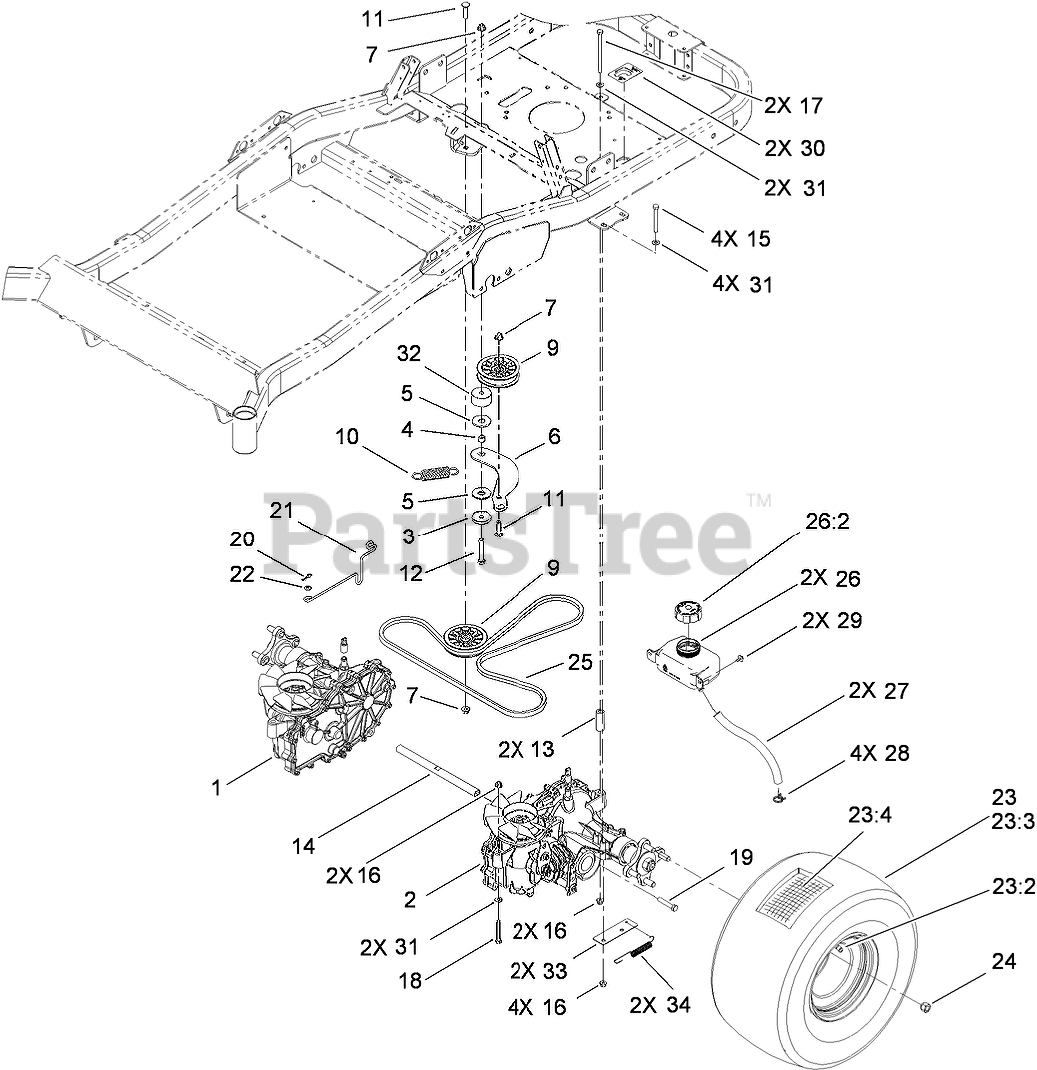

TRACTION DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 115-2550

RH HYDRO TRANSMISSION ASM

$2698.99

$

Usually ships in 3-6 days

0

2

Toro 115-2551

LH HYDRO TRANSMISSION ASM

$2728.99

$

Usually ships in 3-6 days

0

3

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, only 2 left!

0

4

Toro 115-4986

SPACER

$2.99

$

In Stock, Qty 5

0

5

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 11

0

6

Toro 117-5350

ARM-IDLER

$28.99

$

Usually ships in 3-6 days

0

7

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 109-3397

PULLEY-IDLER, FLAT

$23.99

$

In Stock, Qty 20+

0

10

Toro 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, only 3 left!

0

11

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

12

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

13

Toro 109-3652

SPACER-HYDRO

$12.99

$

Usually ships in 3-6 days

0

14

Toro 115-2559

SHAFT-CROSS, HYDRO

$43.99

$

In Stock, only 1 left!

0

15

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

17

Toro 322-38

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

18

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

19

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 19

0

20

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

21

Toro 115-4990

ROD-BYPASS
(Superseded to 125-8950)

$17.99

$

Usually ships in 3-6 days

0

22

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 115-2593

TIRE AND RIM ASM

$385.99

$

Usually ships in 3-6 days

0

23:2

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

23:3

Toro 99-2994

TIRE

$170.99

$

Usually ships in 3-6 days

0

23:4

Toro 93-3893

TUBE-INNER

$72.99

$

Usually ships in 3-6 days

0

24

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

25

Toro 115-9613

V-BELT
(Superseded to 115-9613-SL)

$53.99

$

Usually ships in 3-6 days

0

26

Toro 115-9618

HYD RESERVIOR ASM

$58.99

$

In Stock, only 1 left!

0

26:2

Toro 109-3320

CAP-RESERVOIR, HYD

$28.99

$

In Stock, only 1 left!

0

27

Toro 115-4969

HOSE-OVERFLOW

$10.99

$

In Stock, only 2 left!

0

28

Toro 117-1193

CLAMP-HOSE

$1.49

$

In Stock, Qty 11

0

29

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

30

Toro 117-1158

DECAL-BYPASS

$6.49

$

Usually ships in 3-6 days

0

31

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

32

Toro 117-5351

SPACER

$22.99

$

Usually ships in 3-6 days

0

33

Toro 117-7248-03

PLATE-SPRING

$7.49

$

Usually ships in 3-6 days

0

34

Toro 110769

SPRING-EXTENSION

$14.99

$

In Stock, only 4 left!

0
