74830 (ZX 4800) - Toro 48" Titan Zero-Turn Mower (SN: 310000001 - 310999999) (2010) PARKING BRAKE ASSEMBLY Parts Diagram

48" Titan Zero-Turn Mower

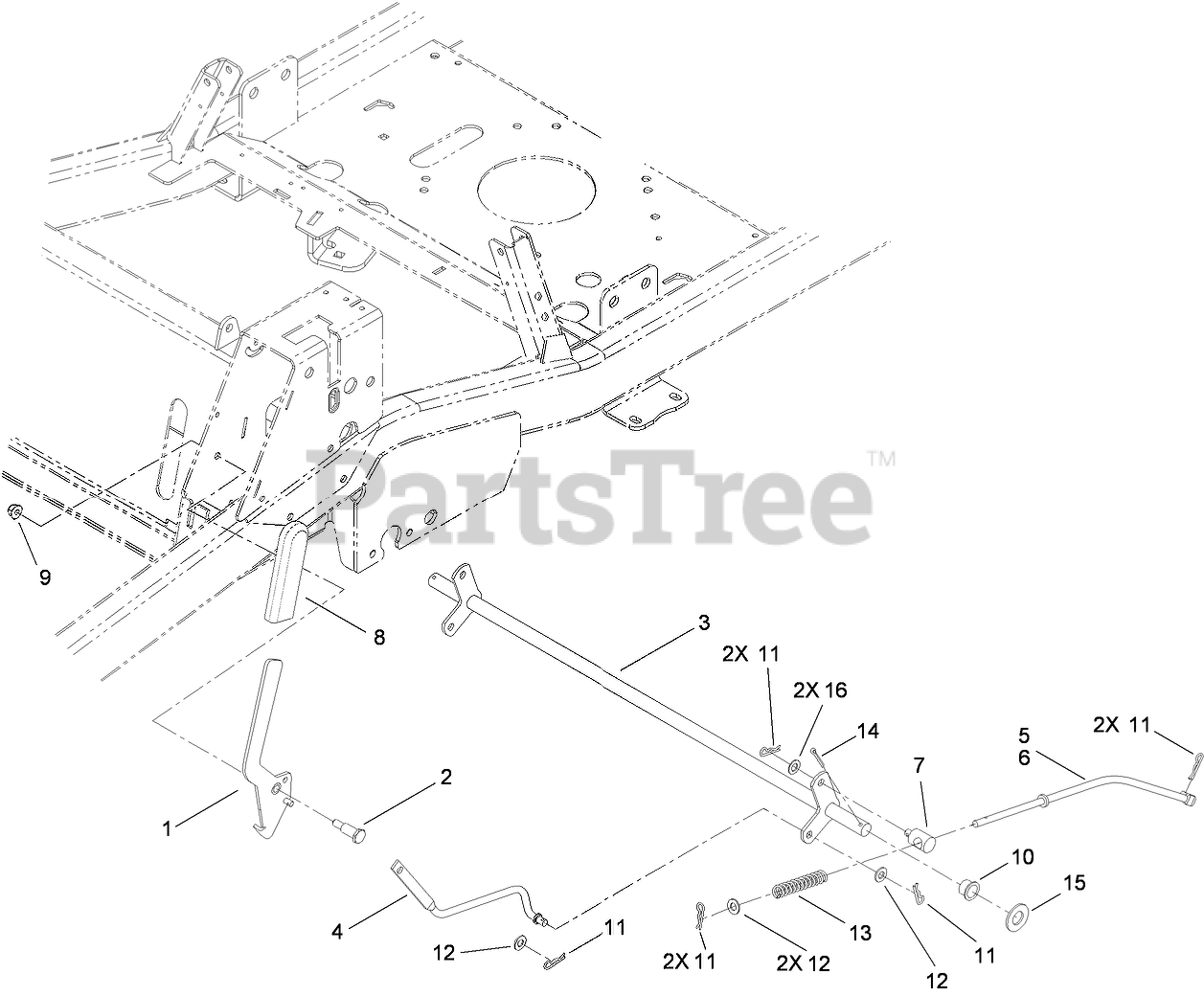

PARKING BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 117-7421

BRAKE HANDLE ASM
(Superseded to 119-3460)

$84.99

$

In Stock, only 1 left!

0

2

Toro 63-2650

SCREW-SHOULDER

$7.99

$

In Stock, only 2 left!

0

3

Toro 115-5071-03

BRAKE-BELLCRANK

$128.99

$

Usually ships in 3-6 days

0

4

Toro 115-5074

LINK-BRAKE

$37.99

$

In Stock, only 3 left!

0

5

Toro 117-7322

ROD-BRAKE, LH

$

$

Not available

6

Toro 117-7323

ROD-BRAKE, RH

Note: Not illustrated

$

$

Not available

7

Toro 115-9681

FITTING-ROD

$14.99

$

In Stock, only 1 left!

0

8

Toro 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 3 left!

0

9

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 256-292

BUSHING-FLANGE, NI

$3.49

$

In Stock, only 1 left!

0

11

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

0

14

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

15

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

16

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0
