74824 (ZX 6050) - Toro 60" Titan Zero-Turn Mower (SN: 310000001 - 310999999) (2010) DECK LIFT ASSEMBLY Parts Diagram

60" Titan Zero-Turn Mower

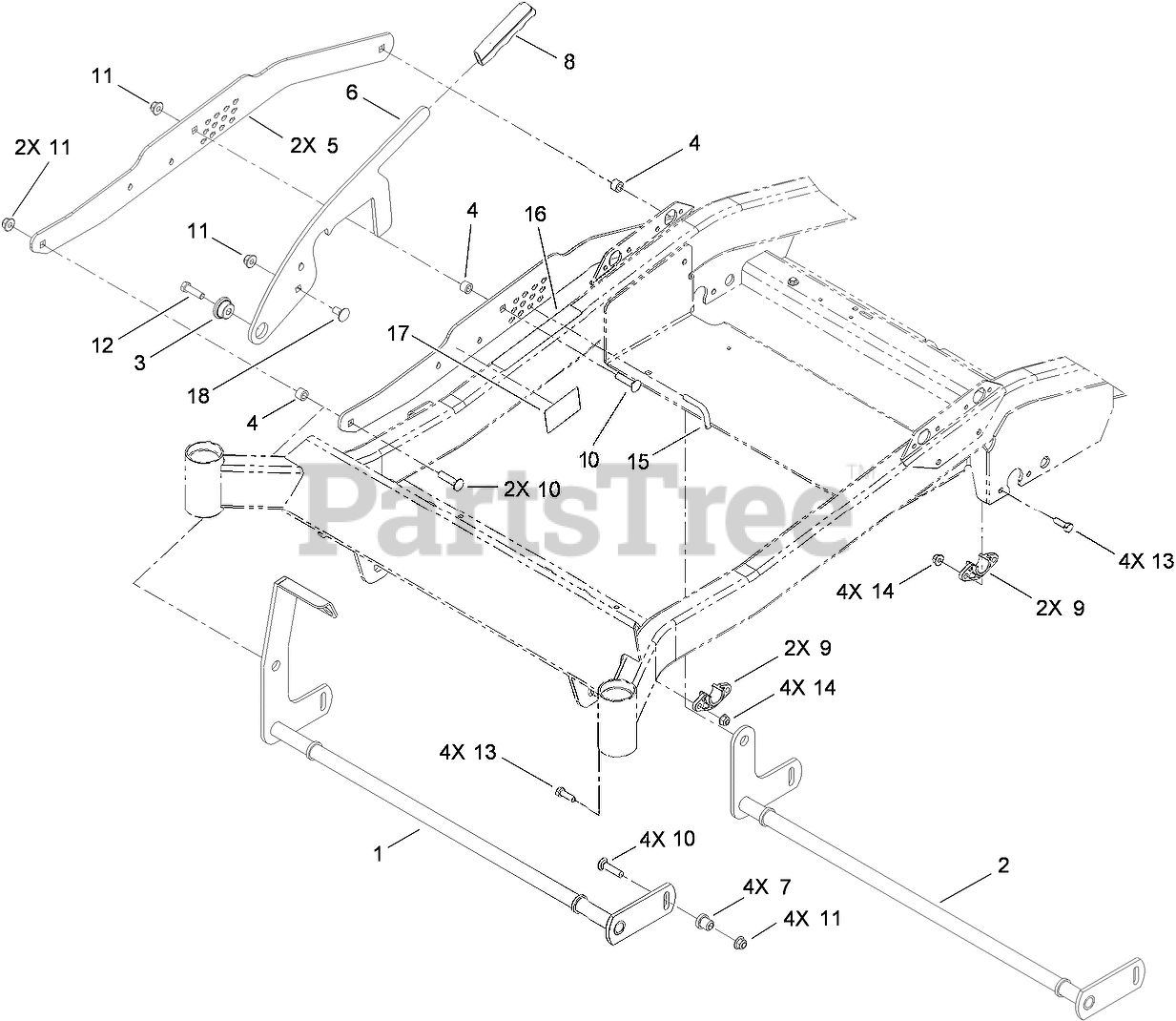

DECK LIFT ASSEMBLY Parts Diagram

  • Title

1

Toro 115-2495-03

PIVOT-FRONT

$197.99

$

Usually ships in 3-6 days

0

2

Toro 115-2498-03

PIVOT-REAR

$179.99

$

In Stock, only 1 left!

0

3

Toro 117-1281

BUSHING-MOUNT, HOC

$6.49

$

In Stock, only 3 left!

0

4

Toro 115-4986

SPACER

$2.99

$

In Stock, Qty 20+

0

5

Toro 115-2503-03

PLATE-LIFT, FOOT

$160.99

$

Usually ships in 3-6 days

0

6

Toro 115-2504

PLATE-STOP, HOC

$99.99

$

Usually ships in 3-6 days

0

7

Toro 65-5950

BUSHING-PULLEY

$5.49

$

In Stock, Qty 20+

0

8

Toro 115-5033

GRIP
(Superseded to 1-633268)

$14.99

$

In Stock, only 3 left!

0

9

Toro 115-5065

BUSHING-FLANGE

$7.99

$

In Stock, Qty 20+

0

10

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

11

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

13

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 117-1280

PIN-KEYED

$10.99

$

In Stock, only 1 left!

0

16

Toro 115-9644

DECAL-HOC

$6.99

$

Usually ships in 3-6 days

0

17

Toro 117-5344

DECAL-LOCK, DECK

$7.49

$

Usually ships in 3-6 days

0

18

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0
