74824 (ZX 6050) - Toro 60" Titan Zero-Turn Mower (SN: 290000001 - 290999999) (2009) FRAME AND CASTOR WHEEL ASSEMBLY Parts Diagram

60" Titan Zero-Turn Mower

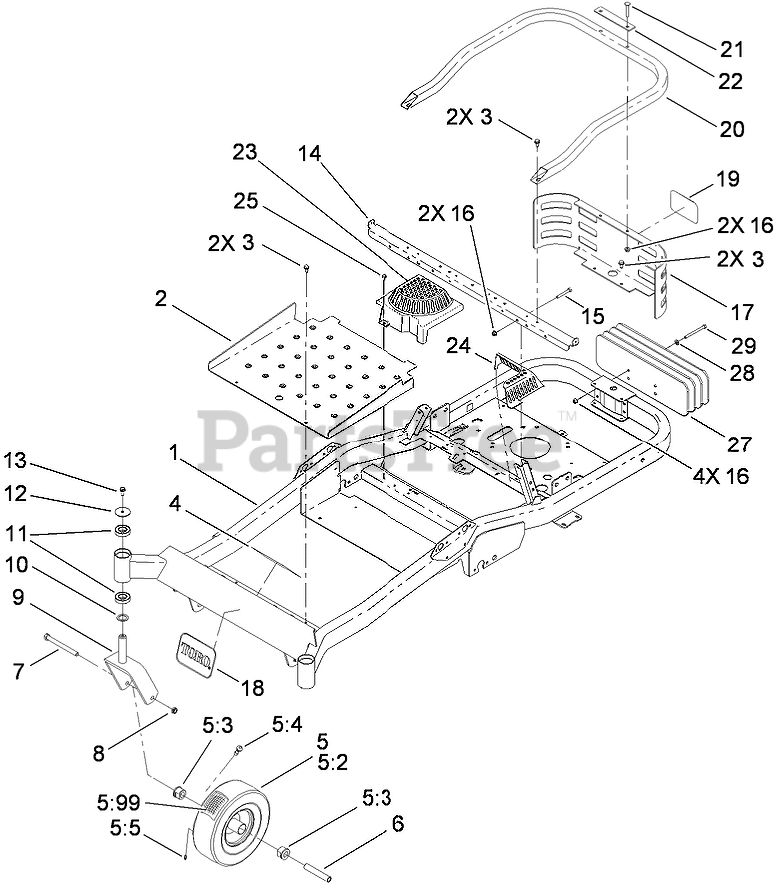

FRAME AND CASTOR WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 117-7356-01

FRAME

$

$

Not available

2

Toro 115-2531-03

FLOORPAN
(Superseded to 115-2531-05)

$236.99

$

Usually ships in 3-6 days

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 109-8965

DECAL-SAFETY

$

$

Not available

5

Toro 115-2554

TIRE and Wheel ASM (Kenda)

$222.99

$

In Stock, Qty 8

0

5:2

Toro 115-2557

TIRE-SMOOTH

$100.99

$

Usually ships in 3-6 days

0

5:3

Toro 114-1640

BUSHING-FLANGE

$13.99

$

In Stock, Qty 20+

0

5:4

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$7.49

$

In Stock, Qty 7

0

5:5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

5:99

Toro 117-1234

TUBE-INNER

$32.99

$

In Stock, only 4 left!

0

6

Toro 104-3667

BUSHING-SPANNER

$20.99

$

In Stock, Qty 20+

0

7

Toro 325-22

SCREW-HH

$8.99

$

In Stock, Qty 6

0

8

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

9

Toro 110-6634-01

CASTER FORK ASM

$108.99

$

Usually ships in 3-6 days

0

10

Toro 10-8110

WASHER-THRUST

$1.49

$

In Stock, Qty 10

0

11

Toro 109-3678

BEARING-BALL

$15.99

$

In Stock, Qty 20+

0

12

Toro 109-3724

WASHER

$3.49

$

In Stock, only 2 left!

0

13

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

14

Toro 115-2566-03

SUPPORT-SEAT

$

$

Not available

15

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 20+

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 115-2632-03

GUARD-REAR, SHIELD
(Superseded to 120-2248-03)

$137.99

$

Usually ships in 3-6 days

0

18

Toro 62-5550

DECAL

$11.99

$

In Stock, only 4 left!

0

19

Toro 105-8278

DECAL

$12.99

$

Usually ships in 3-6 days

0

20

Toro 115-2565-01

GUARD-REAR, TUBE

$

$

Not available

21

Toro 3230-6

Screw-CARR

$1.49

$

In Stock, Qty 9

0

22

Toro 115-5061-01

PLATE-SPACER

$

$

Not available

23

Toro 117-1241

COVER-FAN, RH

$20.99

$

Usually ships in 3-6 days

0

24

Toro 117-1242

COVER-FAN, LH

$15.99

$

Usually ships in 3-6 days

0

25

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

27

Toro 117-5396-03

PLATE-WEIGHT, 60 INCH

$

$

Not available

28

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

29

Toro 322-22

SCREW-HH
(Superseded to 321-6)

$0.99

$

In Stock, Qty 10

0
