74823 (ZX 6000) - Toro 60" Titan Zero-Turn Mower (SN: 290000001 - 290999999) (2009) STARTER ASSEMBLY KOHLER SV830-0016 Parts Diagram

60" Titan Zero-Turn Mower

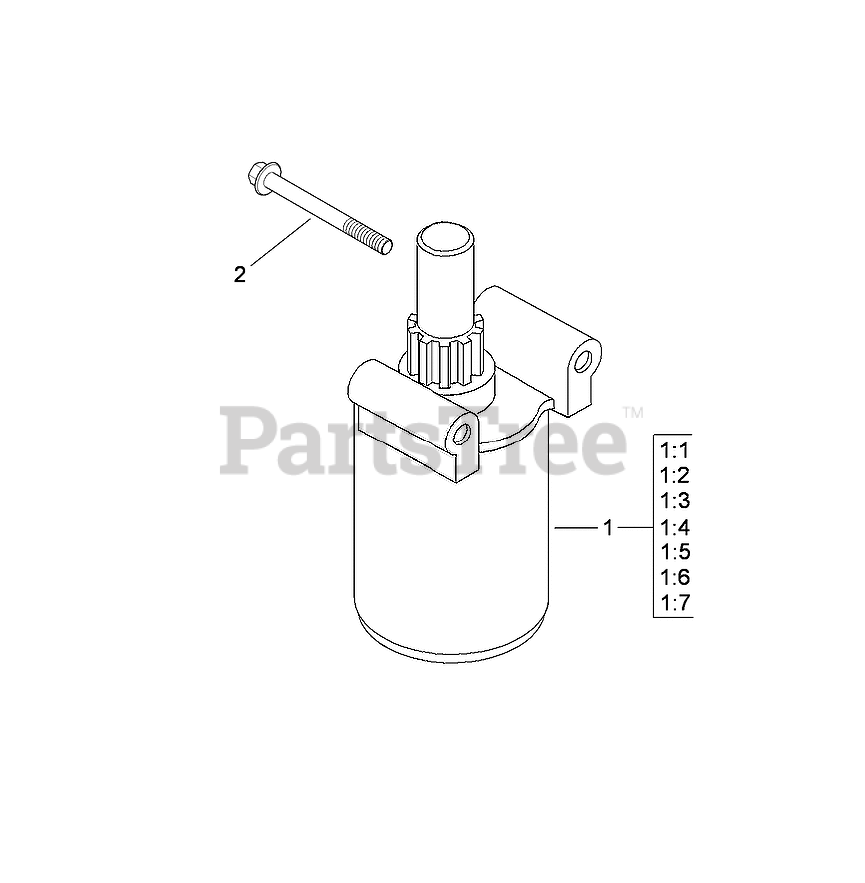

STARTER ASSEMBLY KOHLER SV830-0016 Parts Diagram

  • Title
1

Kohler 32 098 03-S

STARTER ASM
(Superseded to 32 098 04-S)

Note: Obtain parts from www.kohlerplus.com

$228.99

$

In Stock, Qty 20+

0

1:1

Kohler 12 755 39-S

DRIVE KIT

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

1:2

Kohler 12 755 38-S

DRIVE PART KIT (INCLUDES REF 1:3)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

1:3

Kohler 32 141 01-S

RING-RETAINING

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 4 left!

0

1:4

Kohler 12 100 07-S

Nut-Flange, Hex (1/4-20)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

1:5

Kohler 12 243 04-S

COMMUTATOR-CAP, END

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

1:6

Kohler 32 211 01-S

BOLT-THRU

Note: Obtain parts from www.kohlerplus.com

$4.99

$

Usually ships in 2-5 days

0

1:7

Kohler 32 227 01-S

CAP-END, DRIVE

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2

Kohler M-851080-S

SCREW-FLANGE (M8X1.25X80)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 3 left!

0
