74823 (ZX 6000) - Toro 60" Titan Zero-Turn Mower (SN: 290000001 - 290999999) (2009) HANDLE CONTROL ASSEMBLY Parts Diagram

60" Titan Zero-Turn Mower

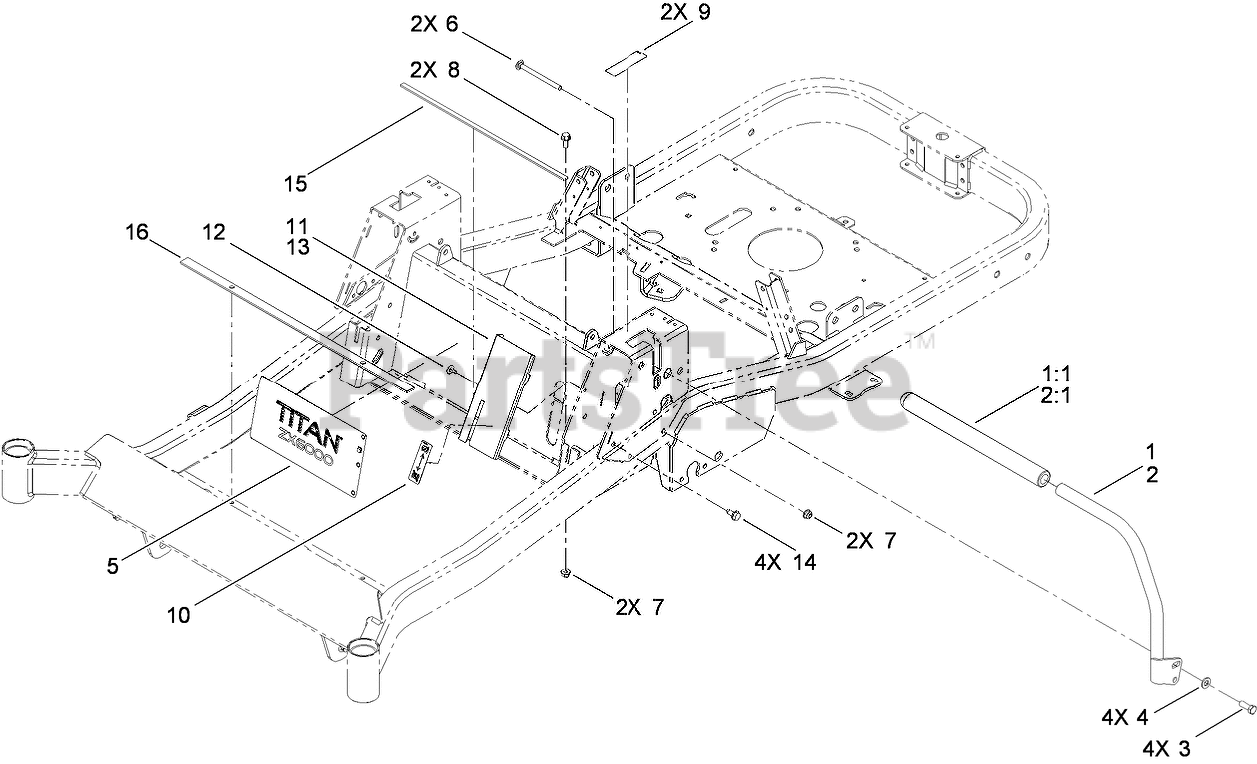

HANDLE CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 117-5338

LH CONTROL HANDLE ASM

$83.99

$

Usually ships in 3-6 days

0

1:1

Toro 108-6187

GRIP

$25.99

$

Usually ships in 3-6 days

0

2

Toro 117-5339

RH CONTROL HANDLE ASM

Note: Not illustrated

$83.99

$

Usually ships in 3-6 days

0

2:1

Toro 108-6187

GRIP

Note: Not illustrated

$25.99

$

Usually ships in 3-6 days

0

3

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

5

Toro 115-9629

DECAL

$31.99

$

Usually ships in 3-6 days

0

6

Toro 106-9758

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

7

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

8

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0

9

Toro 99-8936

DECAL-CONTROL, MOTION

$22.99

$

In Stock, only 2 left!

0

10

Toro 115-9625

DECAL-BRAKE, PARKING

$5.49

$

Usually ships in 3-6 days

0

11

Toro 115-2561-03

COVER-CONTROL, LH

$19.99

$

Usually ships in 3-6 days

0

12

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

13

Toro 117-1255-03

COVER-CONTROL, RH

Note: Not illustrated

$19.99

$

Usually ships in 3-6 days

0

14

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

15

Toro 117-7237

STRIP-VIBRATION, ANTI

$

$

Not available

16

Toro 117-7238

STRIP-VIBRATION, ANTI

$

$

Not available
