74822 (ZX 5400) - Toro 54" Titan Zero-Turn Mower (SN: 290000001 - 290999999) (2009) FUEL SYSTEM ASSEMBLY Parts Diagram

54" Titan Zero-Turn Mower

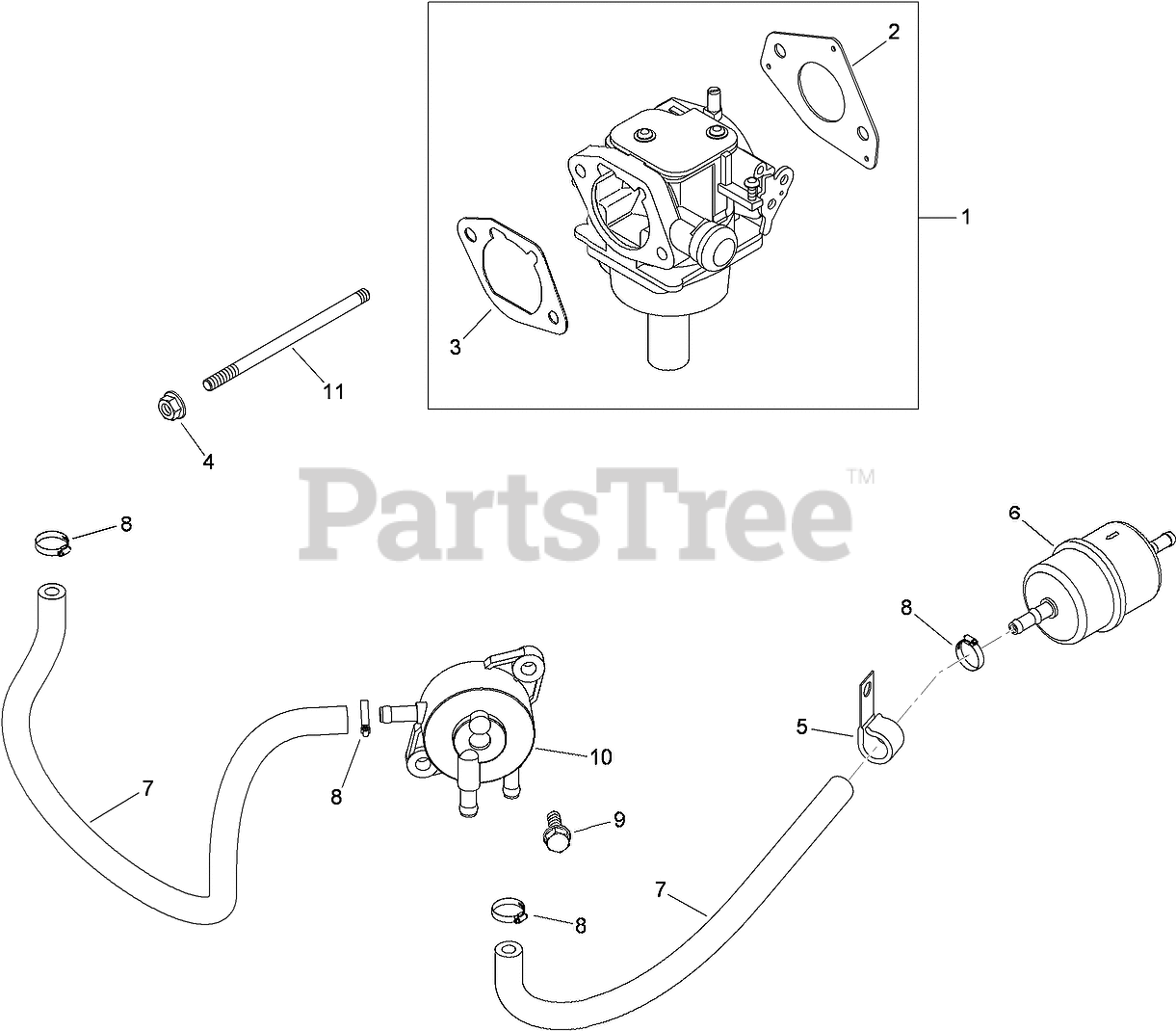

FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Kohler 32 853 11-S

CARBURETOR KIT (19mm KEIHIN) (INCLUDES REF 2, 3)

Note: Obtain parts from www.kohlerplus.com

$359.99

$

Usually ships in 2-5 days

0

2

Kohler 24 041 52-S

GASKET-CARBURETOR
(Superseded to 24 041 91-S)

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, Qty 7

0

3

Kohler 24 041 14-S

GASKET-BASE, AIR CLEANER

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 8

0

4

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 6

0

5

Kohler 47 154 01-S

CLIP-CABLE

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, only 4 left!

0

6

Kohler 24 050 13-S

Filter-Fuel

Note: Obtain parts from www.kohlerplus.com

$12.99

$

In Stock, Qty 20+

0

7

Kohler 25 111 34-S

LINE-FUEL (24.0 CUT TO LENGTH)
(Superseded to 25 111 81-S)

Note: Obtain parts from www.kohlerplus.com

$17.99

$

In Stock, only 4 left!

0

8

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, only 3 left!

0

9

Kohler 24 086 12-S

SCREW-TAP (M6X1.7X18)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

10

Kohler 24 393 16-S

PUMP-FUEL

Note: Obtain parts from www.kohlerplus.com

$32.99

$

In Stock, Qty 18

0

11

Kohler M-629105-S

STUD (M6X1.0X106)
(Superseded to 25 072 25-S)

Note: Obtain parts from www.kohlerplus.com

$14.99

$

In Stock, only 2 left!

0
