74822 (ZX 5400) - Toro 54" Titan Zero-Turn Mower (SN: 290000001 - 290999999) (2009) BLOWER HOUSING ASSEMBLY Parts Diagram

54" Titan Zero-Turn Mower

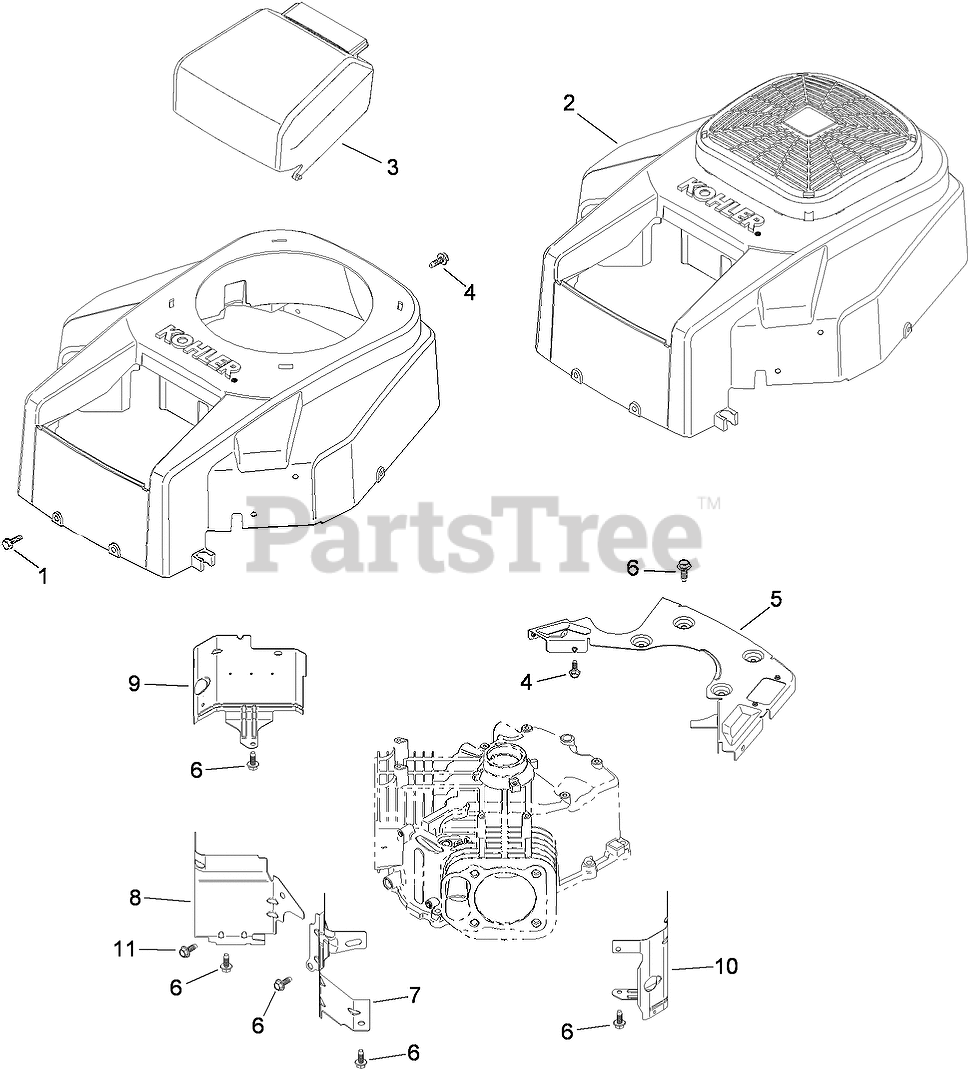

BLOWER HOUSING ASSEMBLY Parts Diagram

  • Title

1

Kohler 24 086 12-S

SCREW-TAP (M6X1.7X18)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2

Kohler 32 027 08-S

BLOWER HOUSING ASM (FIXED GUARD) (INCLUDES 41 037 10-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

3

Kohler 32 096 09-S

COVER-CLEANER, AIR (BLACK)

Note: Obtain parts from www.kohlerplus.com

$26.99

$

Usually ships in 2-5 days

0

4

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

5

Kohler 32 146 05-S

PLATE-BACKING

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

6

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 15

0

7

Kohler 32 063 02-S

BAFFLE-VALLEY (No.2 SIDE)
(Superseded to 24 063 94-S)

Note: Obtain parts from www.kohlerplus.com

$9.49

$

Usually ships in 2-5 days

0

8

Kohler 32 063 03-S

BAFFLE-VALLEY (No.1 SIDE)
(Superseded to 24 063 93-S)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 1 left!

0

9

Kohler 32 063 10-S

BAFFLE-BARREL, CYLINDER (No.1 SIDE)

Note: Obtain parts from www.kohlerplus.com

$15.99

$

Usually ships in 2-5 days

0

10

Kohler 32 063 12-S

BAFFLE-BARREL, CYLINDER (No.2 SIDE)

Note: Obtain parts from www.kohlerplus.com

$19.99

$

Usually ships in 2-5 days

0

11

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 2 left!

0

Kohler 32 113 53-S

DECAL-FIXED GUARD, COURAGE PRO

Note: Obtain parts from www.kohlerplus.com

$3.49

$

Usually ships in 2-5 days

0

Kohler 32 113 53-S

DECAL-FIXED GUARD, COURAGE PRO

Note: Not illustrated

$3.49

$

Usually ships in 2-5 days

0

Kohler 41 037 10-S

NAMEPLATE-SERVICE

Note: Not illustrated

$8.99

$

In Stock, only 4 left!

0

Kohler 41 037 10-S

NAMEPLATE-SERVICE

Note: Obtain parts from www.kohlerplus.com

$8.99

$

In Stock, only 4 left!

0
