74820 (ZX 5000) - Toro 50" Titan Zero-Turn Mower (SN: 310000001 - 310999999) (2010) 50 INCH DECK ASSEMBLY Parts Diagram

50" Titan Zero-Turn Mower

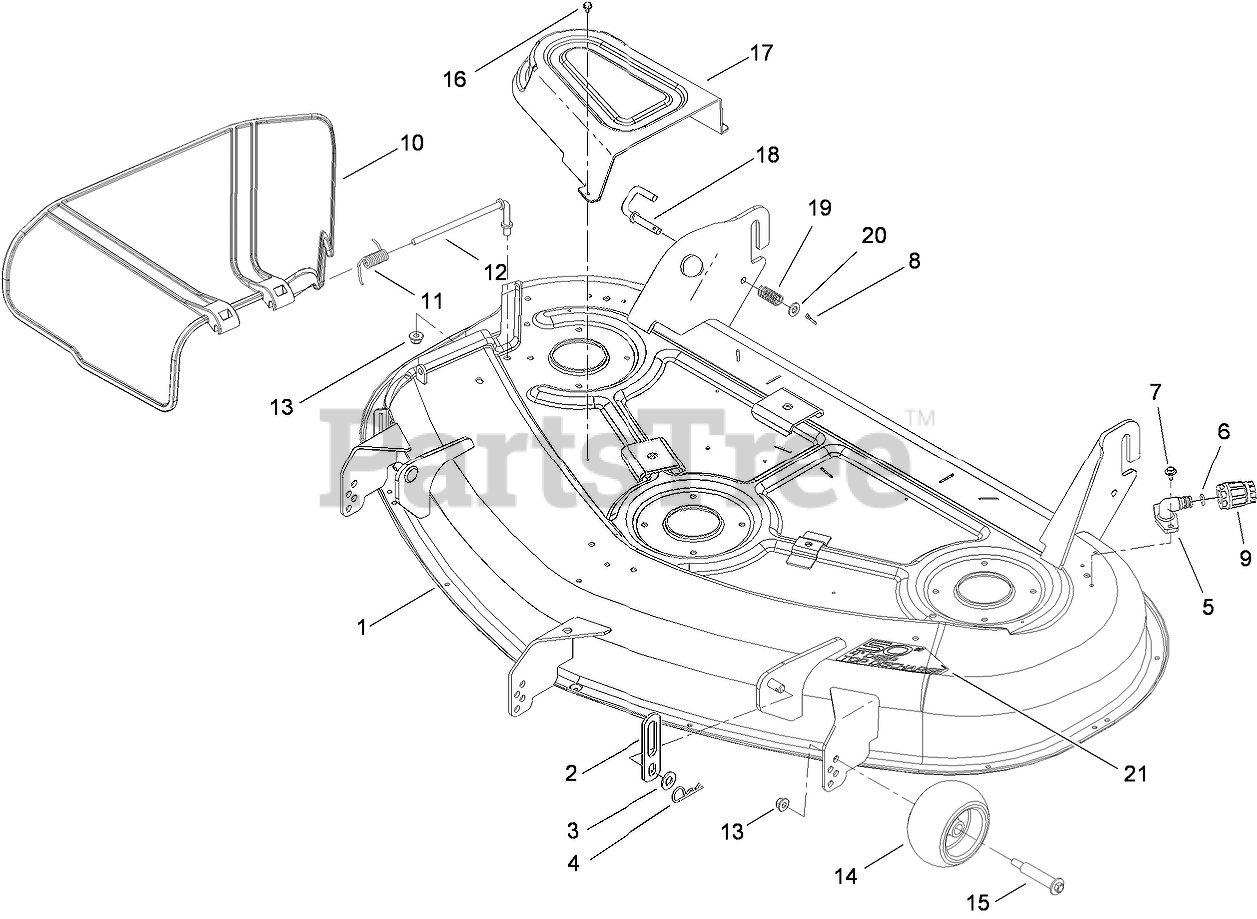

50 INCH DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 117-5373

50 INCH DECK ASM

$

$

Not available

2

Toro 115-2622

LINK-LIFT

$9.99

$

In Stock, only 2 left!

0

3

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

5

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

6

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

7

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

8

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

9

Toro 95-3270

CONNECTOR-HOSE

$23.99

$

In Stock, only 1 left!

0

10

Toro 108-7895

DEFLECTOR

$67.99

$

In Stock, Qty 20+

0

11

Toro 110-6694

SPRING-TORSION

$6.49

$

In Stock, Qty 7

0

12

Toro 112-3950

ROD-PIVOT

$19.99

$

In Stock, only 1 left!

0

13

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

15

Toro 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 12

0

16

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

17

Toro 108-7890

COVER-BELT

$21.99

$

In Stock, only 2 left!

0

18

Toro 115-2470

PIN-LATCH

$15.99

$

Usually ships in 3-6 days

0

19

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

20

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

21

Toro 117-5304

DECAL-50 INCH

$

$

Not available
