74820 (ZX 5000) - Toro 50" Titan Zero-Turn Mower (SN: 290000001 - 290999999) (2009) ENGINE, CLUTCH AND EXHAUST ASSEMBLY Parts Diagram

50" Titan Zero-Turn Mower

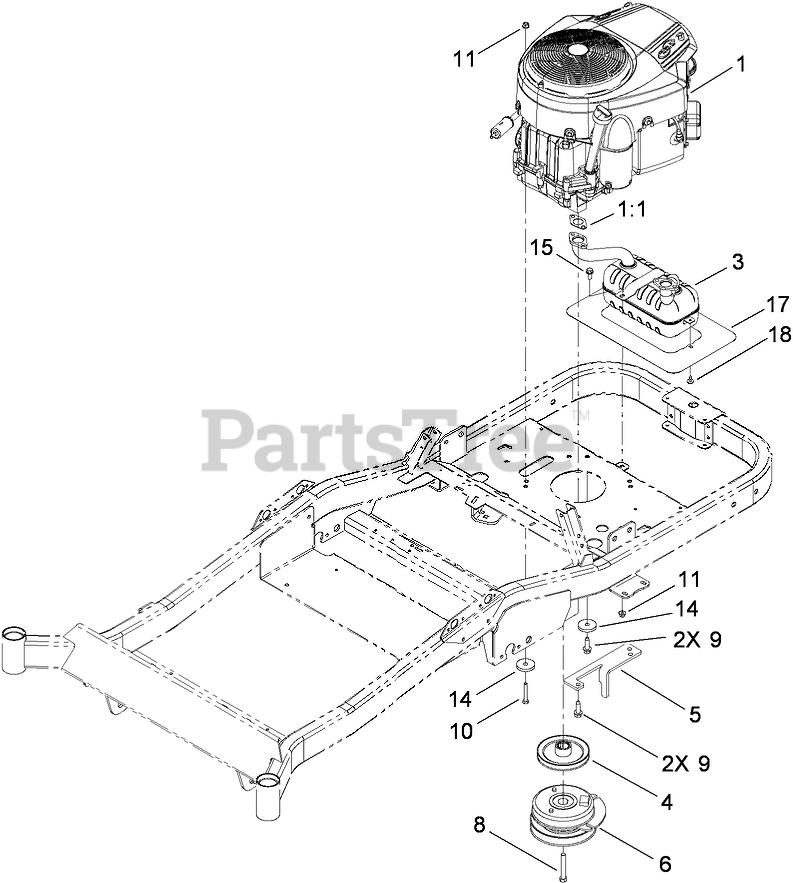

ENGINE, CLUTCH AND EXHAUST ASSEMBLY Parts Diagram

  • Title

1

ENGINE-BRIGGS, 40H777-0129-B1

Note: Not serviced separately

$

$

Not available

1

ENGINE-BRIGGS, 40H777-0129-B1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1:1

Toro 104-3226

GASKET-EXHAUST

$10.99

$

In Stock, Qty 10

0

3

Toro 115-9677

MUFFLER-TWIN, BRIGGS
(Superseded to 117-7464)

$

$

Not available

4

Toro 115-2568

PULLEY-ENGINE
(Superseded to 125-5576)

$118.99

$

Usually ships in 3-6 days

0

5

Toro 117-1269-03

BRACKET-STOP, PTO

$34.99

$

Usually ships in 3-6 days

0

6

Toro 110-6766

CLUTCH-ELECTRIC, PTO

$573.99

$

Usually ships in 3-6 days

0

8

Toro 3212-11

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

9

Toro 32144-109

SCREW-TAPTITE

$4.99

$

In Stock, Qty 7

0

10

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

11

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

14

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, only 2 left!

0

15

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0

17

Toro 117-5331

SHIELD-HEAT

$49.99

$

Usually ships in 3-6 days

0

18

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0
