74815 (Z 5200) - Toro 52" Titan Zero-Turn Mower (SN: 280000001 - 280999999) (2008) FUEL TANK ASSEMBLY Parts Diagram

52" Titan Zero-Turn Mower

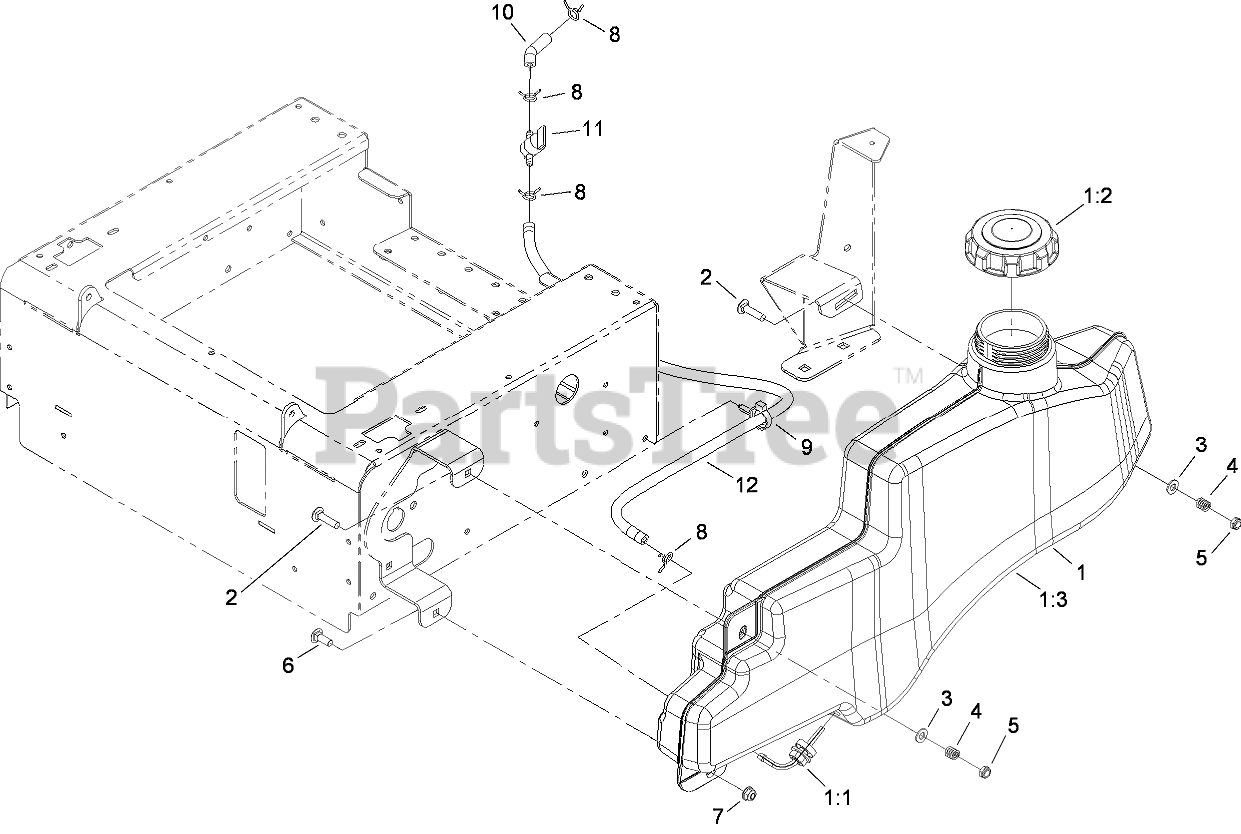

FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 109-5510

FUEL TANK ASM

$264.99

$

Usually ships in 3-6 days

0

1:1

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, only 2 left!

0

1:2

Toro 109-0346

CAP-FUEL, GAS

$21.99

$

In Stock, Qty 16

0

1:3

Toro 109-3412

TANK-FUEL
(Superseded to 109-5510)

$264.99

$

Usually ships in 3-6 days

0

2

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

0

5

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

6

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

7

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

8

Toro 1-303077

CLAMP

$1.49

$

In Stock, Qty 8

0

9

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

10

Toro 109-0304

HOSE-FUEL

$2.49

$

In Stock, Qty 11

0

11

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

12

Toro 109-0286

HOSE-FUEL

$21.99

$

Usually ships in 3-6 days

0
