74815 (Z 5200) - Toro 52" Titan Zero-Turn Mower (SN: 280000001 - 280999999) (2008) CUTTER HOUSING ASSEMBLY NO. 109-8744 Parts Diagram

52" Titan Zero-Turn Mower

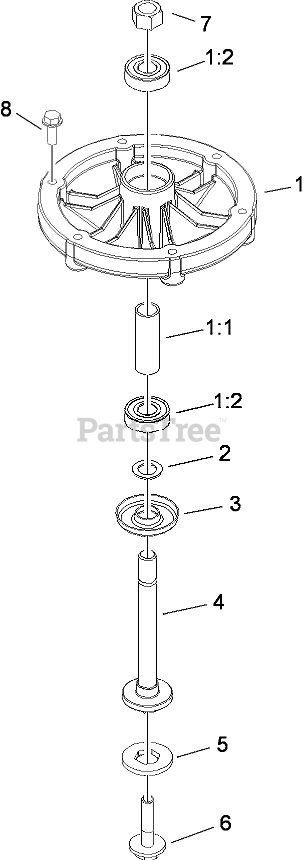

CUTTER HOUSING ASSEMBLY NO. 109-8744 Parts Diagram

  • Title
1

Toro 109-9380

CUTTER HOUSING ASM
(Superseded to 116-4386)

$127.99

$

In Stock, only 2 left!

0

1:1

Toro 62-3661

SPACER

$15.99

$

In Stock, Qty 15

0

1:2

Toro 109-9379

BEARING-BALL

$12.99

$

In Stock, Qty 12

0

2

Toro 80-4380

SPACER

$6.99

$

In Stock, Qty 12

0

3

Toro 80-4360

SHIELD-BEARING

$18.99

$

In Stock, Qty 13

0

4

Toro 109-7431

SPINDLE-HEX PILOT

$37.99

$

In Stock, Qty 5

0

5

Toro 109-7429

WASHER-BLADE DRIVE

$5.49

$

In Stock, Qty 18

0

6

Toro 109-7452

BOLT-SEMS, BLADE
(Superseded to 116-0005)

$7.99

$

In Stock, Qty 20+

0

7

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

8

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0
