74814 (Z 5200) - Toro 52" Titan Zero-Turn Mower (SN: 270000001 - 270999999) (2007) STARTER ASSEMBLY Parts Diagram

52" Titan Zero-Turn Mower

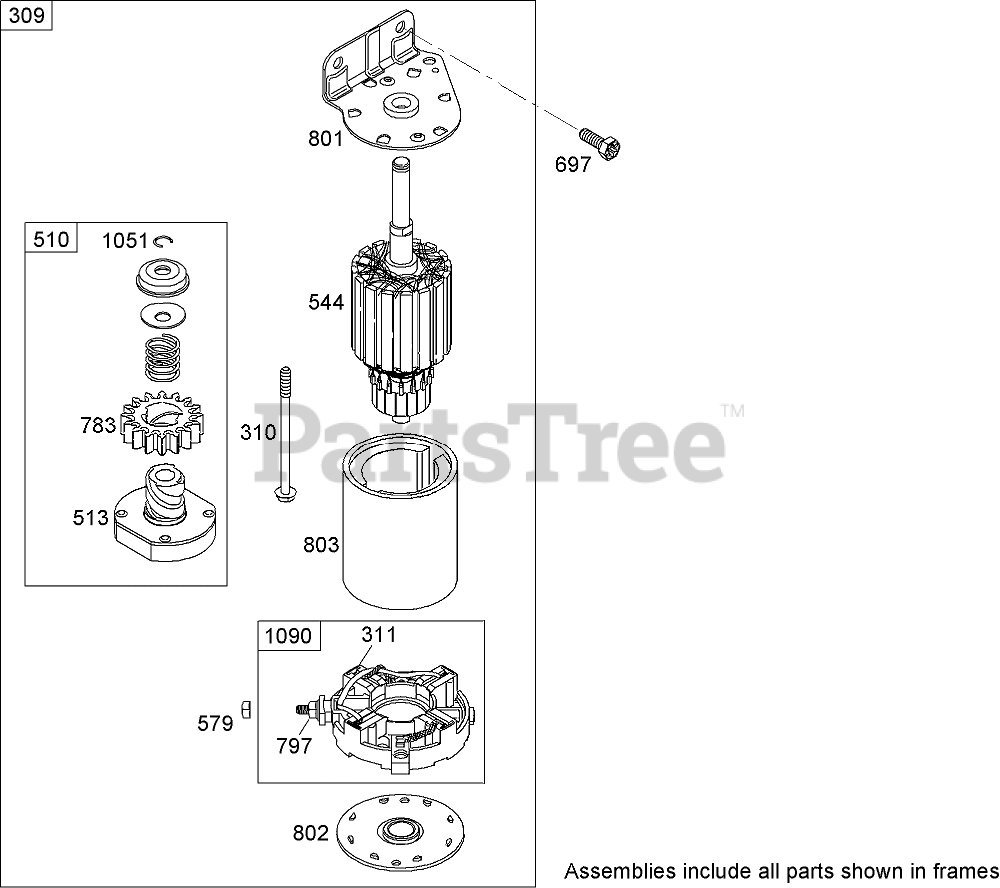

STARTER ASSEMBLY Parts Diagram

  • Title
309

Briggs & Stratton 499521

Motor-Starter
(Superseded to 795121)

Note: Obtain parts from www.briggsandstratton.com

$143.99

$

In Stock, Qty 20+

0

310

Briggs & Stratton 691263

Bolt (Starter Motor)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

311

Briggs & Stratton 497608

Brush Set

Note: Obtain parts from www.briggsandstratton.com

$27.99

$

In Stock, only 3 left!

0

510

Briggs & Stratton 696541

Drive-Starter
(Superseded to 844717)

Note: Obtain parts from www.briggsandstratton.com

$90.99

$

In Stock, only 4 left!

0

513

Briggs & Stratton 692024

Clutch-Drive

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

In Stock, only 2 left!

0

544

Armature-Starter (Service with 499521 Starter Motor)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

579

Briggs & Stratton 691029

Nut (Starter Cable)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 690372

Screw (Starter Motor)
(Superseded to 791680)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 6

0

783

Briggs & Stratton 695708

Gear-Pinion

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 2 left!

0

797

Briggs & Stratton 693167

Nut (Brush Retainer)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 691283

Cap-Drive

Note: Obtain parts from www.briggsandstratton.com

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 691286

Cap-End

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

Usually ships in 2-12 days

0

803

Housing-Starter (Service with 499521 Starter Motor)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1051

Briggs & Stratton 691265

Ring-Retaining

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 7

0

1090

Briggs & Stratton 691293

Retainer-Brush

Note: Obtain parts from www.briggsandstratton.com

$29.99

$

In Stock, Qty 5

0
