74814 (Z 5200) - Toro 52" Titan Zero-Turn Mower (SN: 270000001 - 270999999) (2007) SEAT ASSEMBLY Parts Diagram

52" Titan Zero-Turn Mower

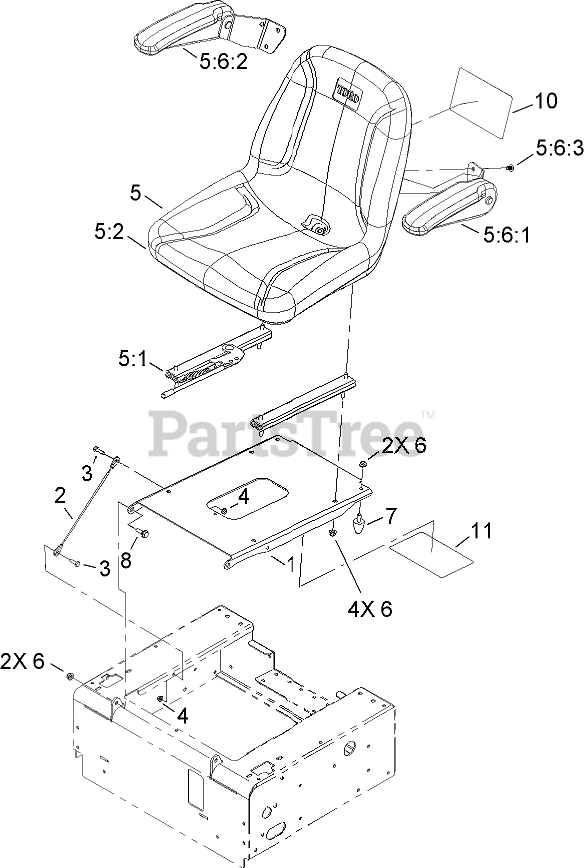

SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 106-6916

SCREW-HH

$

$

Not available

2

Toro 109-2628

CABLE-STOP, SEAT

$19.99

$

In Stock, only 1 left!

0

3

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

5

SEAT ASM

$

$

Not available

5:1

Toro 107-1880

Seat Track Kit

$364.99

$

Usually ships in 3-6 days

0

5:2

Toro 109-6381

SEAT

$770.99

$

Usually ships in 3-6 days

0

5:6:1

Toro 110-6569

LH ARMREST KIT

$

$

Not available

5:6:2

Toro 110-6570

RH ARMREST KIT

$147.99

$

Usually ships in 3-6 days

0

5:6:3

Toro 108-6179

SCREW-HSBH

$13.99

$

Usually ships in 3-6 days

0

5:6

ARMREST KIT

Note: Not serviced separately

$

$

Not available

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

7

Toro 103-9376

BUMPER-SEAT

$

$

Not available

8

Toro 109-6564

PIN-SEAT PIVOT

$

$

Not available

10

Toro 99-2385

DECAL

$4.99

$

In Stock, only 2 left!

0

11

Toro 109-6016

DECAL-SERVICE AID

$19.99

$

Usually ships in 3-6 days

0
