74814 (Z 5200) - Toro 52" Titan Zero-Turn Mower (SN: 270000001 - 270999999) (2007) MOTION CONTROL AND BRAKE ASSEMBLY Parts Diagram

52" Titan Zero-Turn Mower

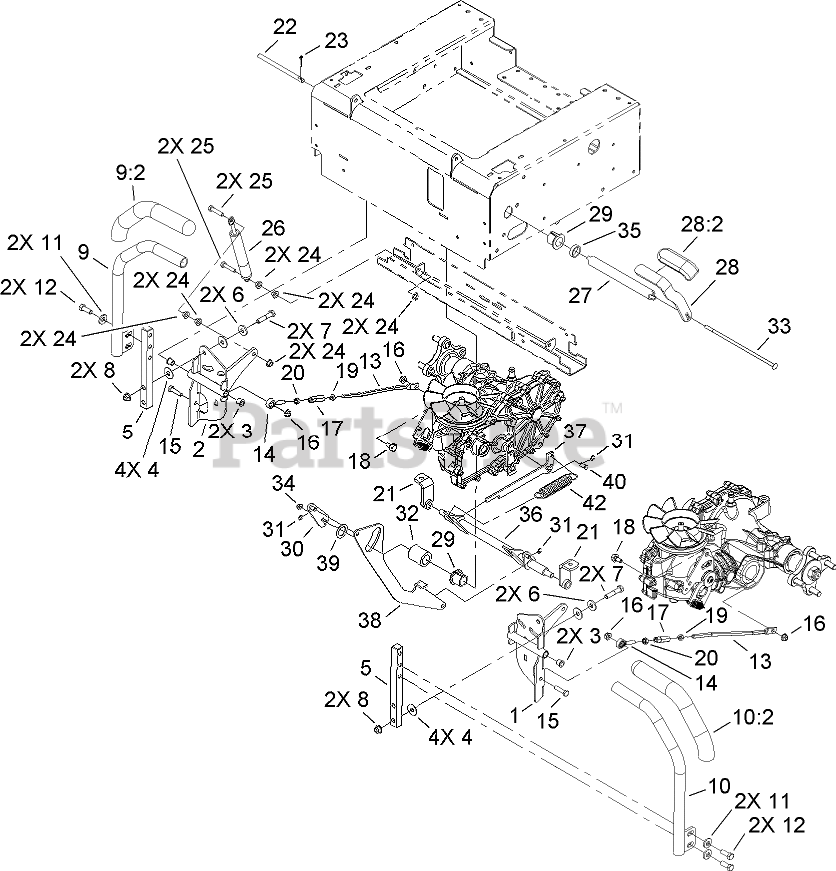

MOTION CONTROL AND BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 109-6518

LH MOTION CONTROL PIVOT ASM
(Superseded to 109-6915)

$147.99

$

Usually ships in 3-6 days

0

2

Toro 109-6519

RH MOTION CONTROL PIVOT ASM
(Superseded to 109-6914)

$147.99

$

Usually ships in 3-6 days

0

3

Toro 103-9928

BEARING

$7.99

$

In Stock, Qty 11

0

4

Toro 52-2900

WASHER-PLASTIC

$1.49

$

In Stock, Qty 6

0

5

Toro 109-3689

POST-LEVER MOUNT

$56.99

$

Usually ships in 3-6 days

0

6

Toro 5-0838

WASHER

$4.99

$

In Stock, only 1 left!

0

7

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 109-6197

RH LEVER GRIP ASM
(Superseded to 109-7350)

$212.99

$

Usually ships in 3-6 days

0

9:2

Toro 109-5192

GRIP-CONTROL LEVER

$21.99

$

Usually ships in 3-6 days

0

10

Toro 109-6202

LH LEVER GRIP ASM
(Superseded to 109-7350)

$212.99

$

Usually ships in 3-6 days

0

10:2

Toro 109-5192

GRIP-CONTROL LEVER

$21.99

$

Usually ships in 3-6 days

0

11

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

12

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

13

Toro 109-3414

ROD-STEERING

$13.99

$

Usually ships in 3-6 days

0

14

Toro 2411-53

BEARING-ROD END, LH

$37.99

$

In Stock, only 2 left!

0

15

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

17

Toro 109-3728

NUT-ROD ADJUSTMENT

$45.99

$

Usually ships in 3-6 days

0

18

Toro 37-8771

BOLT-SHOULDER

$5.49

$

In Stock, only 3 left!

0

19

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

20

Toro 3220-20

NUT-JAM

$2.49

$

Usually ships in 3-6 days

0

21

Toro 109-6220

BRAKE PIVOT ASM

$42.99

$

Usually ships in 3-6 days

0

22

Toro 109-3705

PIN-CONTROL PIVOT

$17.99

$

In Stock, only 2 left!

0

23

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

24

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Toro 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

26

Toro 109-5957

DAMPER-MOTION CONTROL

$86.99

$

In Stock, Qty 5

0

27

Toro 109-5825

TUBE-BRAKE PIVOT

$

$

Not available

28

Toro 109-5918

LEVER ASM

$

$

Not available

28:2

Toro 1-633268

GRIP-LEVER

$14.99

$

In Stock, Qty 5

0

29

Toro 107-7581

BUSHING-FLANGE, KEYED

$6.99

$

Usually ships in 3-6 days

0

30

Toro 109-5824

BELLCRANK ASM

$45.99

$

Usually ships in 3-6 days

0

31

Toro 701197

E-RING

$3.49

$

Usually ships in 3-6 days

0

32

Toro 109-5834

SPACER

$9.49

$

Usually ships in 3-6 days

0

33

Toro 109-5868

BOLT-CARR

$

$

Not available

34

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

35

Toro 109-5914

SPACER

$

$

Not available

36

Toro 109-5828

BRAKE SHAFT ASM
(Superseded to 109-8765)

$

$

Not available

37

Toro 109-5832

PLATE-SPRING ANCHOR
(Superseded to 109-6907)

$20.99

$

Usually ships in 3-6 days

0

38

Toro 109-5833

ARM-BRAKE

$62.99

$

Usually ships in 3-6 days

0

39

Toro 99-4958

SPACER

$2.99

$

Usually ships in 3-6 days

0

40

Toro 1-808278

PIN-CLEVIS

$

$

Not available

42

Toro 1-603693

SPRING-EXTENSION

$14.99

$

In Stock, Qty 5

0
