74814 (Z 5200) - Toro 52" Titan Zero-Turn Mower (SN: 270000001 - 270999999) (2007) FRAME ASSEMBLY Parts Diagram

52" Titan Zero-Turn Mower

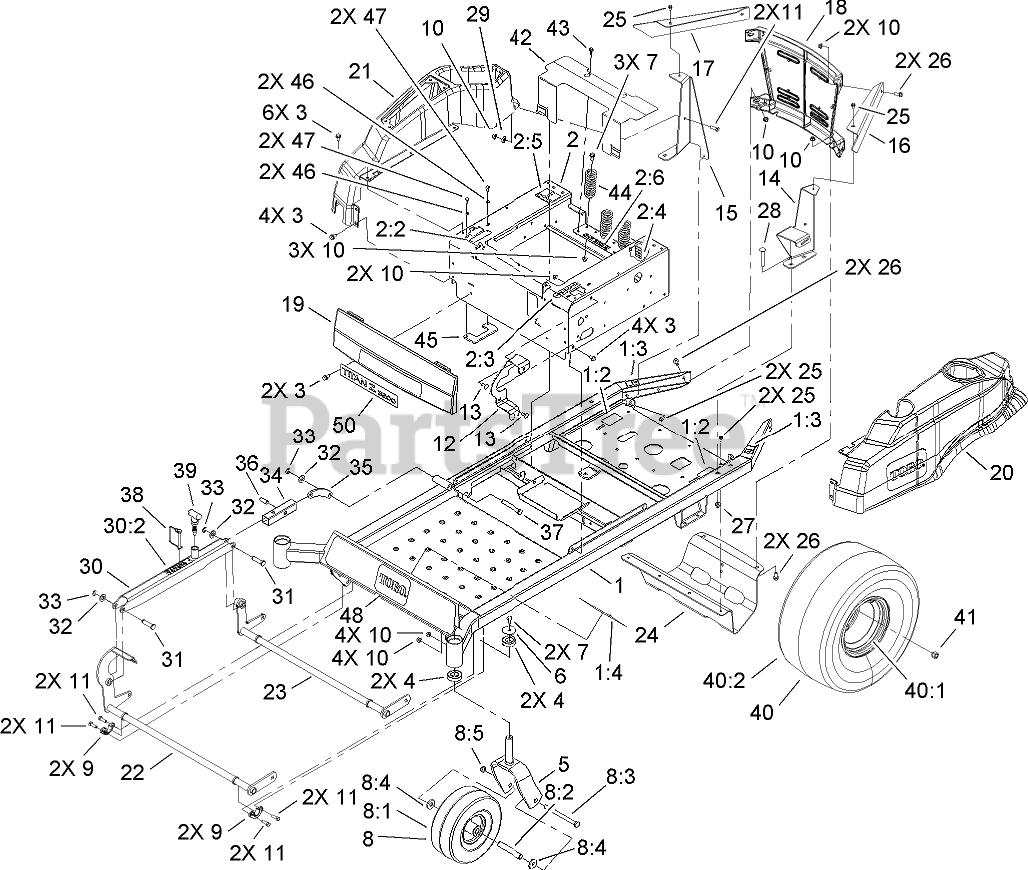

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 109-6257

FRAME ASM

$1903.99

$

Usually ships in 3-6 days

0

1:2

Toro 109-6008

DECAL-DRIVE RELEASE

$4.49

$

Usually ships in 3-6 days

0

1:3

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 2 left!

0

1:4

Toro 109-6013

DECAL-SAFETY WARNING
(Superseded to 109-8965)

$18.99

$

Usually ships in 3-6 days

0

2

Toro 109-6404

SEAT BOX ASM

$

$

Not available

2:2

Toro 99-8936

DECAL-CONTROL, MOTION

$20.99

$

In Stock, only 2 left!

0

2:3

Toro 109-6009

DECAL-CONTROL, BRAKE
(Superseded to 109-9173)

$5.49

$

Usually ships in 3-6 days

0

2:4

Toro 109-6011

DECAL-FUSE BLOCK

$5.49

$

In Stock, only 1 left!

0

2:5

Toro 109-6014

DECAL-ROUTING, BELT

$6.49

$

In Stock, only 4 left!

0

2:6

Toro 109-6210

DECAL-DANGER

$6.49

$

Usually ships in 3-6 days

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

5

Toro 109-6218-01

CASTER FORK ASM
(Superseded to 116-0100-01)

$133.99

$

Usually ships in 3-6 days

0

6

Toro 109-3724

WASHER

$3.49

$

In Stock, only 4 left!

0

7

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0

8

Toro 109-6405

CASTER WHEEL ASM

$204.99

$

Usually ships in 3-6 days

0

8:1

Toro 105-1863

WHEEL-CASTER

$96.99

$

In Stock, only 4 left!

0

8:2

Toro 104-3667

BUSHING-SPANNER

$19.99

$

In Stock, Qty 12

0

8:3

Toro 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

8:4

Toro 92-2651

WASHER

$4.99

$

In Stock, only 3 left!

0

8:5

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

9

Toro 109-3667

BEARING-FLANGE

$7.99

$

In Stock, Qty 6

0

10

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 109-6045-03

BRACKET-TANK MOUNT

$

$

Not available

13

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

14

Toro 109-6867-03

BRACKET-REAR TANK, LH

$

$

Not available

15

Toro 109-3406-03

BRACKET-REAR CONSOLE, RH

$

$

Not available

16

Toro 109-3381-03

GUARD-ENGINE, LH

$36.99

$

Usually ships in 3-6 days

0

17

Toro 109-3391-03

GUARD-ENGINE, RH

$36.99

$

Usually ships in 3-6 days

0

18

Toro 109-5444-03

CASTING-REAR

$153.99

$

Usually ships in 3-6 days

0

19

Toro 109-5432

PANEL-FRONT

$45.99

$

Usually ships in 3-6 days

0

20

Toro 109-5441

FENDER-LH

$

$

Not available

21

Toro 109-5442

FENDER-RH

$

$

Not available

22

Toro 109-3421-03

FRONT SHAFT ASM
(Superseded to 109-8870-03)

$218.99

$

Usually ships in 3-6 days

0

23

Toro 109-3422-03

REAR SHAFT ASM
(Superseded to 109-8871-03)

$

$

Not available

24

Toro 109-5392-03

GUARD-MUFFLER
(Superseded to 114-1658-03)

$176.99

$

In Stock, only 1 left!

0

25

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 5

0

26

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 18

0

27

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

28

Toro 3231-9

SCREW-CARR

$2.49

$

In Stock, Qty 7

0

29

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 109-6396

HEIGHT ADJUST ASM

$

$

Not available

30:2

Toro 109-6010

DECAL-CUT HEIGHT
(Superseded to 109-8759)

$6.49

$

Usually ships in 3-6 days

0

31

Toro 109-5819

PIN-CLEVIS

$11.99

$

Usually ships in 3-6 days

0

32

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

34

Toro 109-5822

STOP-HEIGHT ADJUST
(Superseded to 109-8755)

$

$

Not available

35

Toro 109-5814

ARM-FLOAT LINK

$17.99

$

Usually ships in 3-6 days

0

36

Toro 109-5818

PIN-PIVOT

$5.49

$

In Stock, only 1 left!

0

37

Toro 109-6172

PIN-CLEVIS

$23.99

$

Usually ships in 3-6 days

0

38

Toro 93-4696

PIN-HITCH

$10.99

$

Usually ships in 3-6 days

0

39

Toro 109-6177

PIN-SPRING

$53.99

$

Usually ships in 3-6 days

0

40

Toro 109-5268

4 PLY WHEEL AND TIRE ASM

$321.99

$

Usually ships in 3-6 days

0

40:1

Toro 109-5270

WHEEL

$125.99

$

In Stock, only 1 left!

0

40:2

Toro 109-5269

TIRE-4 PLY

$226.99

$

Usually ships in 3-6 days

0

41

Toro 242-50

NUT-LUG

$1.99

$

In Stock, Qty 20+

0

42

Toro 109-6190-03

COVER-HYDRO FAN

$

$

Not available

43

Toro 99-6810

SCREW-HHF

$3.49

$

In Stock, only 1 left!

0

44

Toro 92-7054

SPRING-COMPRESSION

$20.99

$

In Stock, Qty 10

0

45

Toro 109-6214

STOP-MOTION CONTROL

$36.99

$

Usually ships in 3-6 days

0

46

Toro 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 14

0

47

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

48

Toro 109-5865

DECAL-FRONT PANEL, TORO

$25.99

$

Usually ships in 3-6 days

0

50

Toro 109-5867

DECAL

$17.99

$

Usually ships in 3-6 days

0
