74814 (Z 5200) - Toro 52" Titan Zero-Turn Mower (SN: 270000001 - 270999999) (2007) CRANKCASE ASSEMBLY Parts Diagram

52" Titan Zero-Turn Mower

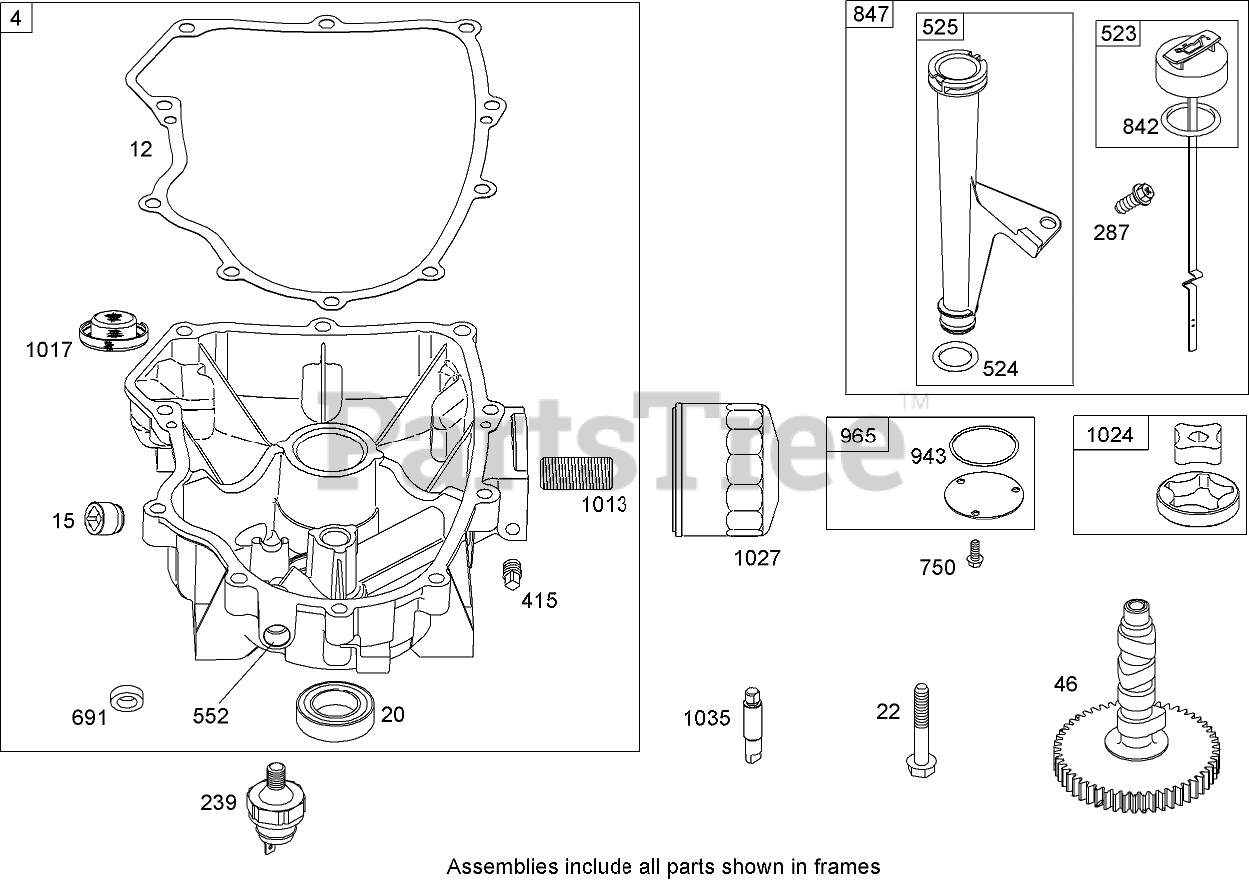

CRANKCASE ASSEMBLY Parts Diagram

  • Title

4

Briggs & Stratton 699747

Sump-Engine
(Superseded to 796307)

Note: Obtain parts from www.briggsandstratton.com

$278.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 697227

Gasket-Crankcase
(Superseded to 594195)

Note: Obtain parts from www.briggsandstratton.com

$37.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 697227

Gasket-Crankcase
(Superseded to 594195)

Note: Included in Engine Gasket Set (Ref. No. 358)

$37.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 690946

Plug-Drain, Oil

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 14

0

20

Briggs & Stratton 791892

Seal-Oil (P-T-O Side)
(Superseded to 795387)

Note: Included in Engine Gasket Set (Ref. No. 358)

$7.49

$

In Stock, Qty 20+

0

20

Briggs & Stratton 791892

Seal-Oil (P-T-O Side)
(Superseded to 795387)

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 694966

Screw (Crankcase Sump Cover)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 792555

Camshaft
(Superseded to 797242)

Note: Obtain parts from www.briggsandstratton.com

$122.99

$

In Stock, Qty 16

0

239

Briggs & Stratton 697049

Switch-Pressure, Oil

Note: Obtain parts from www.briggsandstratton.com

$28.99

$

In Stock, only 1 left!

0

287

Briggs & Stratton 691108

Screw (Dipstick and Tube Asm)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

415

Briggs & Stratton 690283

Plug-Oil
(Superseded to 794903)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 691036

Dipstick
(Superseded to 594528)

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 691032

Seal, O-Ring (Dipstick Tube)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 691032

Seal, O-Ring (Dipstick Tube)

Note: Included in Engine Gasket Set (Ref. No. 358)

$5.99

$

In Stock, only 1 left!

0

525

Briggs & Stratton 691037

Tube-Dipstick
(Superseded to 597129)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

In Stock, only 1 left!

0

552

Briggs & Stratton 690552

Bushing-Crank, Governor

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, Qty 9

0

691

Briggs & Stratton 690657

Seal-Shaft, Governor
(Superseded to 790574)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 20+

0

691

Briggs & Stratton 690657

Seal-Shaft, Governor
(Superseded to 790574)

Note: Included in Engine Gasket Set (Ref. No. 358)

$5.99

$

In Stock, Qty 20+

0

750

Briggs & Stratton 696999

Screw (Oil Pump Cover)

Note: Obtain parts from www.briggsandstratton.com

$29.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691031

Seal, O-Ring (Dipstick)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 20+

0

842

Briggs & Stratton 691031

Seal, O-Ring (Dipstick)

Note: Included in Engine Gasket Set (Ref. No. 358)

$5.49

$

In Stock, Qty 20+

0

847

Briggs & Stratton 499602

Dipstick and Tube ASM
(Superseded to 594609)

Note: Obtain parts from www.briggsandstratton.com

$47.99

$

In Stock, only 2 left!

0

943

Briggs & Stratton 690589

Seal, O-Ring (Oil Pump Cover)

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, Qty 20+

0

943

Briggs & Stratton 690589

Seal, O-Ring (Oil Pump Cover)

Note: Included in Engine Gasket Set (Ref. No. 358)

$8.99

$

In Stock, Qty 20+

0

965

Briggs & Stratton 499613

Cover-Pump, Oil

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, Qty 10

0

1013

Briggs & Stratton 690954

Nipple-Filter, Oil

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 5

0

1017

Briggs & Stratton 690770

Screen-Pump, Oil

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1024

Briggs & Stratton 499054

Pump-Oil
(Superseded to 794644)

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

Usually ships in 2-12 days

0

1027

Briggs & Stratton 696854

Filter?Oil

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, Qty 20+

0

1035

Briggs & Stratton 691042

Shaft-Pump, Oil
(Superseded to 794644)

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

Usually ships in 2-12 days
