74814 (Z 5200) - Toro 52" Titan Zero-Turn Mower (SN: 270000001 - 270999999) (2007) 52 INCH BLADE & DISCHARGE ASSEMBLY Parts Diagram

52" Titan Zero-Turn Mower

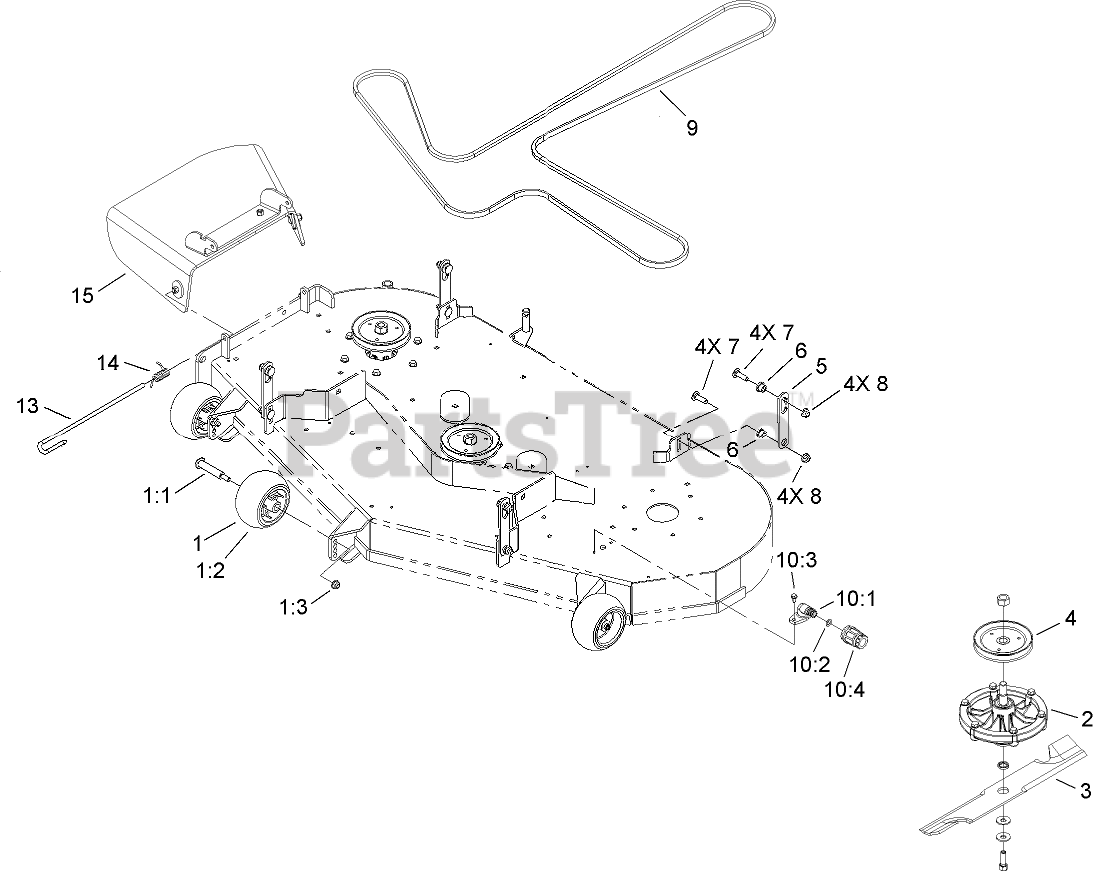

52 INCH BLADE & DISCHARGE ASSEMBLY Parts Diagram

  • Title

1

Toro 109-6388

ANTI-SCALP ROLLER KIT

$43.99

$

In Stock, only 4 left!

0

1:1

Toro 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 12

0

1:2

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

1:3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

2

Toro 109-6394

COMPLETE CUTTER HOUSING ASM
(Superseded to 116-5712)

$183.99

$

In Stock, Qty 10

0

3

Toro 109-6873

BLADE-NOTCHED
(Superseded to 103-6402-S)

$30.99

$

In Stock, Qty 20+

0

4

Toro 109-3671

PULLEY-DECK
(Superseded to 116-4874)

$95.99

$

In Stock, only 1 left!

0

5

Toro 109-3410

HANGER-DECK

$10.99

$

In Stock, only 3 left!

0

6

Toro 103-3900

SPACER-STRUT

$7.99

$

In Stock, Qty 13

0

7

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 109-3661

BELT
(Superseded to 109-3661-SL)

$91.99

$

Usually ships in 3-6 days

0

10:1

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

10:2

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

10:3

Toro 93-6083

SCREW-HWH

$1.49

$

In Stock, Qty 12

0

10:4

Toro 95-3270

CONNECTOR-HOSE

$23.99

$

In Stock, only 1 left!

0

10

Toro 109-6393

WASHOUT PORT KIT

Note: Not illustrated

$

$

Not available

13

Toro 109-5152

PIN-CHUTE
(Superseded to 109-8854)

$15.99

$

In Stock, only 1 left!

0

14

Toro 57-6950

SPRING

$26.99

$

In Stock, only 1 left!

0

15

Toro 114-1651

RUBBER DEFLECTOR ASM

$252.99

$

Usually ships in 3-6 days

0
