74812 (Z 4800) - Toro 48" Titan Zero-Turn Mower (SN: 280000001 - 280999999) (2008) ENGINE ASSEMBLY Parts Diagram

48" Titan Zero-Turn Mower

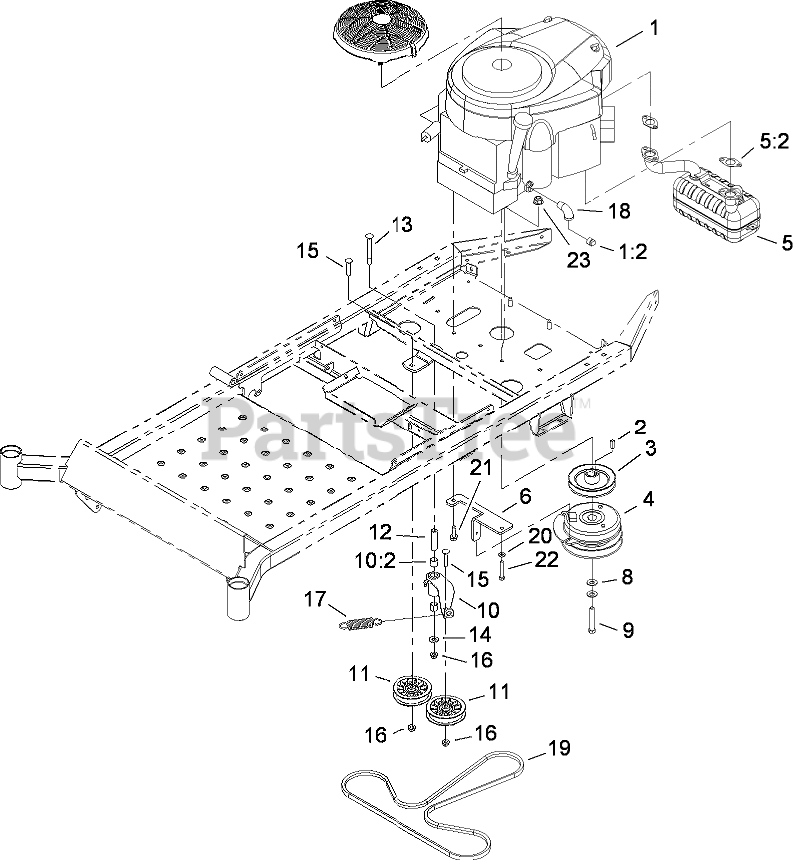

ENGINE ASSEMBLY Parts Diagram

  • Title

1

ENGINE-BRIGGS AND STRATTON, 44K777-0125-G1

Note: Not serviced separately

$

$

Not available

1

ENGINE-BRIGGS AND STRATTON, 44K777-0125-G1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1:2

Toro 281-2

PLUG-PIPE, SQH

$2.99

$

Usually ships in 3-6 days

0

2

Toro 5-7280

KEY

$5.99

$

In Stock, Qty 11

0

3

Toro 109-3386

SHEAVE-SPLIT STEEL

$56.99

$

Usually ships in 3-6 days

0

4

Toro 110-6766

CLUTCH-ELECTRIC, PTO

$573.99

$

Usually ships in 3-6 days

0

5

Toro 109-8851

MUFFLER ASM

$164.99

$

In Stock, only 3 left!

0

5:2

Toro 104-3226

GASKET-EXHAUST

$11.99

$

In Stock, Qty 10

0

6

Toro 109-8855-03

ANCHOR-CLUTCH

$43.99

$

Usually ships in 3-6 days

0

8

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

9

Toro 3212-11

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

10

Toro 109-9162

IDLER ARM ASM

$147.99

$

Usually ships in 3-6 days

0

10:2

Toro 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

11

Toro 109-3397

PULLEY-IDLER, FLAT

$23.99

$

In Stock, Qty 20+

0

12

Toro 1-603384

BUSHING-PIVOT, IDLER

$13.99

$

In Stock, Qty 20+

0

13

Toro 3231-11

SCREW-CARR

$5.49

$

In Stock, Qty 12

0

14

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

15

Toro 3231-5

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

16

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, Qty 20+

0

18

Toro 1-403124

ELBOW-90 DEG

$

$

Not available

19

Toro 109-3388

BELT
(Superseded to 109-3388-SL)

$45.99

$

Usually ships in 3-6 days

0

20

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 3 left!

0

21

Toro 32144-109

SCREW-TAPTITE

$4.99

$

In Stock, Qty 7

0

22

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
