74812 (Z 4800) - Toro 48" Titan Zero-Turn Mower (SN: 270000001 - 270999999) (2007) ELECTRICAL ASSEMBLY Parts Diagram

48" Titan Zero-Turn Mower

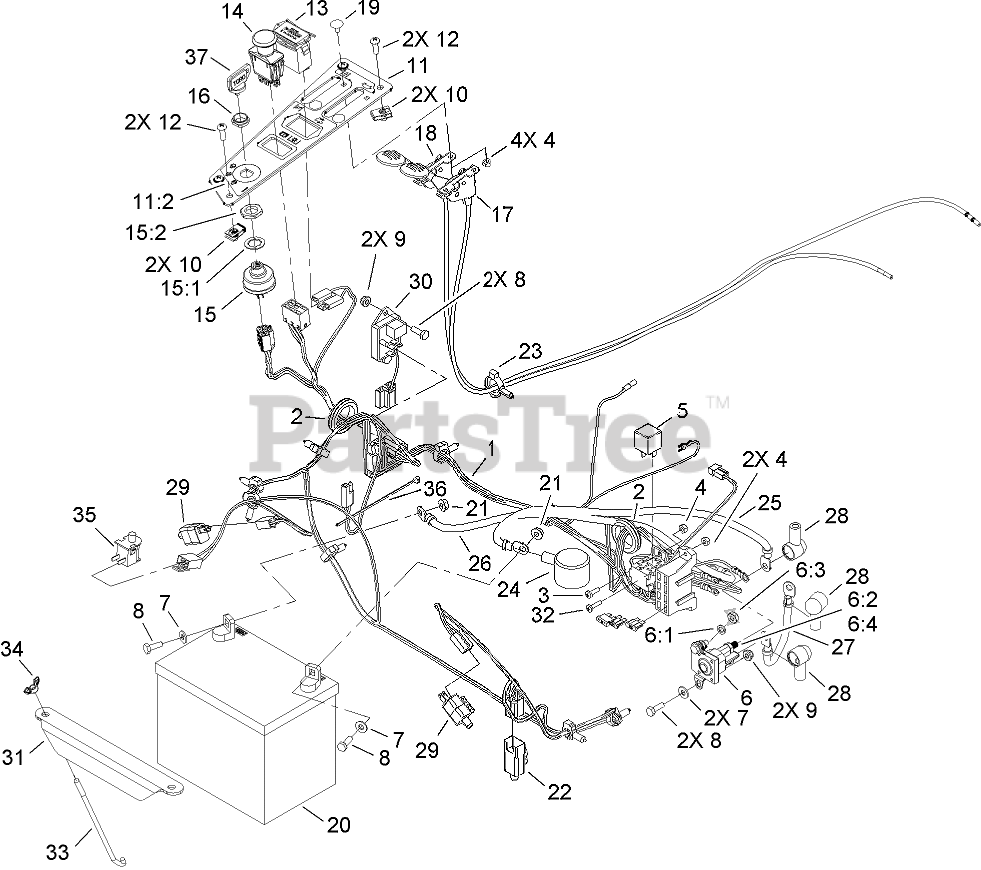

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 109-5570

HARNESS

$604.99

$

Usually ships in 3-6 days

0

2

Toro 240-3

GROMMET-RUBBER

$18.99

$

In Stock, only 1 left!

0

3

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

4

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 1-643275

RELAY

$23.99

$

In Stock, Qty 20+

0

6

Toro 1-513075

SWITCH-SOLENOID
(Superseded to 117-1197)

$45.99

$

In Stock, Qty 20+

0

6:1

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

6:2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

6:3

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

6:4

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

7

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

11

Toro 109-6398

CONTROL PANEL ASM

$67.99

$

Usually ships in 3-6 days

0

11:2

Toro 109-6029

DECAL-CONSOLE

$25.99

$

Usually ships in 3-6 days

0

12

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

13

Toro 1-513374

METER-HOUR
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

14

Toro 103-5221

SWITCH-PTO

$58.99

$

In Stock, Qty 20+

0

15

Toro 103-0206

SWITCH-STARTING, KEY
(Superseded to 109-4736)

$42.99

$

In Stock, Qty 20+

0

15:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 20+

0

15:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

16

Toro 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 20+

0

17

Toro 109-3987

CONTROL-THROTTLE

$38.99

$

In Stock, only 1 left!

0

18

Toro 109-5607

CONTROL-CHOKE
(Superseded to 109-8747)

$35.99

$

In Stock, only 2 left!

0

19

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

20

Toro 104-2491

BATTERY
(Superseded to 104-8162)

$

$

Not available

21

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

22

Toro 99-7408

SWITCH-REVERSE

$28.99

$

In Stock, Qty 12

0

23

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

24

Toro 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, only 3 left!

0

25

Toro 1-513053

CABLE-BATTERY, POSITIVE
(Superseded to 109-7653)

$35.99

$

In Stock, only 1 left!

0

26

Toro 103-0705

CABLE-GROUND, NEGATIVE

$19.99

$

In Stock, only 2 left!

0

27

Toro 1-633306

CABLE-STARTER, POSITIVE
(Superseded to 109-7620)

$27.99

$

In Stock, only 1 left!

0

28

Toro 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

29

Toro 110-6765

SWITCH

$13.99

$

In Stock, Qty 20+

0

30

Toro 103-5218

MODULE-DELAY, SEAT

$45.99

$

In Stock, only 3 left!

0

31

Toro 103-1311-03

HOLDDOWN-BATTERY

$27.99

$

Usually ships in 3-6 days

0

32

Toro 3250-13

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

33

Toro 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 20+

0

34

Toro 1-543792

WINGNUT

$6.49

$

In Stock, Qty 10

0

35

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

36

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

37

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0
