74806 (ZX 525) - Toro 52" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) AIR FILTER AND MUFFLER ASSEMBLY KAWASAKI FH580V-CS13-R Parts Diagram

52" TimeCutter Zero-Turn Mower

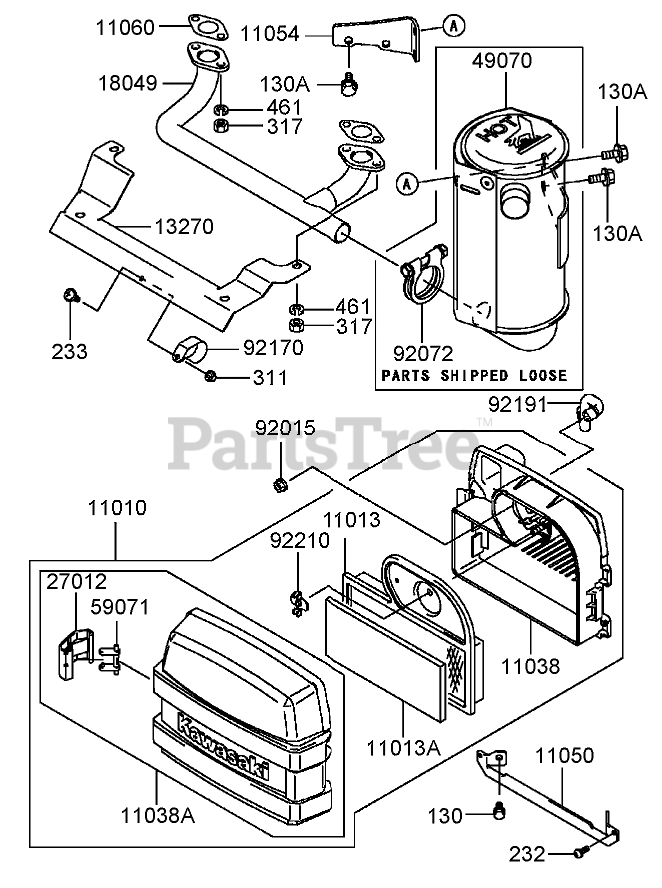

AIR FILTER AND MUFFLER ASSEMBLY KAWASAKI FH580V-CS13-R Parts Diagram

  • Title

11010

Kawasaki 11010-7013

AIR FILTER ASM
(Superseded to 11010-7007)

Note: Obtain parts from www.kawpowerepc.com

$72.99

$

In Stock, Qty 6

0

11013

Kawasaki 11013-7002

Element-Filter, AIR

Note: Obtain parts from www.kawpowerepc.com

$21.99

$

In Stock, Qty 20+

0

11013A

Kawasaki 11013-7033

ELEMENT-FILTER, AIR
(Superseded to 11013-7001)

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

In Stock, Qty 20+

0

11038

Kawasaki 11038-7006

AIR FILTER CASE ASM
(Superseded to 11038-7003)

Note: Obtain parts from www.kawpowerepc.com

$70.99

$

Usually ships in 2-5 days

0

11038A

Kawasaki 11038-7013

Air Filter Case ASM
(Superseded to 11038-7011)

Note: Obtain parts from www.kawpowerepc.com

$67.99

$

In Stock, only 2 left!

0

11050

Kawasaki 11050-7006

Bracket

Note: Obtain parts from www.kawpowerepc.com

$9.49

$

Usually ships in 2-5 days

0

11054

Kawasaki 11054-7002-9H

BRACKET

Note: Obtain parts from www.kawpowerepc.com

$9.99

$

In Stock, only 1 left!

0

11060

Kawasaki 11060-7021

GASKET-MUFFLER
(Superseded to 11060-7006)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 20+

0

13270

Kawasaki 13270-7008

Plate

Note: Obtain parts from www.kawpowerepc.com

$17.99

$

Usually ships in 2-5 days

0

18049

Kawasaki 18049-7001

Pipe-Exhaust

Note: Obtain parts from www.kawpowerepc.com

$139.99

$

Usually ships in 2-5 days

0

27012

Kawasaki 27012-7003

HOOK

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, Qty 15

0

49070

Kawasaki 49070-7021

MUFFLER

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

59071

Kawasaki 59071-7017

JOINT

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, only 3 left!

0

92015

Kawasaki 92015-1193

Nut
(Superseded to 92015-1367)

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 20+

0

92072

Kawasaki 92072-7012

BAND

Note: Obtain parts from www.kawpowerepc.com

$14.99

$

In Stock, Qty 9

0

92170

Kawasaki 92170-7002

Clamp

Note: Obtain parts from www.kawpowerepc.com

$3.99

$

In Stock, only 2 left!

0

92191

Kawasaki 92191-7001

Tube

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92210

Kawasaki 92210-7004

NUT (M6)

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 20+

0

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0816

Bolt-Flanged (8X16)
(Superseded to 130AA0816)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

232

Kawasaki 232B0514

SCREW-PAN
(Superseded to 232AA0514)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, only 3 left!

0

233

Kawasaki 233B0416

SCREW (4X16)
(Superseded to 233AA0416)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 6

0

311

Toro 311B0400

Nut-Hex (4mm)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

317

Kawasaki 317R0800

NUT-HEX, SMALL (8mm)
(Superseded to 92210-0887)

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

In Stock, Qty 16

0

461

Toro 461F0800

Washer-Spring (8mm)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable
