74806 (ZX 525) - Toro 52" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) 52IN DECK BELT DRIVE ASSEMBLY Parts Diagram

52" TimeCutter Zero-Turn Mower

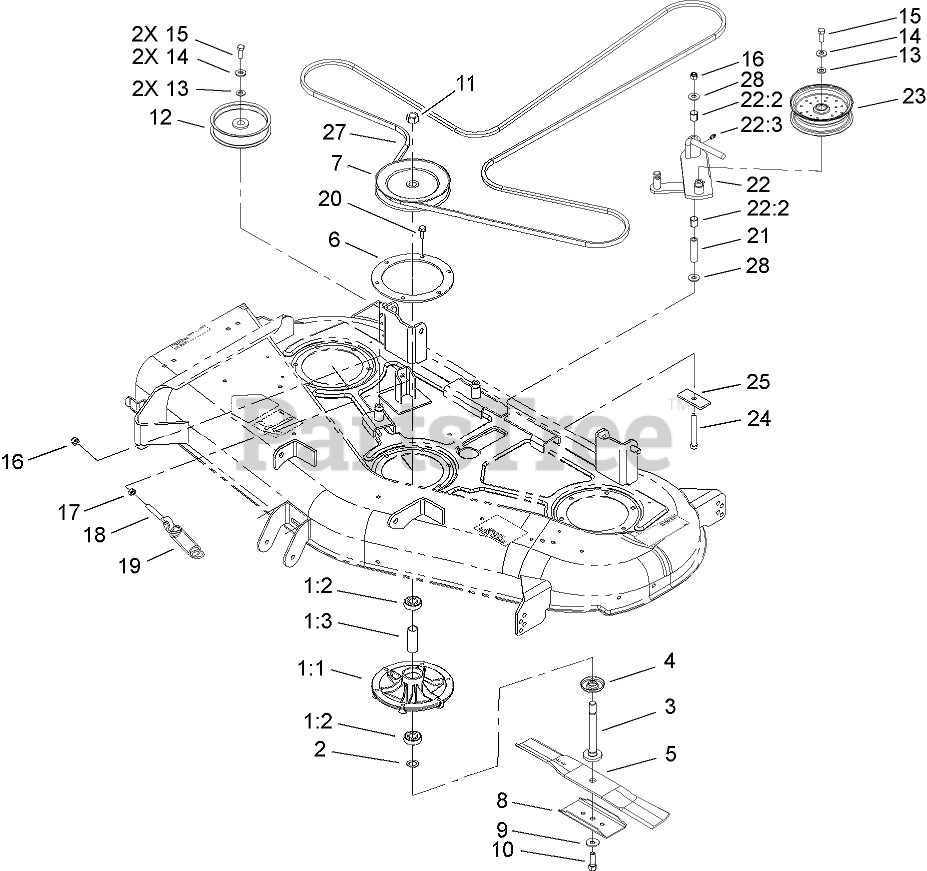

52IN DECK BELT DRIVE ASSEMBLY Parts Diagram

  • Title
1:1

Toro 107-1739

HOUSING-SPINDLE

$93.99

$

In Stock, only 1 left!

0

1:2

Toro 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 18

0

1:3

Toro 62-3661

SPACER

$15.99

$

In Stock, Qty 15

0

1

Spindle ASM

Note: Not illustrated

$

$

Not available

2

Toro 80-4380

SPACER

$6.99

$

In Stock, Qty 12

0

3

Toro 80-4341

SHAFT-SPINDLE

$50.99

$

In Stock, only 1 left!

0

4

Toro 80-4360

SHIELD-BEARING

$18.99

$

In Stock, Qty 13

0

$38.99

$

In Stock, Qty 5

0

6

Toro 107-1743-03

RING-SUPPORT, DECK

$29.99

$

Usually ships in 3-6 days

0

7

Toro 107-1740

PULLEY AND HUB ASM

$146.99

$

In Stock, only 1 left!

0

8

Toro 80-0510-03

STIFFENER-BLADE

$19.99

$

In Stock, Qty 7

0

9

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

10

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

11

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

12

Toro 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 6

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

14

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

15

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

16

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

17

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

18

Toro 94-2547

BOLT-EYE

$27.99

$

Usually ships in 3-6 days

0

19

Toro 105-6992

SPRING-EXTENSION

$31.99

$

Usually ships in 3-6 days

0

20

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

21

Toro 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 18

0

22

Toro 105-7010

IDLER ARM ASM

$

$

Not available

22:2

Toro 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

22:3

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

23

Toro 99-8912

PULLEY-IDLER, FLAT
(Superseded to 116-4669)

$79.99

$

In Stock, Qty 5

0

24

Toro 1-800805

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

25

Toro 104-8037-03

PLATE-BOLT, RETAINER

$6.49

$

Usually ships in 3-6 days

0

27

Toro 106-2217

BELT-V

$151.99

$

Usually ships in 3-6 days

0

28

Toro 1-809107

WASHER-HARDENED

$5.49

$

In Stock, only 2 left!

0
