74806 (ZX 525) - Toro 52" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) 52IN DECK ASSEMBLY Parts Diagram

52" TimeCutter Zero-Turn Mower

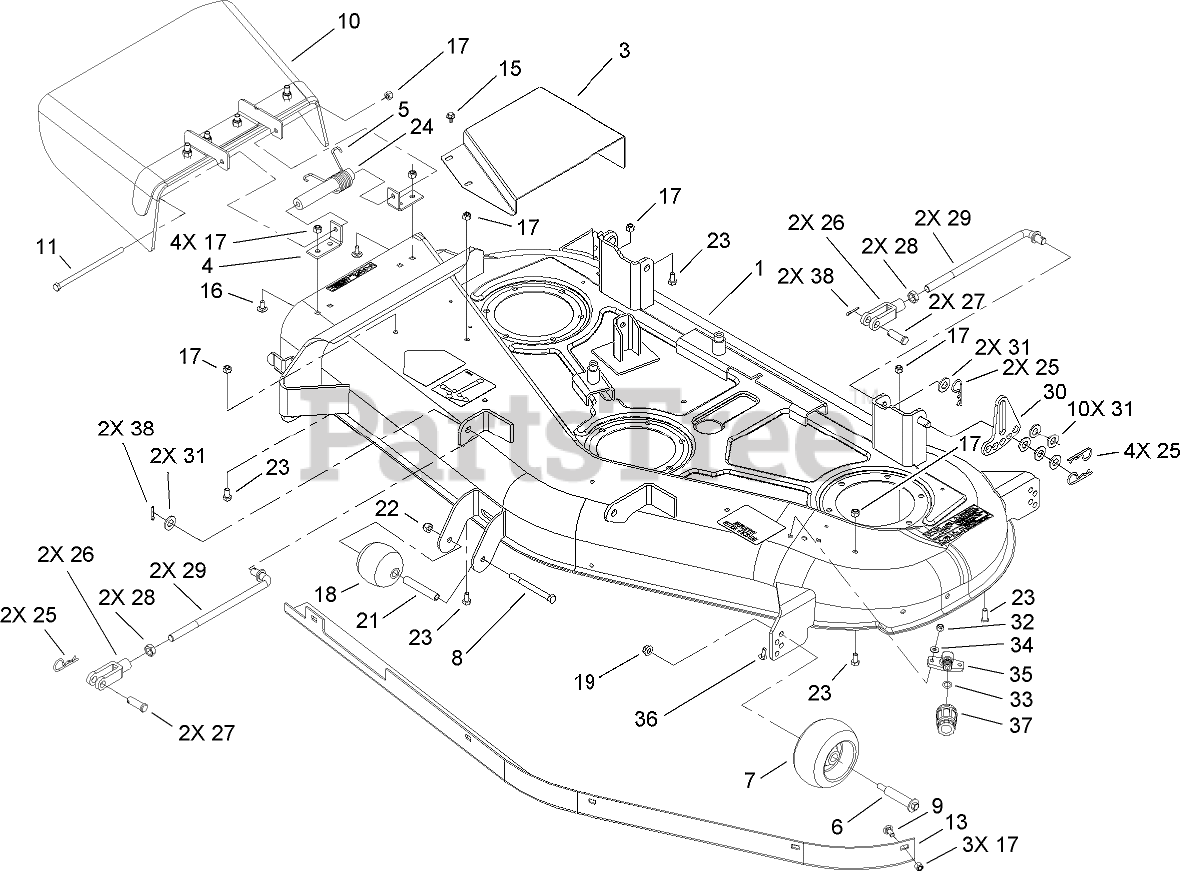

52IN DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 112-9832

52 INCH DECK ASM

$

$

Not available

2

Toro 108-8532-03

COVER-BELT, LH

Note: Not illustrated

$96.99

$

Usually ships in 3-6 days

0

3

Toro 108-8531-03

COVER-BELT, RH

$

$

Not available

4

Toro 108-6196-03

BRACKET-PIVOT, DEFLECTOR

$19.99

$

In Stock, only 1 left!

0

5

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

6

Toro 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 12

0

7

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

8

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 7

0

9

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

10

Toro 108-8591

DEFLECTOR ASM

$237.99

$

Usually ships in 3-6 days

0

11

Toro 108-8539

BOLT-HH

$16.99

$

Usually ships in 3-6 days

0

13

Toro 67-2150-03

BAFFLE

$422.99

$

Usually ships in 3-6 days

0

15

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

16

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

19

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

21

Toro 94-2500

TUBE-SPACER, WHEEL

$4.49

$

Usually ships in 3-6 days

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

23

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

24

Toro 108-7159

SPACER-DEFLECTOR

$11.99

$

Usually ships in 3-6 days

0

25

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

26

Toro 100-7338

CLEVIS

$60.99

$

In Stock, only 3 left!

0

27

Toro 104-3634

PIN-CLEVIS

$20.99

$

In Stock, only 2 left!

0

28

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 20+

0

29

Toro 104-8047

ROD-TRUNION
(Superseded to 131-3945)

$43.99

$

In Stock, only 2 left!

0

30

Toro 104-3699-01

LINK-HOC, ADJUSTING

$72.99

$

In Stock, only 2 left!

0

31

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

33

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

34

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

36

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

37

Toro 95-3270

CONNECTOR-HOSE

$23.99

$

Usually ships in 3-6 days

0

38

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0
