74805 (Z 355) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 240000001 - 240999999) (2004) PTO / HYDRO DRIVE ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

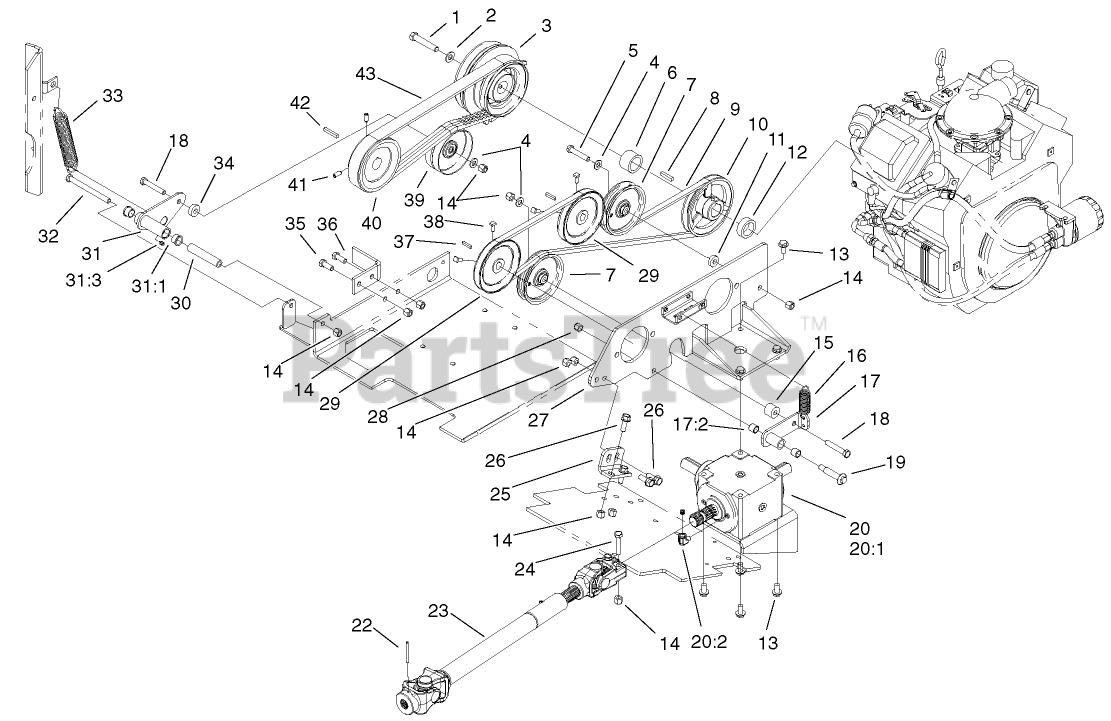

PTO / HYDRO DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro 3212-10

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

2

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

3

Toro 104-7756

CLUTCH

$1650.99

$

Usually ships in 3-6 days

0

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 94-4689

SPACER-SHAFT, ENGINE

$

$

Not available

7

Toro 93-1622

PULLEY-IDLER

$42.99

$

In Stock, only 2 left!

0

8

Toro 13-2840

KEY-SQUARE

$1.99

$

In Stock, Qty 5

0

9

Toro 94-4607

V-BELT

$65.99

$

In Stock, only 1 left!

0

10

Toro 94-4628

PULLEY-ENGINE

$

$

Not available

11

Toro 9202204

Washer
(Superseded to 920220)

$3.99

$

Usually ships in 3-6 days

0

12

Toro 94-4688

SPACER-SHAFT, ENGINE

$

$

Not available

13

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 94-4792

SPACER-ARM, IDLER

$

$

Not available

16

Toro 94-9599

SPRING-EXTENSION

$21.99

$

Usually ships in 3-6 days

0

17

Toro 95-1950

IDLER ARM ASM

$

$

Not available

17:2

Toro 256-154

BUSHING

$12.99

$

Usually ships in 3-6 days

0

18

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

19

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

20

Toro 104-2433

GEARBOX ASM

$3071.99

$

Usually ships in 3-6 days

0

20:1

Gearbox-PTO

Note: Not serviced separately

$

$

Not available

20:2

Toro 2811-7

ELBOW

$40.99

$

Usually ships in 3-6 days

0

22

Toro 32121-48

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

23

Toro 94-4722

SHAFT-DRIVE

$

$

Not available

24

Toro 323-19

SCREW-HH

$1.99

$

In Stock, Qty 11

0

25

Toro 94-4787-03

MOUNT-PLATE, PUMP

$

$

Not available

26

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

27

Toro 104-7785-03

PUMP MOUNT ASM

$

$

Not available

28

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

29

Toro 80-8170

PULLEY-PUMP, TRACTION

$98.99

$

Usually ships in 3-6 days

0

30

Toro 100-5837

SPACER-IDLER

$

$

Not available

31

Toro 100-5840

IDLER ARM ASM

$

$

Not available

31:1

Toro 109859

BUSHING

$15.99

$

Usually ships in 3-6 days

0

31:3

Toro 302-58

FITTING-STRAIGHT

$1.99

$

Usually ships in 3-6 days

0

32

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

33

Toro 104-7794

SPRING-EXTENSION

$30.99

$

Usually ships in 3-6 days

0

34

Toro 94-4685

SPACER-IDLER

$25.99

$

Usually ships in 3-6 days

0

35

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

36

Toro 98-1301-03

STOP-CLUTCH

$

$

Not available

37

Toro 80-6090

KEY-PUMP

$9.49

$

In Stock, only 1 left!

0

38

Toro 3241-5

SCREW-SET

$2.49

$

Usually ships in 3-6 days

0

39

Toro 104-7791

PULLEY-FLAT

$

$

Not available

40

Toro 94-4629

PULLEY-CLUTCH

$367.99

$

Usually ships in 3-6 days

0

41

Toro 3246-6

SCREW-SET, HSH

$7.49

$

Usually ships in 3-6 days

0

42

Toro 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 11

0

43

Toro 99-0219

BELT-V, BANDED

$253.99

$

Usually ships in 3-6 days

0
