74805 (Z 355) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 240000001 - 240999999) (2004) HYDRAULIC #2 ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

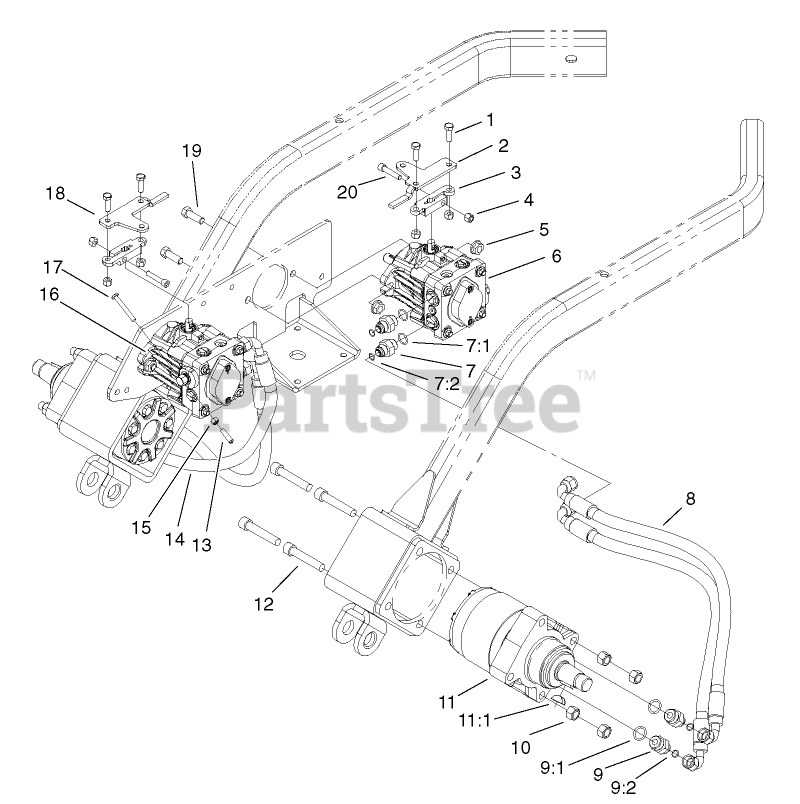

HYDRAULIC #2 ASSEMBLY Parts Diagram

  • Title
1

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2

Toro 94-4702-03

PLATE-CONTROL, LEFT

$

$

Not available

3

Toro 94-4678

ARM-CONTROL, PUMP

$69.99

$

Usually ships in 3-6 days

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 32128-42

NUT-HF

$1.49

$

In Stock, only 3 left!

0

6

Toro 104-7750

PUMP-HYD

$

$

Not available

7

Toro 1-603990

FITTING-STRAIGHT

$18.99

$

In Stock, Qty 15

0

7:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

7:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

8

Toro 104-7845

HYD HOSE ASM

$

$

Not available

9

Toro 1-603991

Fitting-Straight

$20.99

$

In Stock, only 2 left!

0

9:1

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 9

0

9:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

10

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 99-0206

MOTOR-WHEEL, HYD

$

$

Not available

11:1

Toro 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 14

0

12

Toro 3274-93

SCREW-HSH

$4.49

$

Usually ships in 3-6 days

0

13

Toro 1-613073

GRIP-VALVE, DUMP

$5.49

$

Usually ships in 3-6 days

0

14

Toro 104-7846

HYD HOSE ASM

$

$

Not available

15

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

16

Toro 104-7751

PUMP-HYD

$

$

Not available

17

$2.99

$

Usually ships in 3-6 days

0

18

Toro 94-4701-03

PLATE-CONTROL, RIGHT

$

$

Not available

19

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

20

Toro 3274-83

SCREW-HSH

$3.49

$

In Stock, only 2 left!

0
