74805 (Z 355) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 230000001 - 230999999) (2003) TRACTION FRAME ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

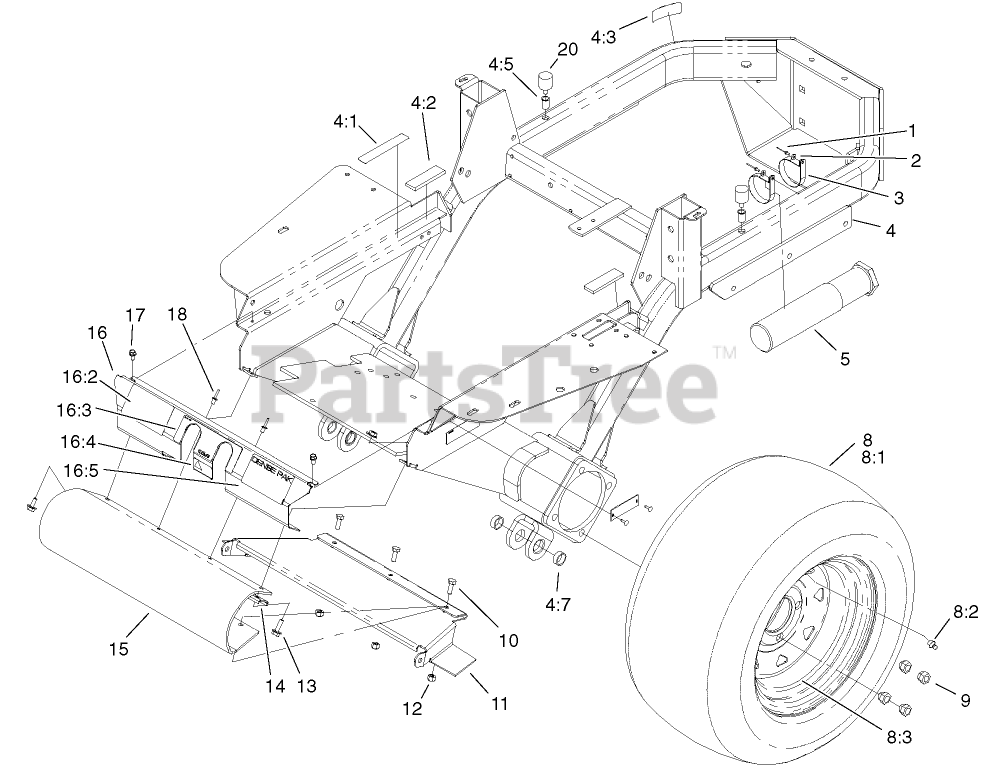

TRACTION FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 3269-8

RIVET-BLIND

$0.99

$

Usually ships in 3-6 days

0

2

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

3

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

4

Toro 104-7780

FRAME ASM

$4761.99

$

Usually ships in 3-6 days

0

4:1

Toro 98-4361

DECAL-WARNING

$28.99

$

In Stock, only 1 left!

0

4:2

Toro 52-5260

PAD-RUBBER

$18.99

$

Usually ships in 3-6 days

0

4:3

Toro 93-9198

DECAL-HOT SURFACE

$

$

Not available

4:5

Toro 32148-8

INSERT-THREADED

$3.49

$

Usually ships in 3-6 days

0

4:7

Toro 100-2442

BUSHING

$

$

Not available

5

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

8

Toro 94-9381

Tire And Wheel ASM

$

$

Not available

8:1

Toro 94-9388

Tire
(Superseded to 87-3290)

$

$

Not available

8:2

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

8:3

Toro 94-9385

WHEEL

$

$

Not available

9

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

10

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 100-9614-01

COVER-DRIVESHAFT

$

$

Not available

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 32144-44

SCREW-HWH, THREAD ROLL

$1.49

$

In Stock, only 2 left!

0

14

Toro 100-9620-03

BRACKET-GUARD

$

$

Not available

15

Toro 100-9619

GUARD-FOOTREST

$

$

Not available

16

Toro 104-2401

COVER PLATE ASM

$

$

Not available

16:2

Toro 100-7790

DECAL - Z355

$

$

Not available

16:3

Toro 98-1313

DECAL - OPERATION

$

$

Not available

16:4

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0

16:5

Toro 104-5106

DECAL-PAK, DENSE

$

$

Not available

17

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

18

Toro 3290-412

RIVET-BLIND

$3.49

$

In Stock, only 4 left!

0

20

Toro 104-2442

BUMPER-RUBBER

$43.99

$

Usually ships in 3-6 days

0
