74805 (Z 355) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 230000001 - 230999999) (2003) DECK ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

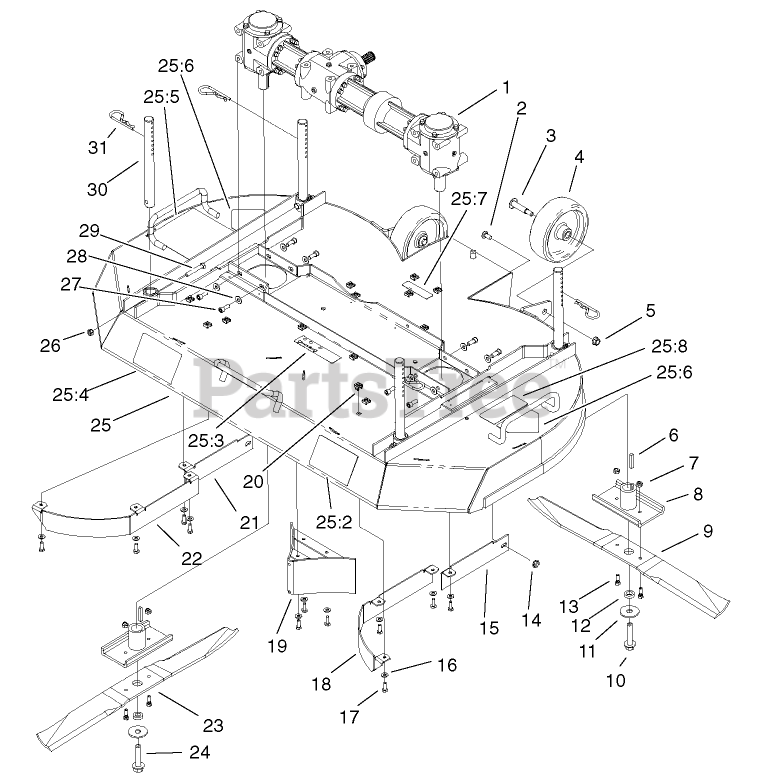

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 104-2446

Kit-Gearbox
(Superseded to 105-6172)

$3748.99

$

Usually ships in 3-6 days

0

2

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

3

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 15

0

4

Toro 95-4102

WHEEL

$75.99

$

In Stock, Qty 7

0

5

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

6

Toro 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 11

0

7

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 4 left!

0

8

Toro 98-0810-01

BLADE RETAINER ASM

$

$

Not available

9

Toro 99-4942

BLADE-25IN, LH

$61.99

$

Usually ships in 3-6 days

0

10

Toro 92-5816

BOLT-BLADE

$7.49

$

In Stock, only 2 left!

0

11

Toro 86-1990

WASHER-THRUST

$3.99

$

In Stock, only 4 left!

0

12

Toro 99-0217

SPACER

$10.99

$

In Stock, only 2 left!

0

13

Toro 99-0283

BOLT-SHEAR

$7.99

$

In Stock, Qty 15

0

14

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

15

Toro 104-0388-01

BRACKET-DISCHARGE, LH

$144.99

$

Usually ships in 3-6 days

0

16

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 98-3015-01

BAFFLE-LH

$

$

Not available

19

Toro 100-9655-01

CENTER BAFFLE ASM

$

$

Not available

20

Toro 32115-5

NUT-RETAINED

$6.49

$

Usually ships in 3-6 days

0

21

Toro 104-0389-01

BRACKET-DISCHARGE, RH

$144.99

$

Usually ships in 3-6 days

0

22

Toro 98-3016-01

BAFFLE-RH

$

$

Not available

23

Toro 99-4941

BLADE-25IN, RH

$61.99

$

Usually ships in 3-6 days

0

24

Toro 104-2444

BOLT-BLADE, LH THREAD

$42.99

$

In Stock, only 1 left!

0

25

Toro 104-0371

DECK ASM

$4698.99

$

Usually ships in 3-6 days

0

25:2

Toro 100-7788

DECAL-DDS

$

$

Not available

25:3

Toro 100-5809

DECAL-TRANSMISSION FLUID

$

$

Not available

25:4

Toro 104-0354

DECAL - 48

$

$

Not available

25:5

Toro 98-1304

DECAL-DANGER

$

$

Not available

25:6

Toro 43-8480

DECAL-DANGER

$6.49

$

In Stock, Qty 6

0

25:7

Toro 80-8760

DECAL-DANGER

$15.99

$

Usually ships in 3-6 days

0

25:8

Toro 68-8340

DECAL-TORQUE

$19.99

$

In Stock, only 1 left!

0

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

27

Toro 104-0356

SCREW-HSH

$14.99

$

Usually ships in 3-6 days

0

28

Toro 100-2400

WASHER

$3.99

$

Usually ships in 3-6 days

0

29

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

30

Toro 100-2393

PIN-DECK

$108.99

$

Usually ships in 3-6 days

0

31

Toro 3290-256

PIN-HAIR

$8.49

$

In Stock, Qty 9

0
