74805 (Z 355) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 220000001 - 220999999) (2002) BLOWER ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

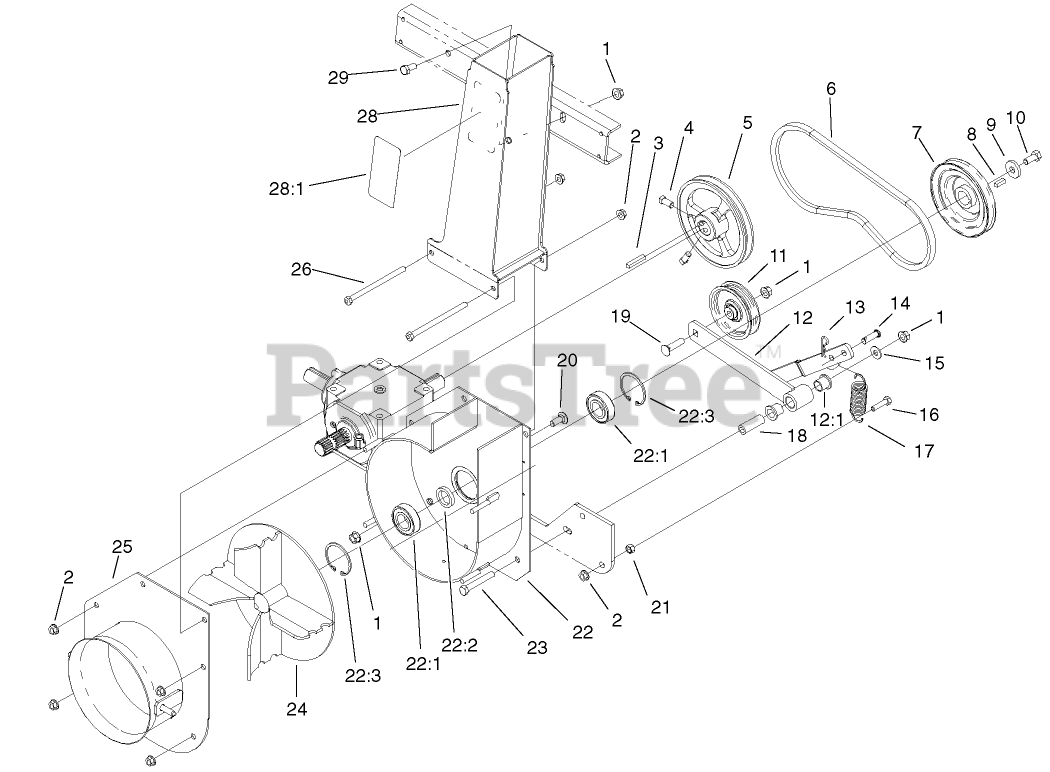

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

2

Toro 32128-25

NUT-HF

$3.99

$

In Stock, Qty 7

0

3

Toro 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 9

0

4

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, Qty 5

0

5

Toro 94-4630

PULLEY-GEARBOX

$

$

Not available

6

Toro 19-2650

V-BELT

$20.99

$

In Stock, only 1 left!

0

7

Toro 99-0287

Pulley-Impeller
(Superseded to 99-0287-03)

$

$

Not available

8

Toro 20-9540

KEY-SQUARE

$6.99

$

Usually ships in 3-6 days

0

9

Toro 65-8680

WASHER-THRUST, PLAIN

$54.99

$

Usually ships in 3-6 days

0

10

Toro 323-5

SCREW-HH

$1.49

$

In Stock, Qty 10

0

11

Toro 56-4920

PULLEY-IDLER

$94.99

$

Usually ships in 3-6 days

0

12

Toro 105-1626

IDLER ARM ASM

$

$

Not available

12:1

Toro 256-90

BUSHING-FLANGE

$4.49

$

In Stock, only 3 left!

0

13

Toro 3290-467

PIN-HAIR

$0.99

$

In Stock, Qty 5

0

14

Toro 283-2

PIN-CLEVIS

$14.99

$

In Stock, only 1 left!

0

15

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

17

Toro 67-1440

SPRING-EXTENSION

$18.99

$

Usually ships in 3-6 days

0

18

Toro 95-6448

SPACER

$6.49

$

Usually ships in 3-6 days

0

19

Toro 3231-4

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

20

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

21

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

22

Toro 105-1627

BLOWER HOUSING ASM

$

$

Not available

22:1

Toro 251-82

BEARING-BALL

$21.99

$

In Stock, Qty 6

0

22:2

Toro 95-6427

SPACER-BEARING

$15.99

$

Usually ships in 3-6 days

0

22:3

Toro 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 20+

0

23

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

24

Toro 99-0296-03

IMPELLER ASM

$700.99

$

Usually ships in 3-6 days

0

25

Toro 100-7795-03

COVER ASM

$

$

Not available

26

Toro 322-29

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

28

Toro 105-1661

IMPELLER CHUTE ASM

$

$

Not available

28:1

Toro 79-0360

DECAL-DANGER

$

$

Not available

29

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 14

0
