74805 (Z 355) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 210000001 - 210999999) (2001) OIL PAN/LUBRICATION ASSEMBLY KOHLER ENGINE CH25S PS-68670 Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

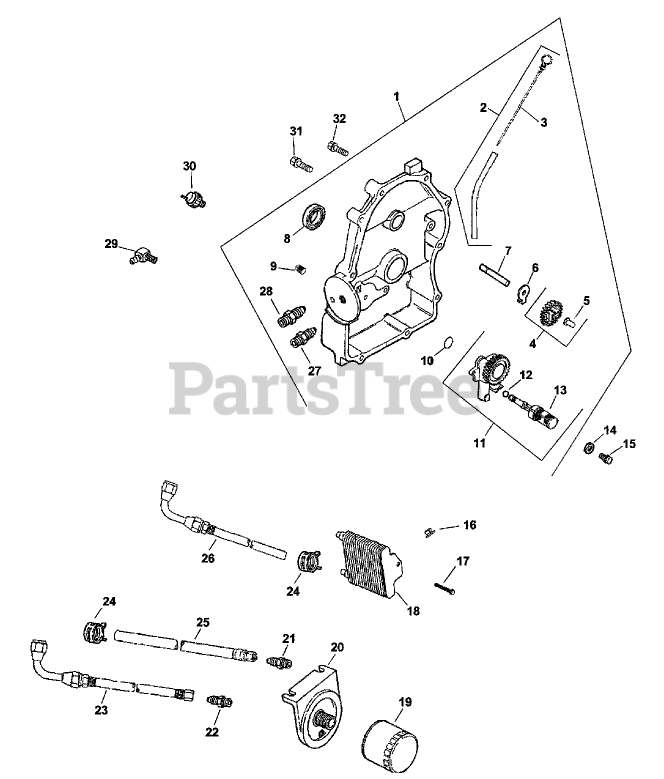

OIL PAN/LUBRICATION ASSEMBLY KOHLER ENGINE CH25S PS-68670 Parts Diagram

  • Title

1

Kohler 24 009 96-S

Kit-Plate, Closure (Incl. Ref.# 2-13, 27, 28)
(Superseded to 24 009 218-S)

$695.99

$

Usually ships in 2-5 days

0

2

Kohler 24 755 121-S

Kit-Dipstick and Tube (Incl. Ref. # 3)

$35.99

$

In Stock, Qty 6

0

3

Kohler 24 038 10-S

Dipstick

$12.99

$

In Stock, only 4 left!

0

4

Kohler 24 043 12-S

Kit-governor gear w/ pin (Incl. Ref. # 5)

$68.99

$

In Stock, Qty 9

0

5

Kohler 12 380 01-S

PIN-REGULATING, GOVERNOR

$3.49

$

In Stock, Qty 8

0

6

Toro 54 488 02-S

Tab-Locking

$

$

Currently unavailable

7

Kohler 12 144 02-S

SHAFT-GEAR, GOVERNOR

$4.49

$

In Stock, Qty 8

0

8

Kohler 52 032 08-S

SEAL-OIL (P-T-O END)
(Superseded to 25 032 06-S)

$10.99

$

In Stock, Qty 15

0

9

Kohler 25 139 60-S

PLUG-PIPE, COUNTERSUNK (1/8)

$3.49

$

In Stock, only 2 left!

0

10

Kohler 24 153 08-S

O-Ring

$6.99

$

In Stock, only 2 left!

0

11

Kohler 24 393 10-S

Oil Pump ASM (Incl. Ref. # 12 & 13)
(Superseded to 24 393 37-S)

$

$

Not available

12

Kohler 24 153 01-S

O-RING

$2.49

$

In Stock, Qty 8

0

13

Kohler 24 381 04-S

TUBE-PICK UP, OIL

$34.99

$

In Stock, only 1 left!

0

14

Kohler M-631005-S

WASHER-FLAT (6 MM)

$2.49

$

In Stock, only 1 left!

0

15

Kohler M-645025-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X25)
(Superseded to 25 086 395-S)

$2.49

$

In Stock, only 2 left!

0

16

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 7

0

17

Kohler 24 086 12-S

SCREW-TAP (M6X1.7X18)

$

$

Not available

18

Kohler 24 594 12-S

Cooler-Oil (Includes 20, 21)

$

$

Not available

19

Kohler 52 050 02-S

Filter-Oil
(Superseded to 52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

20

Kohler 25 029 01-S

Adapter-Oil Filter, Remote

$123.99

$

Usually ships in 2-5 days

0

21

Kohler 52 136 02-S

Nipple-Metallic

$10.99

$

Usually ships in 2-5 days

0

22

Kohler 52 155 03-S

Connector-Hose

$9.99

$

Usually ships in 2-5 days

0

23

Kohler 24 326 16-S

Hose-Oil (lower adapter to upper Closure Plate)
(Superseded to 24 326 17-S)

$16.99

$

In Stock, only 2 left!

0

24

Kohler 24 237 03-S

Clamp-Hose
(Superseded to 24 237 10-S)

$4.99

$

In Stock, only 3 left!

0

25

Kohler 24 326 60-S

Hose-Oil

$25.99

$

Usually ships in 2-5 days

0

26

Kohler 24 326 33-S

Hose-Oil

$65.99

$

In Stock, only 1 left!

0

27

Kohler 24 294 09-S

Fitting-Straight

$10.99

$

Usually ships in 2-5 days

0

28

Kohler 24 294 08-S

Fitting

$5.99

$

Usually ships in 2-5 days

0

29

Kohler 25 155 02-S

Connector-Hose, 90 Deg

$14.99

$

In Stock, only 1 left!

0

30

Kohler 24 099 03-S

SWITCH-PRESSURE, OIL
(Superseded to 24 755 425-S)

$29.99

$

In Stock, only 1 left!

0

31

Kohler 24 086 16-S

Screw-HF (M8x1.25x45)
(Superseded to 24 086 17-S)

$2.49

$

In Stock, Qty 7

0

32

Kohler 24 086 17-S

SCREW-FLANGE (M8X1.25X45)

$2.49

$

In Stock, Qty 7

0

Kohler 24 113 25-S

DECAL-COOLER, OIL

Note: Not illustrated

$

$

Not available
