74805 (Z 355) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 210000001 - 210999999) (2001) ENGINE INSTALLATION AND FUEL ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

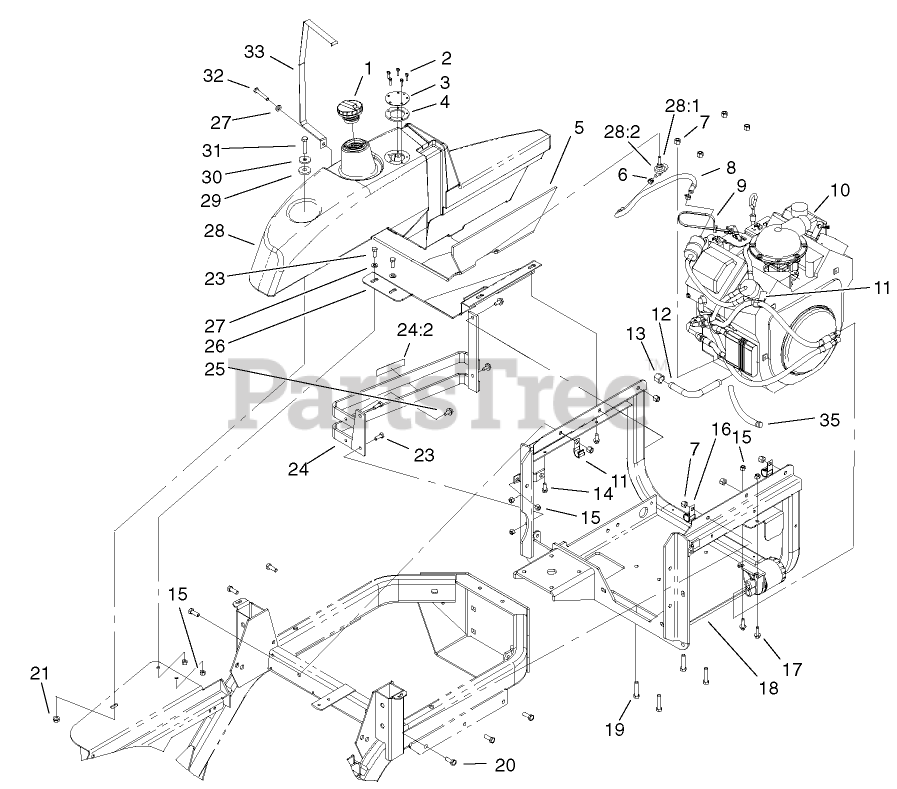

ENGINE INSTALLATION AND FUEL ASSEMBLY Parts Diagram

  • Title
1

Toro 93-3101

CAP-FUEL
(Superseded to 115-5304)

$32.99

$

In Stock, only 1 left!

0

2

Toro 3250-29

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

3

Toro 94-9597

COVER-OPENING, FUEL TANK

$

$

Not available

4

Toro 62-7650

GASKET

$4.49

$

Usually ships in 3-6 days

0

5

Toro 98-1319

FOAM-TANK, FUEL

$

$

Not available

6

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

7

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

8

Toro 98-0976

HOSE-FUEL
(Superseded to 109-0299)

$13.99

$

Usually ships in 3-6 days

0

9

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

10

Engine-Kohler, CH25S PS-68670

$

$

Not available

11

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

12

Toro 94-9499

TUBE-DRAIN, OIL

$

$

Not available

13

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

14

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 94-9580

CLAMP-J

$

$

Not available

17

Toro 3234-17

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

18

Toro 100-5844-03

ENGINE FRAME ASM

$

$

Not available

19

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

21

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 98-1995

BUMPER ASM

$230.99

$

Usually ships in 3-6 days

0

24:2

Toro 93-9198

DECAL-HOT SURFACE

$

$

Not available

25

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

26

Toro 94-4798-01

PLATE-SUPPORT, TANK

$

$

Not available

27

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

28

Toro 94-9553

FUEL TANK ASM
(Superseded to 107-1871)

$

$

Not available

28:1

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 10

0

28:2

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

29

Toro 240-11

BUSHING-FLANGE

$6.49

$

Usually ships in 3-6 days

0

30

Toro 63-8410

WASHER

$1.99

$

In Stock, Qty 13

0

31

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

33

Toro 94-4799-03

STRAP-TANK, FUEL

$

$

Not available

35

Toro 105-1663

TUBE-CONVOLUTED

$

$

Not available
