74804 TE (Z 350) - Toro 122cm Z Master Zero-Turn Mower and Bagger (SN: 220000001 - 220999999) (2002) TAIL WHEEL AND BUMPER ASSEMBLY Parts Diagram

122cm Z Master Zero-Turn Mower and Bagger

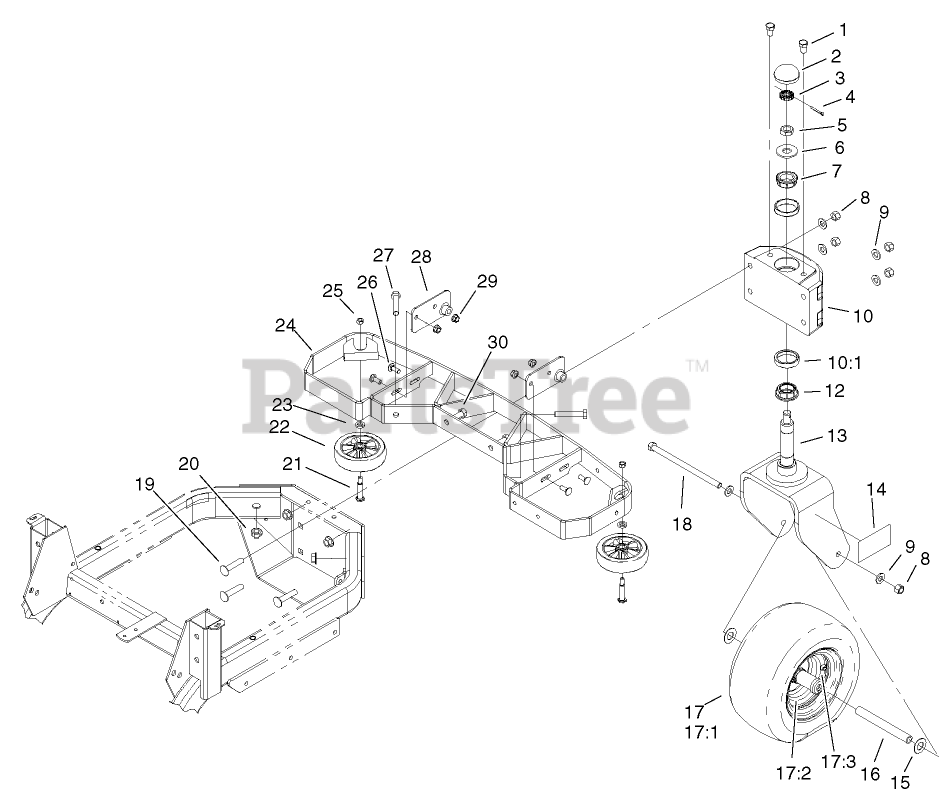

TAIL WHEEL AND BUMPER ASSEMBLY Parts Diagram

  • Title

1

Toro 325-2

SCREW-HH

$2.99

$

In Stock, only 2 left!

0

2

Toro 94-4665

DUSTCAP

$28.99

$

Usually ships in 3-6 days

0

3

Toro 93-0307

NUT-LOCK, RETAINER

$3.99

$

Usually ships in 3-6 days

0

4

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

5

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 5

0

6

Toro 3256-8

WASHER-FLAT

$3.99

$

In Stock, Qty 15

0

7

Toro 254-62

BEARING-ROLLER, CONE

$13.99

$

Usually ships in 3-6 days

0

8

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 105-1609

SPINDLE HOUSING ASM

$755.99

$

Usually ships in 3-6 days

0

10:1

Toro 254-61

CUP-BEARING, ROLLER
(Superseded to 115-9471)

$7.49

$

Usually ships in 3-6 days

0

12

Toro 254-70

BEARING-CONE
(Superseded to 115-9472)

$26.99

$

Usually ships in 3-6 days

0

13

Toro 94-4647-01

CASTER FORK ASM

$

$

Not available

14

Toro 100-7789

DECAL - Z350

$

$

Not available

15

Toro 3256-39

WASHER-FLAT

$1.49

$

In Stock, only 3 left!

0

16

Toro 94-4753

TUBE-SPACER, CASTOR

$40.99

$

Usually ships in 3-6 days

0

17

Toro 98-4352

Tire And Wheel ASM

$394.99

$

Usually ships in 3-6 days

0

17:1

Toro 94-9384

TIRE

$160.99

$

Usually ships in 3-6 days

0

17:2

Toro 98-4351

WHEEL ASM

$

$

Not available

17:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 17

0

17:2:1

Toro 99-0246

WASHER-STOP

Note: Not illustrated

$19.99

$

Usually ships in 3-6 days

0

17:2:2

Toro 99-0247

BEARING-ROLLER

Note: Not illustrated

$70.99

$

Usually ships in 3-6 days

0

17:2:3

Toro 99-0248

SEAL-FELT

Note: Not illustrated

$9.99

$

Usually ships in 3-6 days

0

17:2:4

Toro 99-0249

CAP-END

Note: Not illustrated

$

$

Not available

18

Toro 325-24

SCREW-HH

$14.99

$

In Stock, only 2 left!

0

19

Toro 3233-27

SCREW-CARR

$12.99

$

Usually ships in 3-6 days

0

20

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

21

Toro 5188

BOLT-SHOULDER

$5.99

$

In Stock, Qty 6

0

22

Toro 109375

WHEEL ASM

$

$

Not available

23

Toro 9202424

Spacer
(Superseded to 920242)

$6.49

$

Usually ships in 3-6 days

0

24

Toro 104-2434-03

BUMPER ASM

$

$

Not available

25

Toro 32153-2

NUT-LOCK, SIDE

$0.99

$

In Stock, Qty 14

0

26

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 18

0

27

Toro 325-11

SCREW-HH

$2.99

$

In Stock, Qty 7

0

28

Toro 104-2430-03

PIVOT ASM

$82.99

$

Usually ships in 3-6 days

0

29

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

30

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6
