74804 TE (Z 350) - Toro 122cm Z Master Zero-Turn Mower and Bagger (SN: 220000001 - 220999999) (2002) GROUP 3-OIL PAN/LUBRICATION ASSEMBLY KOHLER CH20S PS-64675 Parts Diagram

122cm Z Master Zero-Turn Mower and Bagger

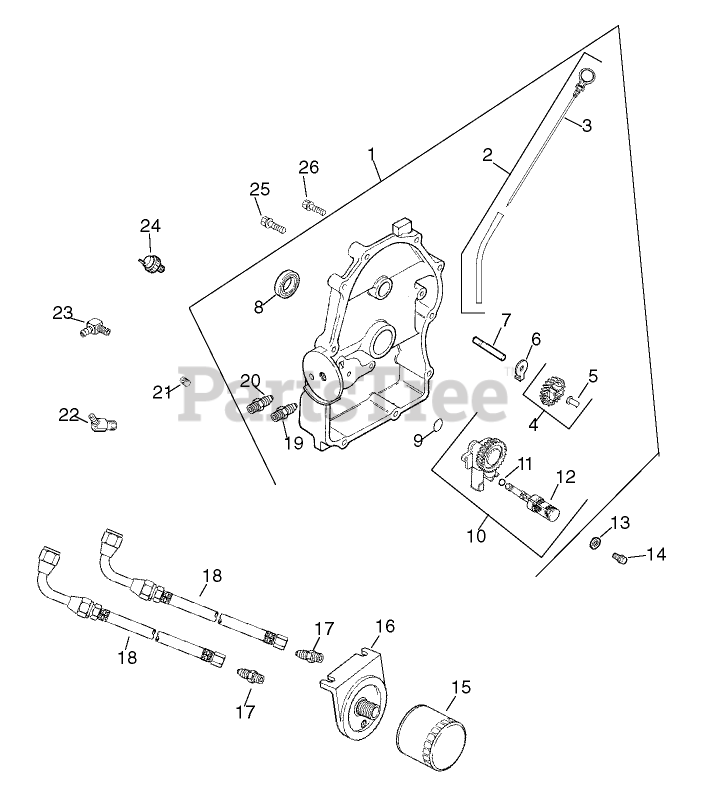

GROUP 3-OIL PAN/LUBRICATION ASSEMBLY KOHLER CH20S PS-64675 Parts Diagram

  • Title

1

Kohler 24 009 96-S

Kit, closure plate (Includes 2-12, 19, 20)
(Superseded to 24 009 218-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$695.99

$

Usually ships in 2-5 days

0

2

Kohler 24 755 121-S

Kit, dipstick & tube (Includes 3)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$35.99

$

In Stock, Qty 6

0

3

Kohler 24 038 10-S

Dipstick

Note: Call PartsTree Customer Service for more information on Kohler Parts

$12.99

$

In Stock, only 4 left!

0

4

Kohler 24 043 12-S

Kit, governor gear w/pin (Includes 5)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$68.99

$

In Stock, Qty 10

0

5

Kohler 12 380 01-S

PIN-REGULATING, GOVERNOR

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 8

0

6

Kohler 52 448 02-S

Tab-Locking
(Superseded to 24 448 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

7

Kohler 12 144 02-S

SHAFT-GEAR, GOVERNOR

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 8

0

8

Kohler 52 032 08-S

SEAL-OIL (P-T-O END)
(Superseded to 25 032 06-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$10.99

$

In Stock, Qty 16

0

9

Kohler 24 153 08-S

O-Ring

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.99

$

In Stock, only 2 left!

0

10

Kohler 24 393 10-S

Oil pump assembly (Includes 11, 12)
(Superseded to 24 393 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

11

Kohler 24 153 01-S

O-RING

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 8

0

12

Kohler 24 381 04-S

TUBE-PICK UP, OIL

Note: Call PartsTree Customer Service for more information on Kohler Parts

$34.99

$

In Stock, only 1 left!

0

13

Kohler M-631005-S

WASHER-FLAT (6 MM)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

14

Kohler M-645025-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X25)
(Superseded to 25 086 395-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

15

Kohler 52 050 02-S

Filter-Oil
(Superseded to 52-050-02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$14.99

$

In Stock, Qty 20+

0

16

Kohler 25 029 01-S

Adapter-Oil Filter, Remote

Note: Call PartsTree Customer Service for more information on Kohler Parts

$123.99

$

Usually ships in 2-5 days

0

17

Kohler 52 155 03-S

Connector-Hose

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.99

$

Usually ships in 2-5 days

0

18

Kohler 24 326 19-S

Hose-Oil

Note: Call PartsTree Customer Service for more information on Kohler Parts

$131.99

$

In Stock, only 1 left!

0

19

Kohler 24 294 09-S

Fitting-Straight

Note: Call PartsTree Customer Service for more information on Kohler Parts

$10.99

$

Usually ships in 2-5 days

0

20

Kohler 24 294 08-S

Fitting

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

Usually ships in 2-5 days

0

21

Kohler 25 139 60-S

PLUG-PIPE, COUNTERSUNK (1/8)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 2 left!

0

22

Kohler 25 155 11-S

Connector (1/4-18 NPT, 1/2-20 SAE 45 deg male flare)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

23

Kohler 25 155 02-S

Connector-Hose, 90 Deg

Note: Call PartsTree Customer Service for more information on Kohler Parts

$14.99

$

In Stock, only 1 left!

0

24

Kohler 24 099 03-S

SWITCH-PRESSURE, OIL
(Superseded to 24 755 425-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$29.99

$

In Stock, only 1 left!

0

25

Kohler 24 086 16-S

Screw-HF (M8x1.25x45)
(Superseded to 24 086 17-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 7

0

26

Kohler 24 086 17-S

SCREW-FLANGE (M8X1.25X45)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 7

0
