74802 (19-52 ZX) - Toro 52" TimeCutter Zero-Turn Mower (SN: 240000159 - 240999999) (2004) PISTON AND CRANKSHAFT ASSEMBLY KAWASAKI FH580V-AS13 Parts Diagram

52" TimeCutter Zero-Turn Mower

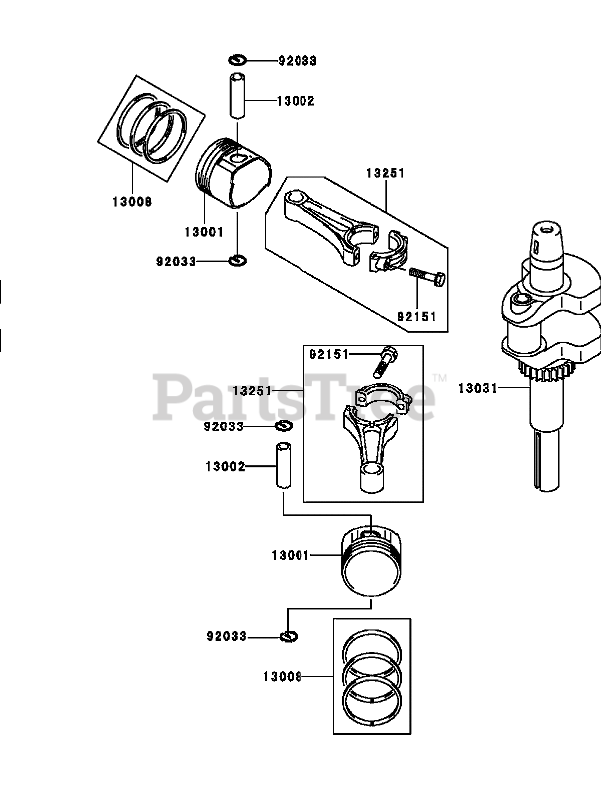

PISTON AND CRANKSHAFT ASSEMBLY KAWASAKI FH580V-AS13 Parts Diagram

  • Title
13001

Kawasaki 13001-7010

Piston-Engine

Note: Obtain parts from your local Kawasaki dealer.

$79.99

$

In Stock, only 3 left!

0

13002

Kawasaki 13002-7001

Pin-Piston

Note: Obtain parts from your local Kawasaki dealer.

$4.99

$

In Stock, Qty 10

0

13008

Kawasaki 13008-6060

PISTON RING SET

Note: Obtain parts from your local Kawasaki dealer.

$37.99

$

In Stock, Qty 12

0

13031

Toro 13031-7036

Crankshaft

Note: Obtain parts from your local Kawasaki dealer.

$

$

Currently unavailable

13251

Toro 13251-7010

CONNECTING ROD ASM

Note: Obtain parts from your local Kawasaki dealer.

$

$

Currently unavailable

92033

Kawasaki 92033-7005

Ring-Snap

Note: Obtain parts from your local Kawasaki dealer.

$0.99

$

In Stock, Qty 7

0

92151

Kawasaki 92151-7017

BOLT (6X35)
(Superseded to 921542842)

Note: Obtain parts from your local Kawasaki dealer.

$1.49

$

In Stock, Qty 20+

0
